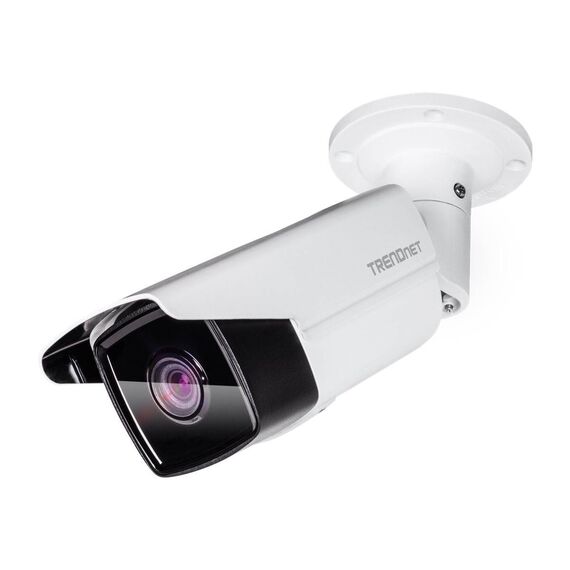

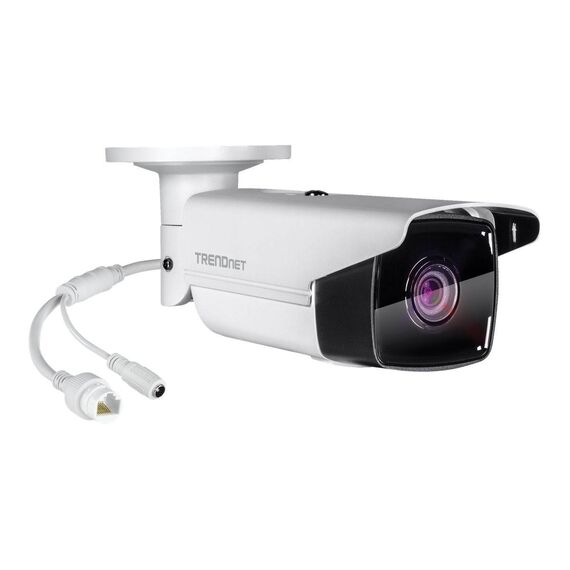

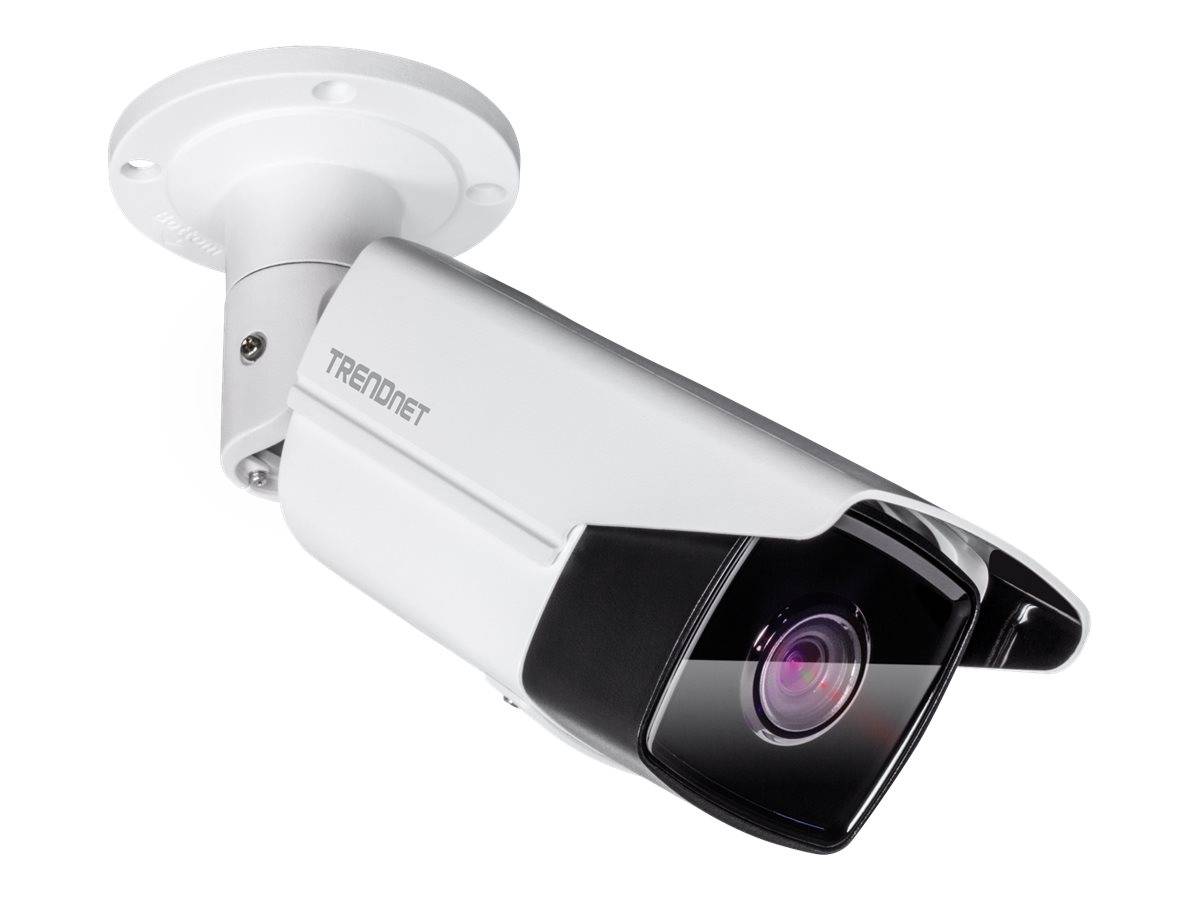

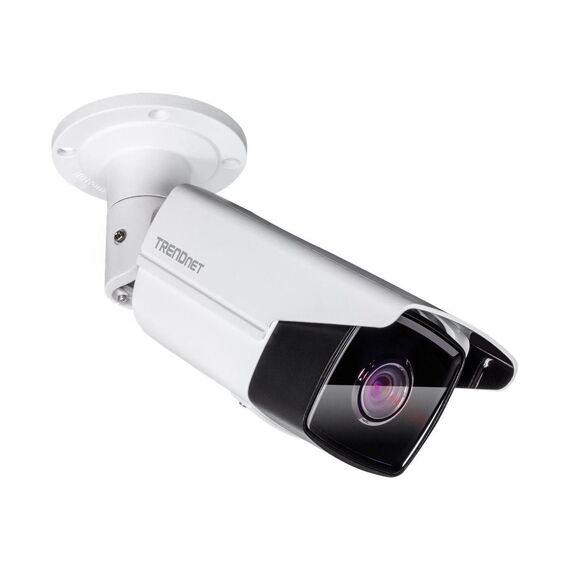

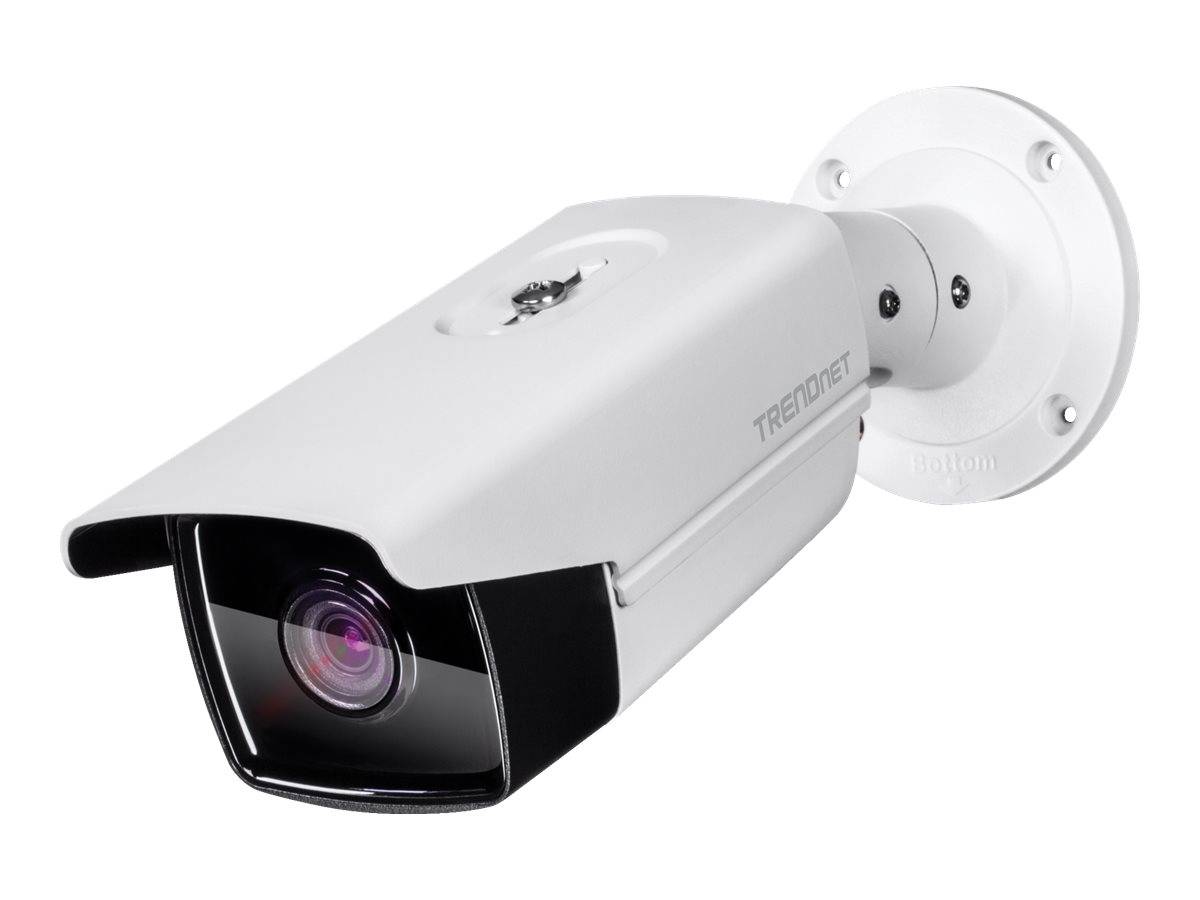

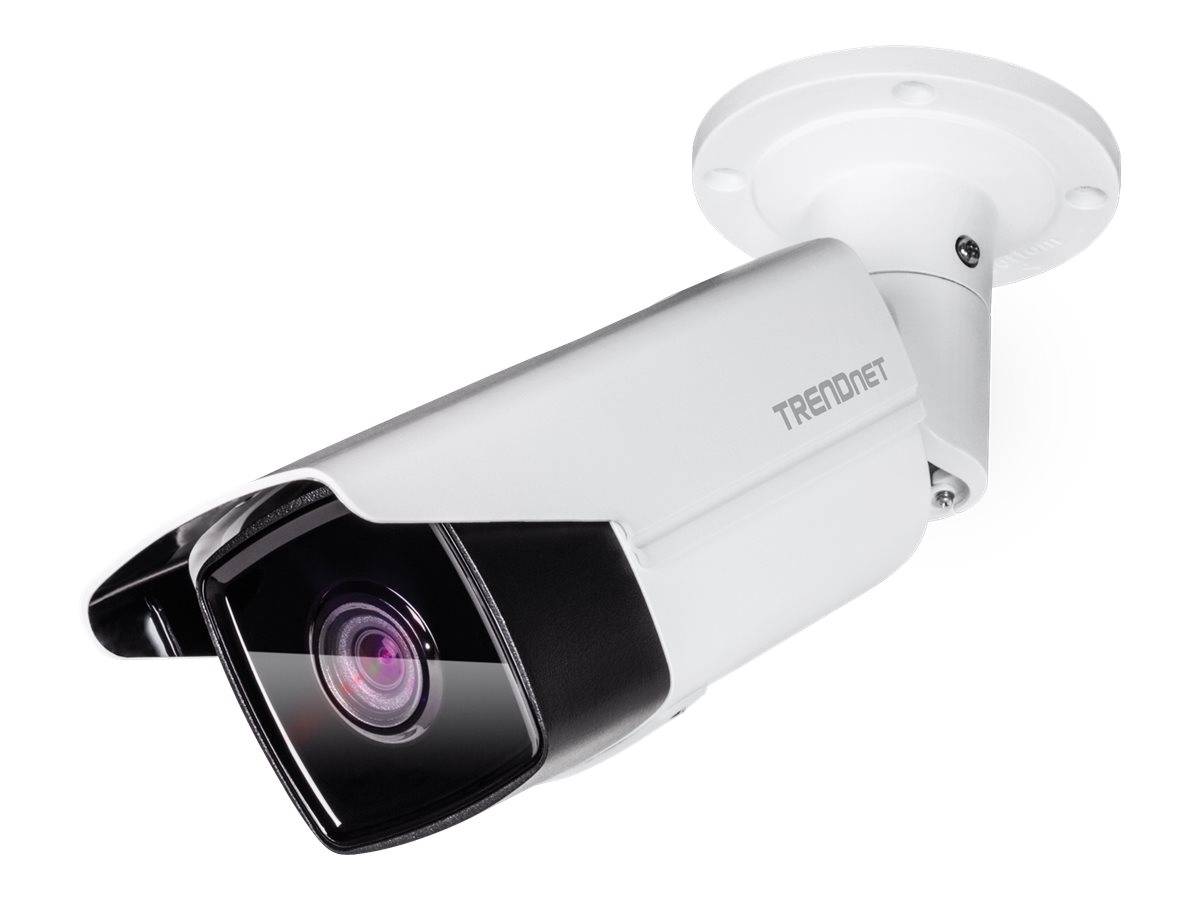

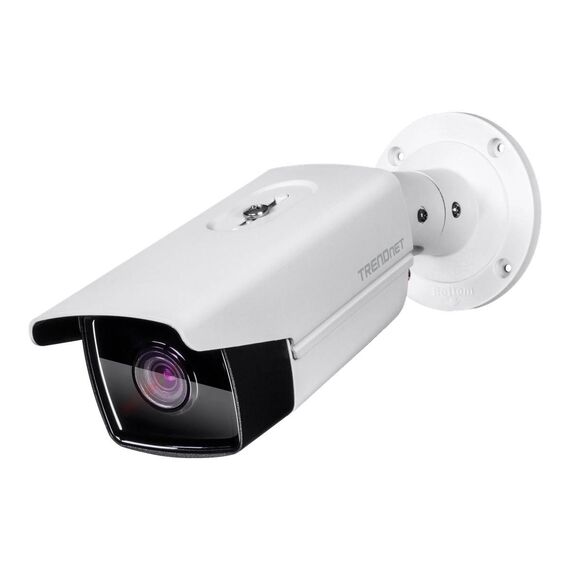

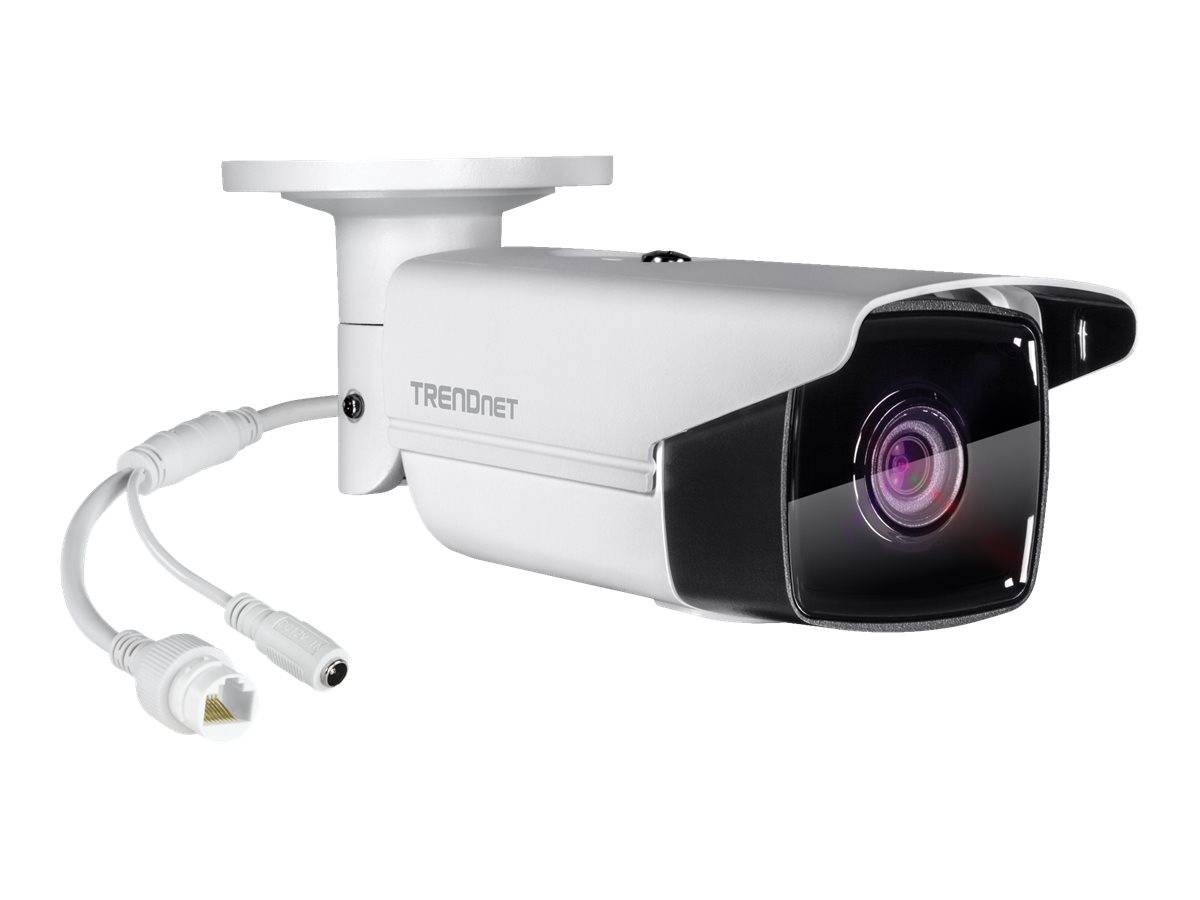

TRENDnet TV IP1313PI / Network surveillance camera / outdoor, indoor / weatherproof / colour (Day&Night) / 5 MP / 2944 x 1656 / fixed focal / LAN 10/100 / MJPEG, H.264, H.265, H.265+, H.264+ / DC 12 V / PoE | TV-IP1313PI
TV-IP1313PI
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Night vision
- Outdoor IP67 protection
- WDR image balancing
- Save installation costs with PoE
- Program motion detection recording and email alerts
Product Specification
| Device Type | Network surveillance camera |
| Connectivity Technology | Wired |
| Width | 10.5 cm |
| Depth | 30 cm |
| Height | 10.5 cm |
| Weight | 1.2 kg |
| Localisation | English, German, French, Portuguese, Spanish |
| Camera | Camera |
| Type | Colour - Day&Night - fixed - outdoor, indoor - weatherproof |
| Digital Video Format | MJPEG, H.264, H.265, H.265+, H.264+ |
| Max Digital Video Resolution | 2944 x 1656 |
| Motion Detection | Yes |
| Digital Zoom | 4 |
| Minimum Illumination | 0.01 lux ¦ 0 lux - IR |
| Infrared LEDs | Yes |
| Infrared Distance | 80 m |
| Video Capture | 2944 x 1656 @ 20 fps ¦ 640 x 480 @ 25 fps ¦ 1280 x 720 @ 25 fps |
| Features | Backlight Compensation (BLC), digital noise reduction, sharpness control, digital image rotation, white balance, saturation control, brightness control, Power over Ethernet, contrast control, e-mail alerts, image mirror, Wide Dynamic Range (WDR), Privacy Mask Function, PSIA, tamper-detection, Smart IR, reset button, Text Caption Overlay, triple video stream, snapshot function, ONVIF (Profile S) support, ONVIF (Profile G) support, exposure control, Internet Server Application Programming Interface (ISAPI), IP address filtering, motion detection |
| Image Sensor | Image Sensor |
| Type | 5 MP CMOS 1/2.9" |
| Lens Construction | Lens Construction |
| Type | Fixed focal |
| Focal Length | 4 mm |
| Lens Iris | F/1.2 |
| Horizontal Field of View (degree) | 63.5 |
| Panning | Panning |
| Range (degree) | 0 to 360 |
| Tilting | Tilting |
| Range (degree) | 0 to 90 |
| Interfaces | Interfaces |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, SNMP 1, SNMP 2c, SNMP 3, RTSP, RTP, HTTPS, UPnP, IPv4, IPv6, PPPoE, SMB, QOS, DSCP, CIFS, LLTD, NFS |
| Expansion / Connectivity | Expansion / Connectivity |
| Ports | LAN/power |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC Card |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting kit, weather seal |
| Compliant Standards | UL, FCC, IP67, IEEE P802.3u, IEEE P802.3x, IEEE 802.3af, IEEE 802.3, IEEE 802.1x |
| Power | Power |
| Power Requirements | DC 12 V / PoE |
| Power Device | 12.5 Watt |
| Software / System Requirements | Software / System Requirements |
| OS Required | Android, Apple iOS |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
Features - Trendnet - TV-IP1313PI
More Details
Product Code
Z010935
EAN Code
0710931111460
Manufacturer
Trendnet
