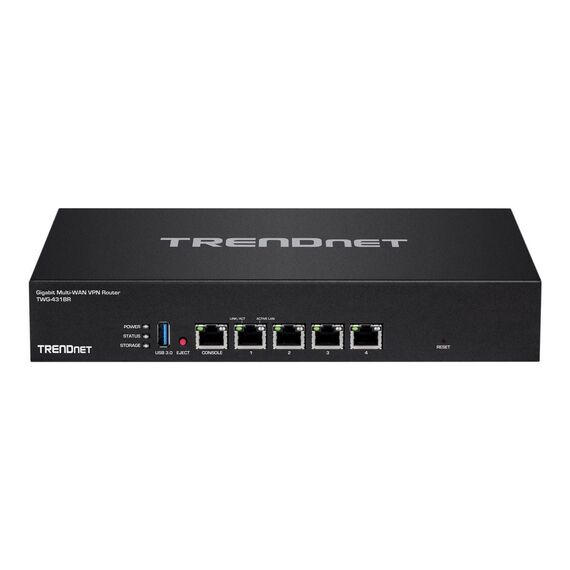

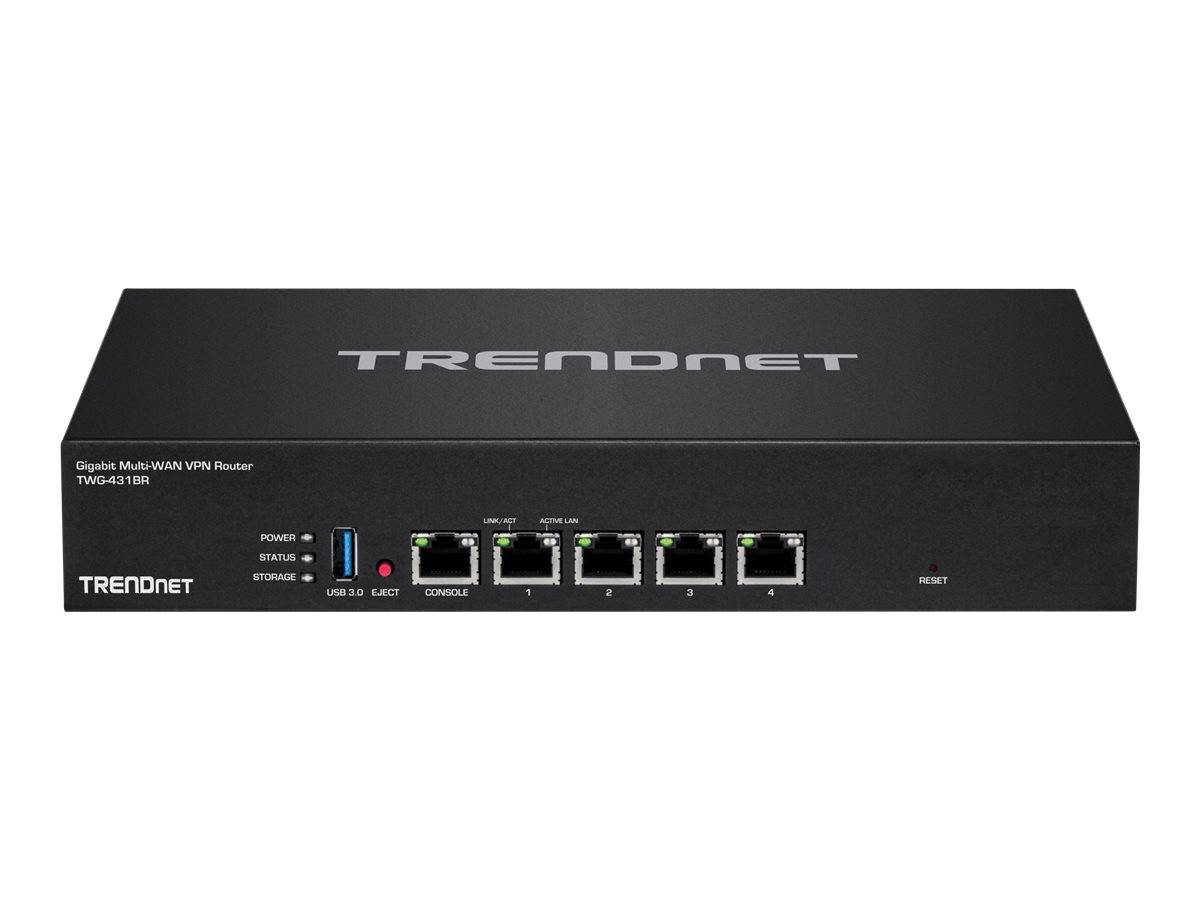

TRENDnet TWG-431BR / Router / GigE / WAN ports: 3 / rack-mountable | TWG-431BR
TWG-431BR
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Multi-WAN support
- High availability
- IEEE 802.1Q inter-VLAN routing
- WAN load-balancing and fail-over modes
- SSL, IPsec, PPTP, and L2TP w/IPsec VPN support
- Web browser and Command Line Interface (CLI) management
- Online firmware notification and upgrade
- Web content filtering
- QoS for VoIP and media streaming
Product Specification
| Device Type | Router |
| Enclosure Type | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Routing Protocol | OSPF, RIP-2, static IP routing |
| Remote Management Protocol | SNMP, Telnet, SSH, CLI |
| Encryption Algorithm | RSA, MD5, MPPE, SSL, SHA-1, ESP |
| Authentication Method | MS-CHAP |
| Features | NAT support, PAT support, wake on LAN (WOL), dynamic DNS server, MAC address filtering, VPN passthrough, firmware upgradable, Dead Peer Detection (DPD), virtual server support, WAN failover, DHCP server, port forwarding, reset button, DHCP relay, SNMP trap, SNMP support, WAN load balancing, Management Information Base (MIB) II, Web Filtering, DMZ support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, FCC, AES-128, AES-256, SHA-1, SHA-256, AES-192, RSA, IPsec/IKE |
| Status Indicators | Power, status, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | WAN / LAN: 4 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Console: 1 x RJ-45 ¦ USB 3.0: 1 x USB |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Electric Current Required | 0.5 A |
| Power Consumption Operational | 17.4 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x console cable - 1 m |
| Rack Mounting Kit | Included |
| MTBF | 318,350 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 18 cm |
| Depth | 26.5 cm |
| Height | 4.445 cm |
| Weight | 1.02 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 0 - 80% |
Features - Trendnet - TWG-431BR
More Details
Product Code
04:282654
EAN Code
0710931301410
Manufacturer
Trendnet
