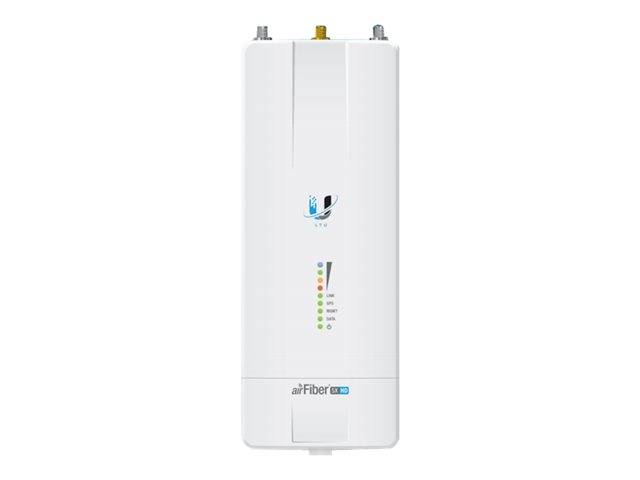

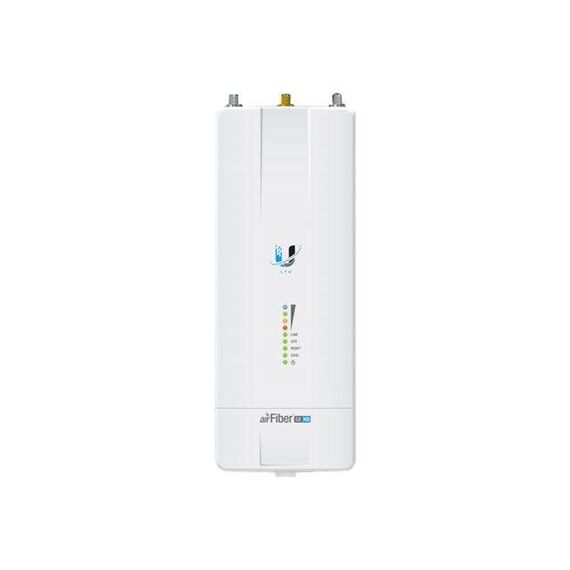

Ubiquiti airFiber AF-5XHD / Wireless bridge / AirFiber / AirFiber | AF-5XHD
Ubiquiti airFiber AF-5XHD / Wireless bridge / AirFiber / AirFiber | AF-5XHD
Description
Ubiquiti networks continues to disrupt the wireless broadband market with incredible technology at breakthrough pricing by introducing the AF-5XHD. Designed for use in the 5 GHz frequency band, the AF-5XHD features modern radio technology, offering greater channel bandwidths and more advanced RF components.
Ubiquiti airFiber AF-5XHD / Wireless bridge | AF-5XHD
Special Features
- User-configurable interference mitigation
- Redundant images for fail-safe configuration
- Antenna aiming guard
Product features
- User-configurable interference mitigation
User-selectable profiles support both high-interference deployments for robust, optimal performance. - Redundant images for fail-safe configuration
Creation of backup firmware images ensures fail-safe configuration and enhances reliability. - Antenna aiming guard
This alerts the user when the radio or antenna aiming is changed due to tampering, impact, or storm damage.
Product Specification
Device Type | Wireless bridge |
Width | 8.2 cm |
Depth | 4.8 cm |
Height | 22.4 cm |
Weight | 350 g |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 1 Gbps |
Line Coding Format | 64 QAM, 256 QAM, QPSK, 16 QAM, 1024 QAM |
Data Link Protocol | AirFiber |
Frequency Band | 5 GHz |
Max Range Open Space | 100 km |
Features | DFS support, pole mountable, GPS sync compatible, xtreme Range Technology (xRT), Hybrid Division Duplexing (HDD) |
Encryption Algorithm | AES, WPA2-PSK |
Interfaces | 2 x aerial - RP-SMA ¦ 1 x aerial - SMA ¦ 1 x 1000Base-T (PoE) - RJ-45 ¦ 1 x 1000Base-T (management) - RJ-45 |
Included Accessories | PoE injector, pole mount |
Compliant Standards | IC, FCC, IP67 |
Power Over Ethernet (PoE) Supported | PoE |
Power Device | Power injector |
Power Consumption Operational | 12 Watt |
OS Provided | AirOS 8 |
Min Operating Temperature | -40 °C |
Max Operating Temperature | 55 °C |
