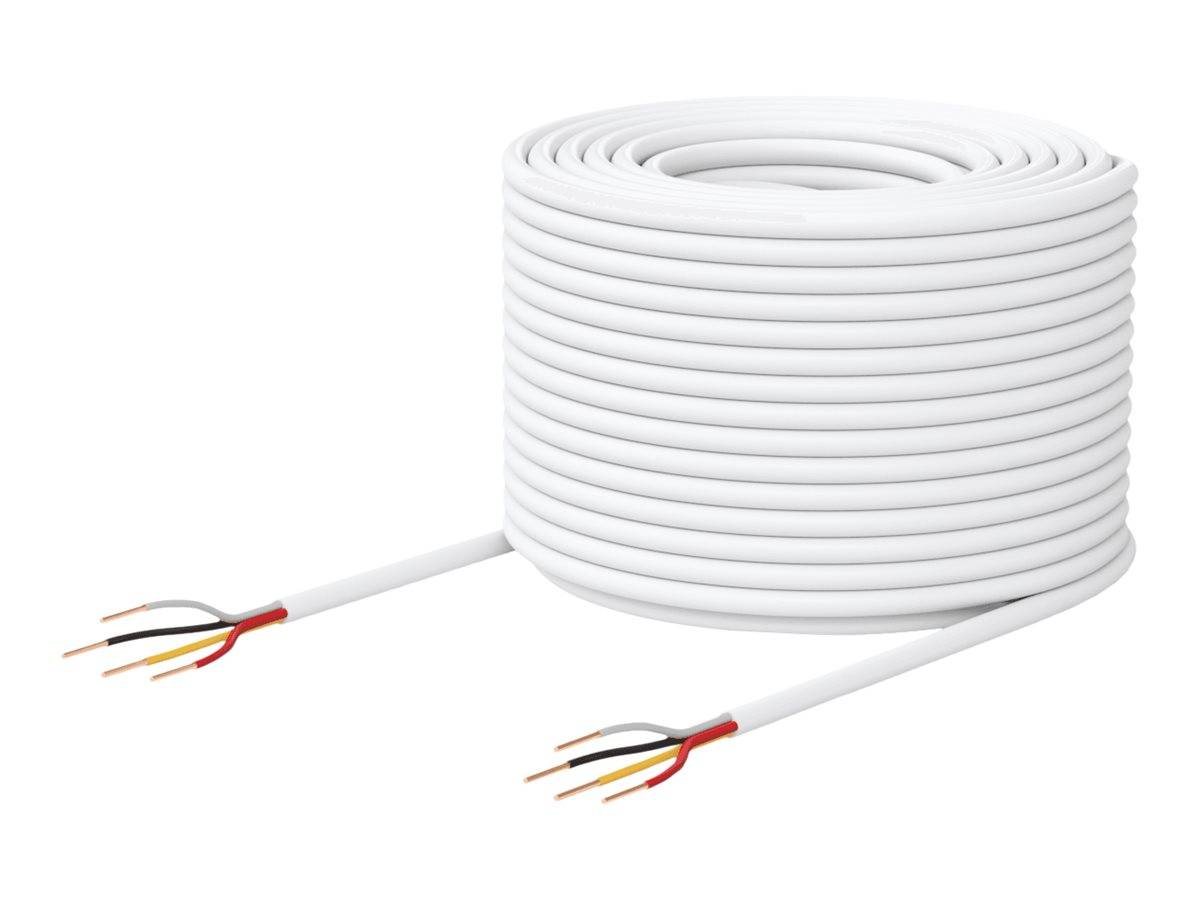

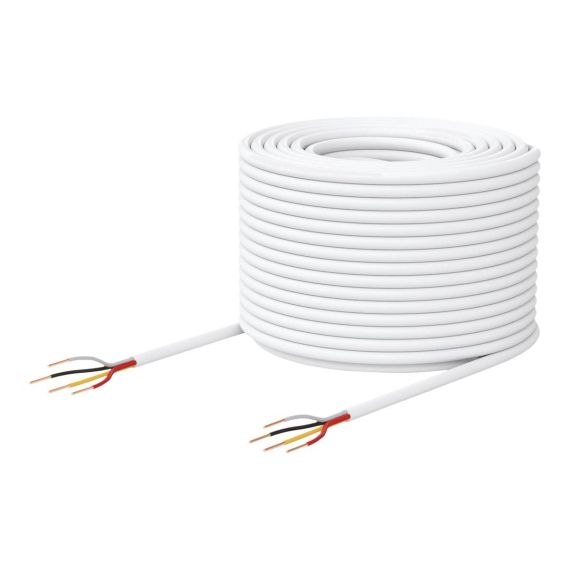

Ubiquiti / Bulk cable / 36 V / 152.4 m / plenum, solid conductors / white | UACC-CABLE-DOORLOCKRELAY-2P
Ubiquiti / Bulk cable / 36 V / 152.4 m / plenum, solid conductors / white | UACC-CABLE-DOORLOCKRELAY-2P
€231.84 inc. VAT
UACC-Cable-DoorLockRelay-2P
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Enhanced durability
Crafted with a Thermoplastic elastomer (TPE) jacket and featuring Semi-Rigid Polyvinyl Chloride (SRPVC) insulation, this cable is designed to withstand a wide range of operating temperatures from -45°C to 65°C, ensuring reliable performance in various environmental conditions. - Superior conductivity
Equipped with solid conductors made from bare copper, this cable ensures excellent signal transmission. The 18/22 American Wire Gauge (AWG) size is optimized for secure and efficient connectivity. - Flexible installation
Thanks to its minimum bend radius of 56 mm and plenum-rated design, installation is flexible and compliant with building codes, making it ideal for a wide range of applications.
Special Features
- Connects an electric/magnetic lock and door position sensor to an Access Hub
- Plenum-rated
Product Specification
| Type | Bulk cable |
| Jacket Material | Thermoplastic elastomer (TPE) |
| American Wire Gauge (AWG) | 18/22 |
| Rated Voltage | 36 V |
| Features | Plenum, solid conductors, bare copper conductor, Semi-Rigid Polyvinyl Chloride (SRPVC) insulation, 4 conductors, -45°C to 65°C operating temperature, minimum bend radius 56 mm |
| Length | 152.4 m |
| Outside Diameter | 4.5 mm |
| Colour | White |
| Weight | 5.6 kg |
| Miscellaneous | Miscellaneous |
| Compliant Standards | VW-1 |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Service & Support | Limited lifetime warranty |
Features - Ubiquiti - UACC-Cable-DoorLockRelay-2P
More Details
Product Code
07:672405
EAN Code
0810084691625
Manufacturer
Ubiquiti
