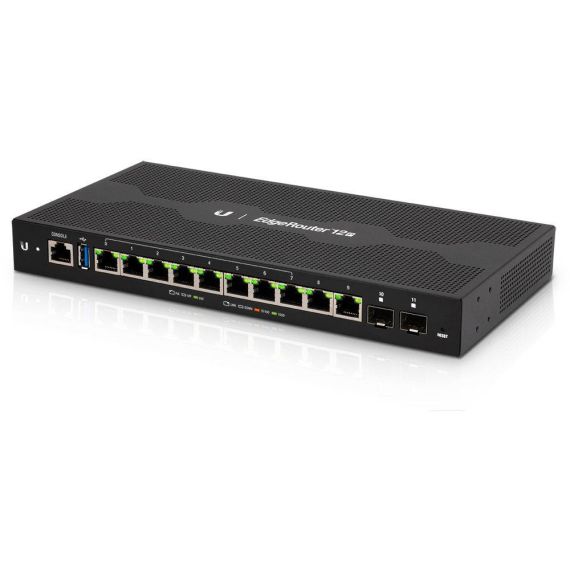

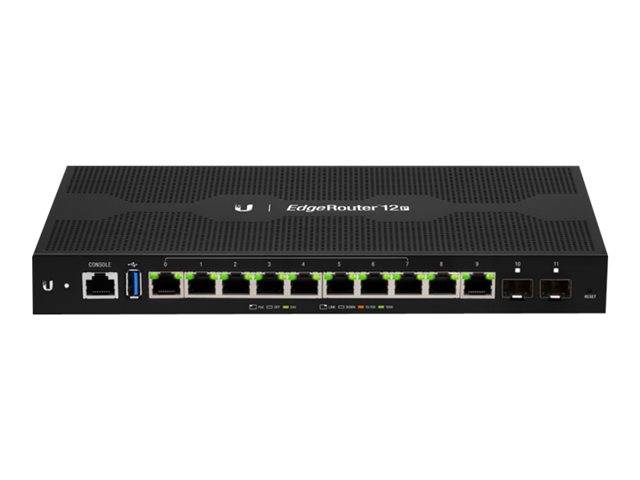

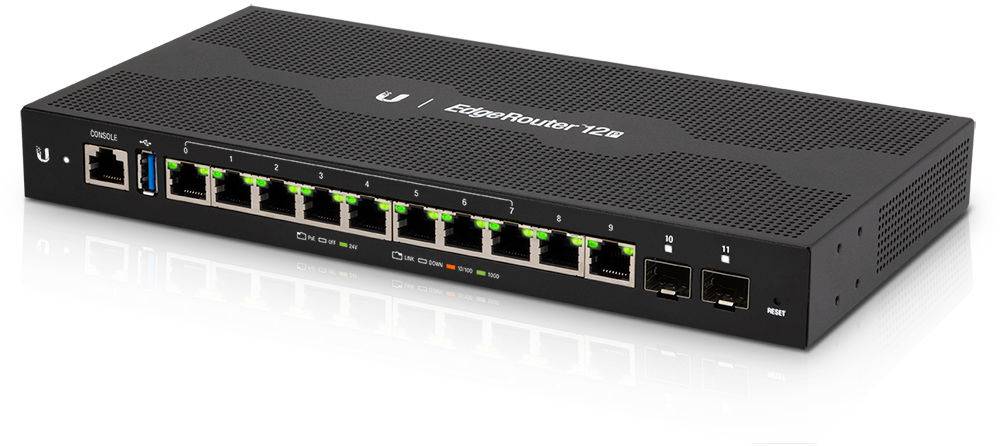

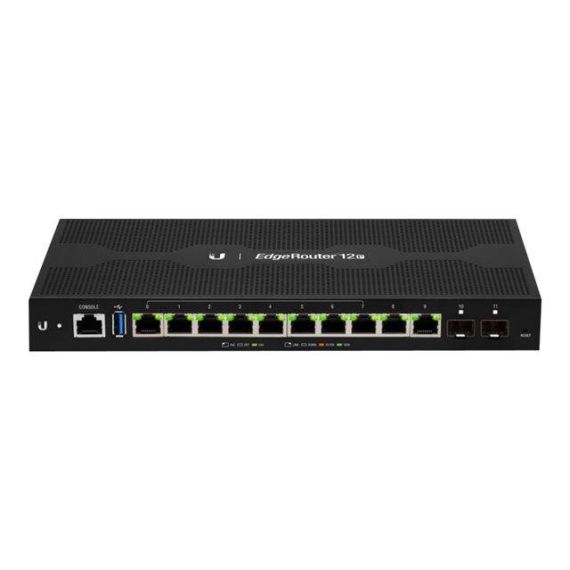

Ubiquiti EdgeRouter 12P / Router / GigE | ER-12P

Ask a question
ER-12P
Product Code04:325938 EAN Code0817882028196 ManufacturerUbiquiti
Ubiquiti EdgeRouter 12P / Router / GigE | ER-12P Description The latest addition to the EdgeMAX family, the EdgeRouter provides higher performance (2M packets per second) and powerful EdgeOS software. The EdgeRouter is rack mountable and has 8 Ethernet ports (EdgeRouter) or 6...
324.19
(385.79  incl.Vat)
Standard DeliveryStandard delivery within 4 to 8 business days.
+
Standard DeliveryStandard delivery within 4 to 8 business days.
Find similar

Ubiquiti EdgeRouter 12P / Router / GigE | ER-12P

Description

The latest addition to the EdgeMAX family, the EdgeRouter provides higher performance (2M packets per second) and powerful EdgeOS software. The EdgeRouter is rack mountable and has 8 Ethernet ports (EdgeRouter) or 6 Ethernet ports and 2 SFP ports (EdgeRouter Pro).



Product Specification

Device Type Router
Enclosure Type Desktop
Connectivity Technology Wired
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Performance Forwarding performance (64-byte packet size): 3400000 packets per second ¦ Routing throughput (1518-byte packet size): 6.8 Gbps
Network / Transport Protocol PPTP, L2TP, IPSec, PPPoE
Routing Protocol OSPF, RIP, BGP, IGMP, VRRP, static IP routing, GRE, OSPFv3, RIPng
Remote Management Protocol SNMP, Telnet, SSH, CLI
Authentication Method RADIUS
Features Flow control, firewall protection, NAT support, power over Ethernet (PoE), VLAN support, IPv6 support, deep inspection, wall mountable, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, reset button, fanless, LLDP support, DHCP relay, NetFlow, IGMP proxy, Network Bonding support
Compliant Standards IEEE 802.1Q, IEEE 802.3ad (LACP), IC, FCC
Processor 1 x MIPS MIPS64 1 GHz
RAM 1 GB DDR3 SDRAM
Flash Memory 4 GB
Status Indicators Port transmission speed, link/activity
Interfaces LAN: 2 x 10Base-T/100Base-TX/1000Base-T (PoE) - RJ-45 ¦ LAN: 2 x 1000Base-X - SFP (mini-GBIC) ¦ Console: 1 x RJ-45 ¦ USB 3.0: 1 x 9 pin USB Type A ¦ LAN: 8 x 10Base-T/100Base-TX/1000Base-T - RJ-45
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 20 Watt
Rack Mounting Kit Optional
OS Provided Ubiquiti EdgeOS
Width 26.81 cm
Depth 13.65 cm
Height 3.11 cm
Weight 700 g
Min Operating Temperature -10 °C
Max Operating Temperature 50 °C
Humidity Range Operating 10 - 90% (non-condensing)
