Ubiquiti EdgeSwitch 8 / Switch / L3 / Managed / 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP / rack-mountable / PoE+ | ES-8-150W
Description
EdgeSwitch delivers robust performance, PoE+ support and intelligent switching for growing networks.
Ubiquiti EdgeSwitch 8 / Switch | ES-8-150W
Special Features
- Powerful enterprise switch models
- Enterprise-class features
- Optical fiber backhaul
- Convenient PoE+ support
- Breakthrough value
- Advanced UI
Product features
- Powerful enterprise switch models
The EdgeSwitch delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. - Enterprise-class features
The EdgeSwitch supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability. - Optical fiber backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps. - Convenient PoE+ support
The EdgeSwitch features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network. - Breakthrough value
The EdgeSwitch provides top price/performance value: a full-featured, enterprise-class switch. - Advanced UI
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
Product Specification
| Device Type | Switch - 8 ports - L3 - Managed |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |

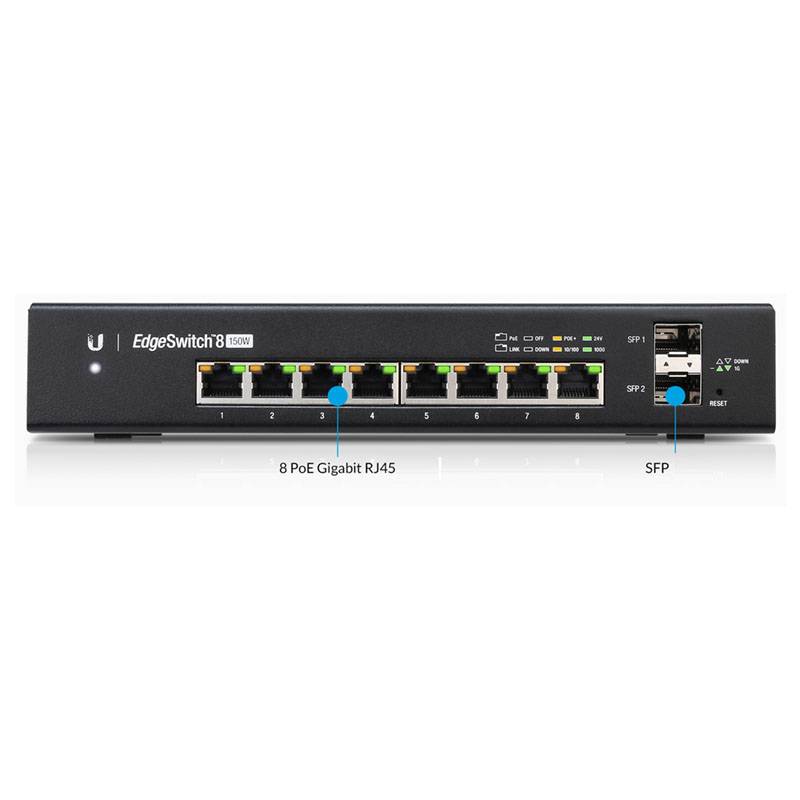

| Ports | 8 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Performance | Non-blocking switching capacity: 10 Gbps ¦ Switching capacity: 20 Gbps ¦ Forwarding performance: 14.88 Mpps |
| Capacity | VLANs supported: 255 ¦ ACL rules: 100 ¦ LAG groups: 6 |
| MAC Address Table Size | 8K entries |
| Jumbo Frame Support | Yes |
| Routing Protocol | Static IP routing, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, SSH-2, CLI |
| Features | Flow control, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Dynamic VLAN Support (GVRP), Class of Service (CoS), Generic Attribute Registration Protocol (GARP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Status Indicators | Port transmission speed, PoE, link/activity |

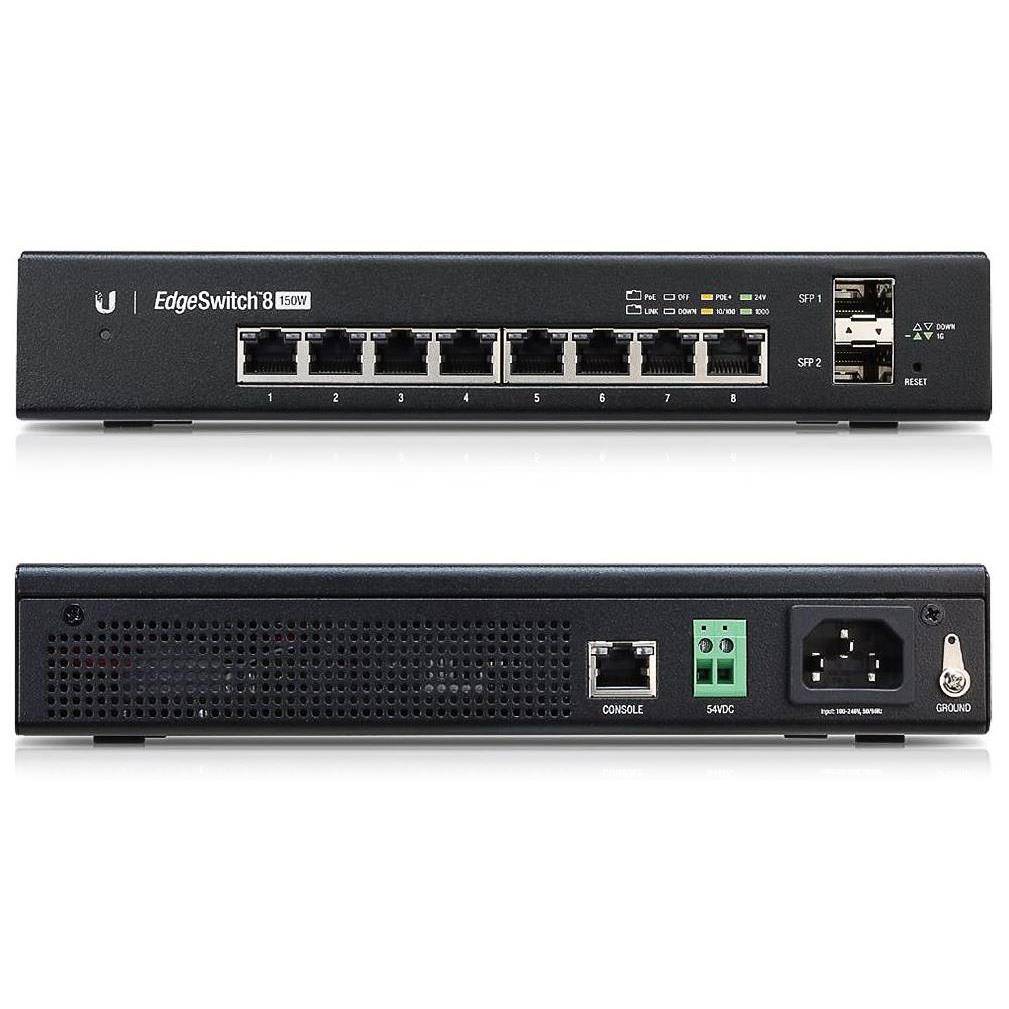

| Interfaces | 8 x 1000Base-T RJ-45 PoE+ - 34.2 W ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 150 Watt |
| Compliant Standards | IC, FCC, ETSI 300 019 |
| Width | 23.5 cm |
| Depth | 20.4 cm |
| Height | 4.3 cm |
| Weight | 1.72 kg |
Features - Ubiquiti - ES-8-150W
General
8-Port
More Details
Product Code
07:415743
EAN Code
0810354025686
Manufacturer
Ubiquiti
