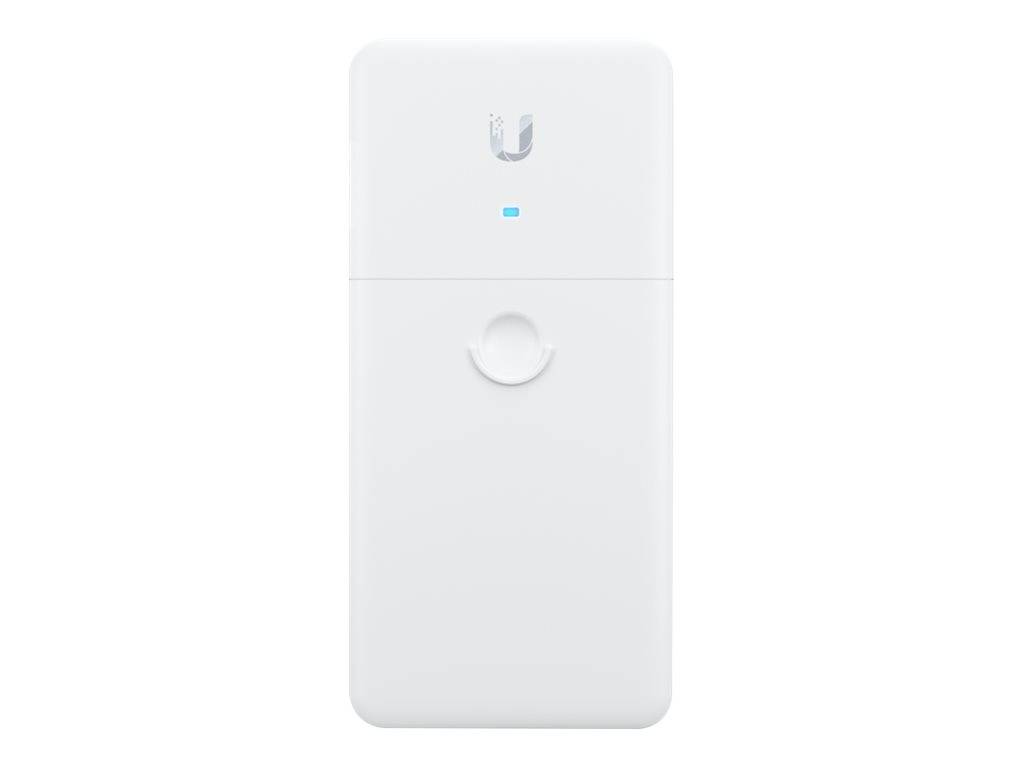

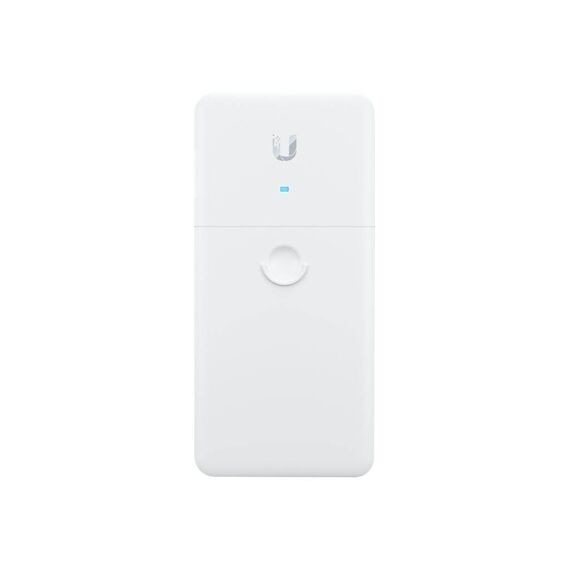

Ubiquiti UACC-LRE / Repeater / GigE / 10Base-T, 100Base-TX, 1000Base-T / RJ-45 / RJ-45 / up to 1 km | UACC-LRE
Please sign in so that we can notify you about a reply
Special Features
- Extend PoE connections up to 1 km
- (1) GbE RJ45 port for PoE/PoE+ input
- (1) GbE RJ45 port for passthrough PoE output
- 10 kA+ surge protection
- Works reliably in extreme temperatures
Product Specification
| Device Type | Repeater |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Max Transfer Distance | 1 km |
| Status Indicators | System, PoE, link/activity/speed |
| Features | Weatherproof, UV stabilised enclosure, PoE Pass Through, outdoor enclosure, 30KV ESD Protector (contact discharge), 30KV ESD Protector (air-gap discharge) |
| Compliant Standards | IEEE 802.3af, IEEE 802.3at |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | IC, FCC, IPX5 |
| Power | Power |
| Power Over Ethernet (PoE) | PoE+ |
| Power Consumption Operational | 1.5 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 19.65 cm |
| Depth | 9.35 cm |
| Height | 3.9 cm |
| Weight | 350 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 80 °C |
| Humidity Range Operating | 10 - 95% (non-condensing) |
Features - Ubiquiti - UACC-LRE
More Details
Product Code
03:196996
EAN Code
0810010078780
Manufacturer
Ubiquiti
