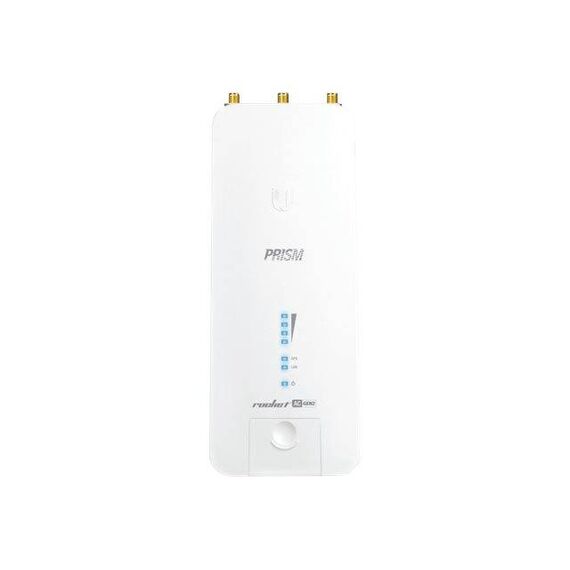

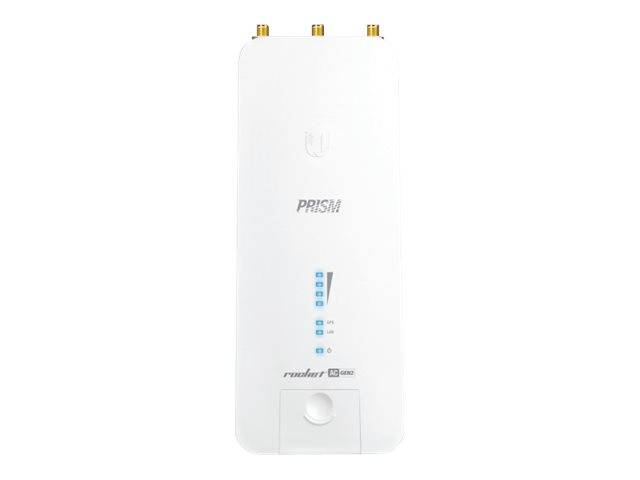

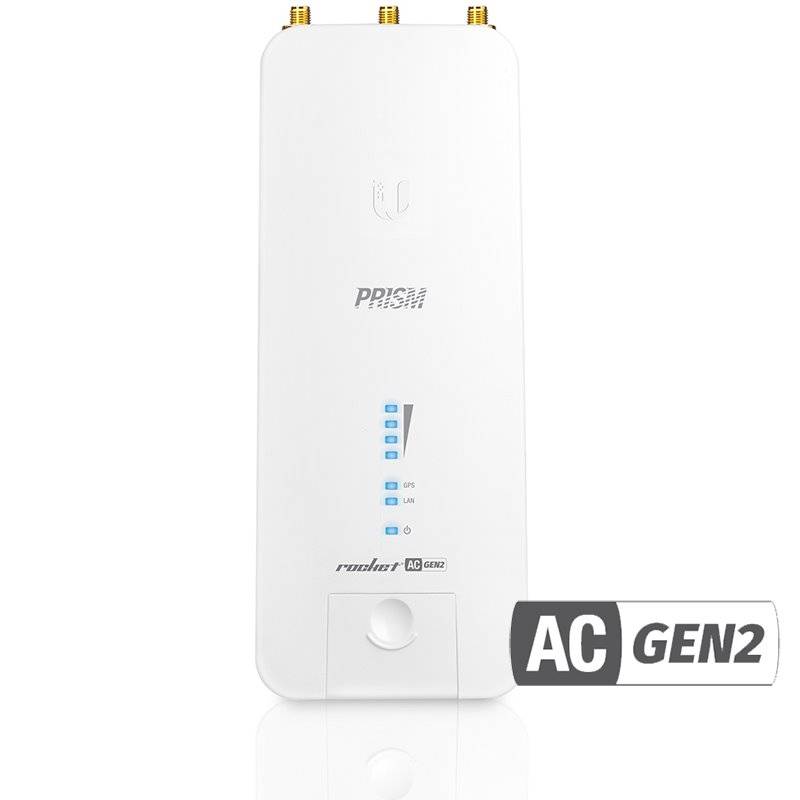

Ubiquiti Rocket PRISM RP-5AC-GEN2 / Radio access point / AirMax ac / AirMax ac | RP-5AC-Gen2

Ubiquiti Rocket PRISM RP-5AC-GEN2 / Radio access point / AirMax ac / AirMax ac | RP-5AC-Gen2
Description The Rocket Prism 5AC features enhanced protection against ESD events. Ubiquiti's patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments. Special Features
Product features
|
Product Specification
Device Type | Radio access point |
Ruggedized Design | Outdoor |
Width | 8.8 cm |
Depth | 4 cm |
Height | 23 cm |
Weight | 400 g |
Processors Installed | 1 x Atheros MIPS 74KC |
Max Supported Qty | 1 |
RAM | 128 MB DDR2 SDRAM |
Form Factor | External |
Connectivity Technology | Wireless |
Data Transfer Rate | 500 Mbps |
Line Coding Format | 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM |
Data Link Protocol | AirMax ac |
Network / Transport Protocol | TCP/IP, DHCP |
Remote Management Protocol | SNMP, Telnet, SSH, CLI |
Frequency Band | 5 GHz |
Status Indicators | Power, signal strength, LAN, GPS |
Features | Routing, NAT support, VLAN support, web server, WISP mode, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), wireless bridge mode, 24KV ESD Protector, airPrism technology |
Encryption Algorithm | AES, WPA2 |
Interfaces | 2 x aerial - RP-SMA ¦ 1 x 1000Base-T (PoE) - RJ-45 |
Included Accessories | PoE injector |
Compliant Standards | IC, FCC, RoHS, ETSI 300 019 |
Power Over Ethernet (PoE) Supported | PoE |
Power Consumption Operational | 9.5 Watt |
OS Provided | AirOS |
Min Operating Temperature | -40 °C |
Max Operating Temperature | 80 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
