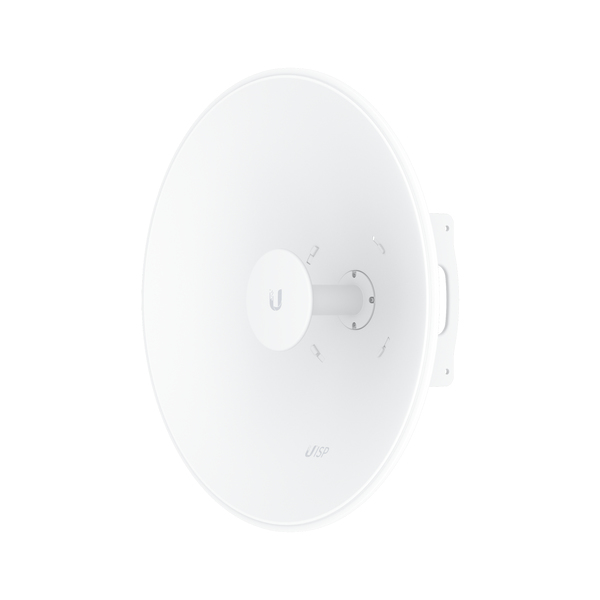

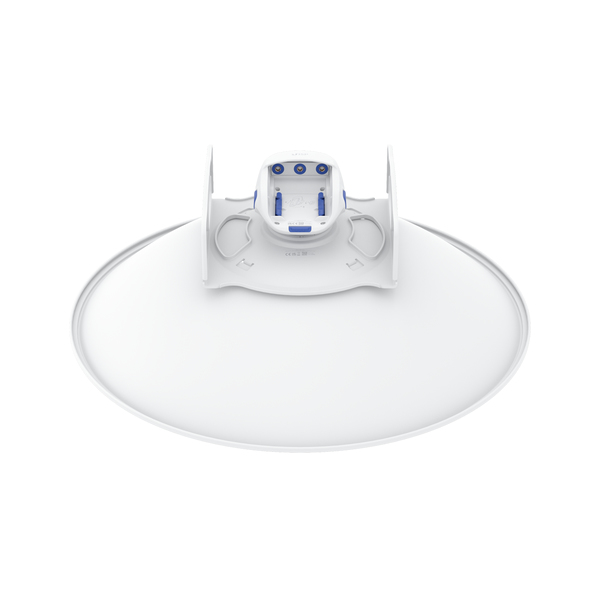

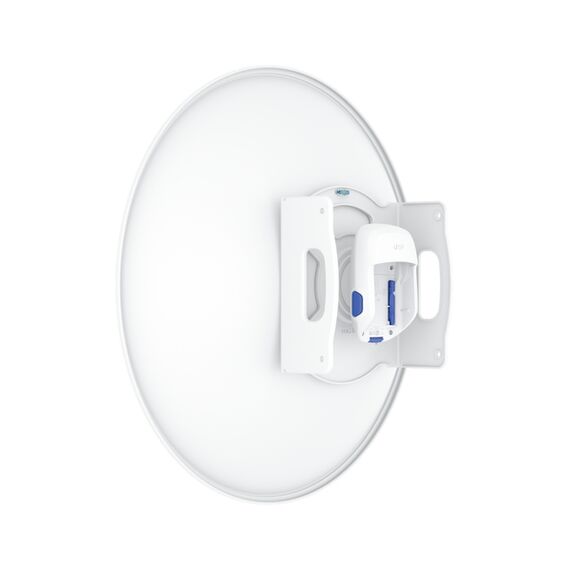

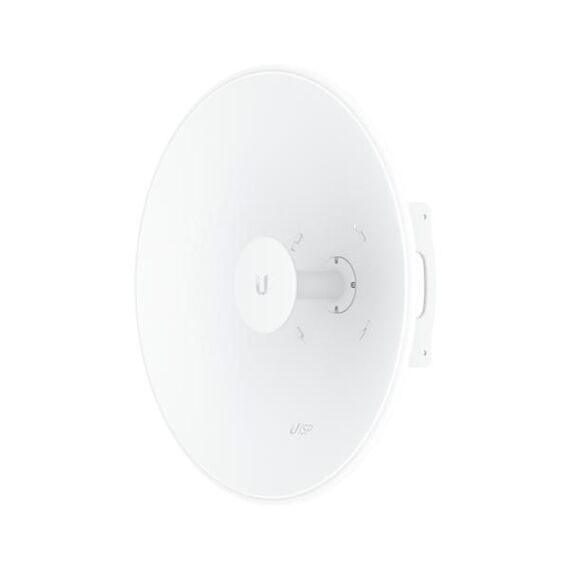

Ubiquiti UISP Dish / Antenna / dish / 30 dBi / outdoor, pole mount / for P/N: AF-5XHD | UISP-DISH
UISP-DISH
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust design
Crafted from UV stabilized polycarbonate, aluminum alloy, and powder-coated galvanized steel, the UISP Dish is built to withstand harsh outdoor conditions. Its weatherproof construction ensures durability, even in extreme environments, making it an ideal choice for outdoor networking needs. - High-performance connectivity
Featuring a frequency range of 5.15 - 6.875 GHz and a gain of 30 dBi, the UISP Dish offers reliable, high-speed point-to-point (PtP) connectivity over distances of 30+ km. Its linear dual polarization and precise beamwidth control enhance signal integrity and network performance. - Easy installation

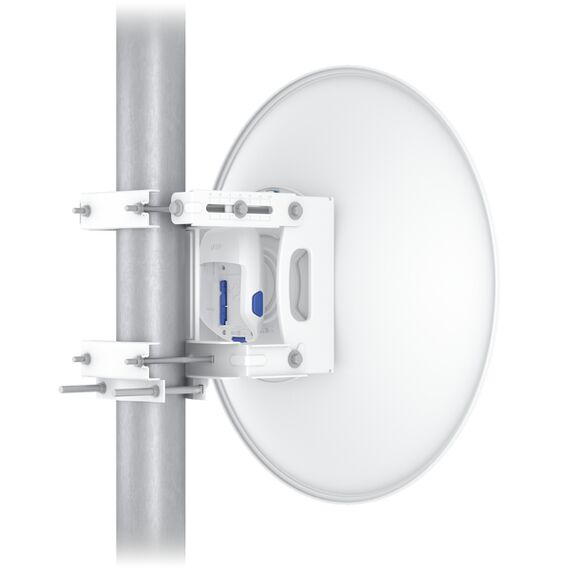

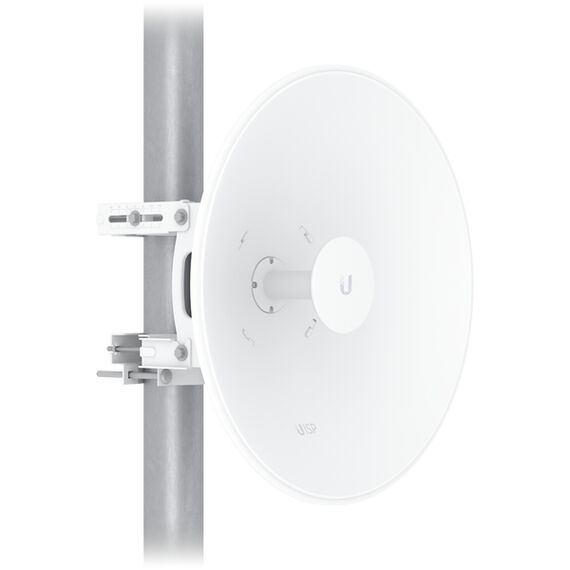

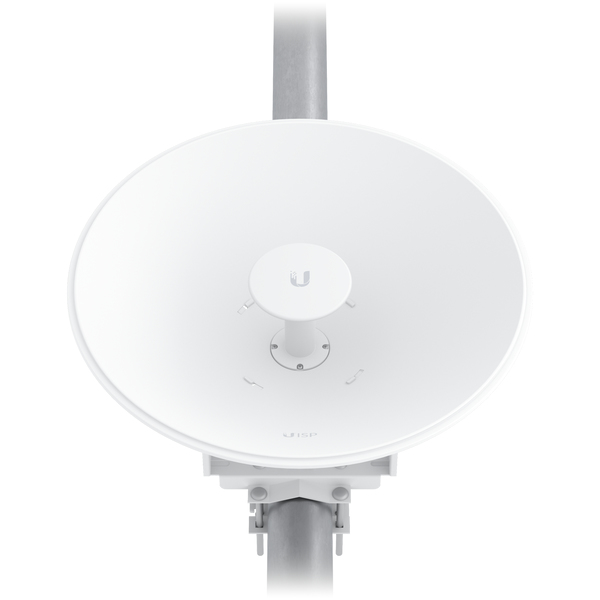

The UISP Dish comes with a comprehensive mounting kit, including a pole mount, facilitating straightforward installation. Its two-piece latching design allows for quick setup and adjustment, while the ±15° elevation feature offers flexibility in aligning for optimal signal reception.
Special Features
- Frequency range: 5.15 - 6.875 GHz
- 30+ km PtP link range
- Precision mounting bracket for easy installation and alignment
Product Specification
| Product Type | Antenna |
| Package Content | Pole mount |
| Product Material | Aluminium alloy, powder-coated galvanised steel, UV stabilised polycarbonate |
| Width | 65 cm |
| Depth | 20 cm |
| Height | 65 cm |
| Weight | 4.54 kg |
| Aerial | Aerial |
| Form Factor | Dish |
| Aerial Placing / Mounting | Outdoor, pole mount |
| Frequency Range | 5.15 - 6.875 GHz |
| Gain | 30 dBi |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Horizontal Beamwidth | 8° |
| Vertical Beamwidth | 8° |
| Miscellaneous | Miscellaneous |
| Mounting Kit | Included |
| Features | Weatherproof, linear dual polarisation, point-to-point broadcasting, two-piece latching, 125mph (200km/h) rated wind velocity, ±15° elevation, 30+ km PtP link range |
| Compliant Standards | IPX6 |
| Compatibility Information | Compatibility Information |

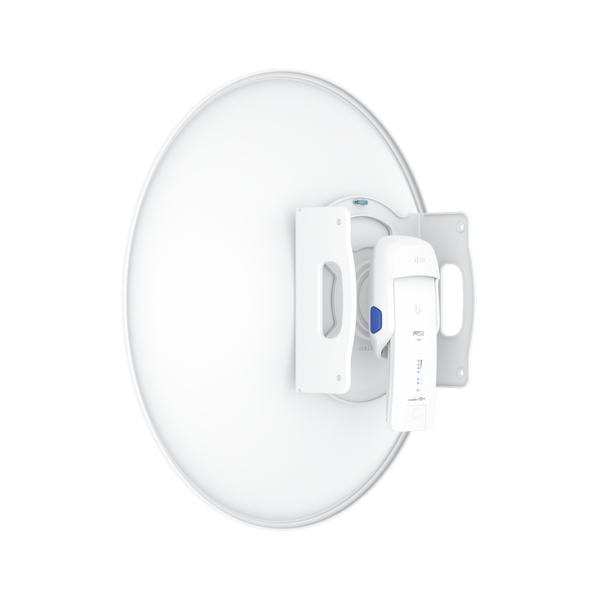

| Designed For | P/N: AF-5XHD |
Features - Ubiquiti - UISP-DISH
More Details
Product Code
07:672367
EAN Code
8100100766874
Manufacturer
Ubiquiti
No posts found
