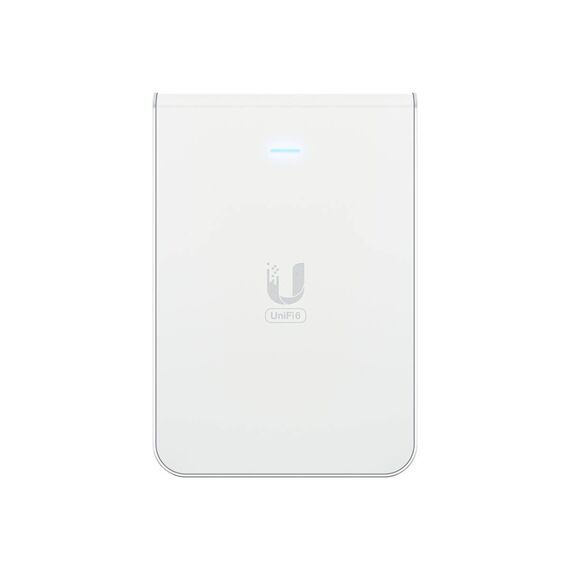

Ubiquiti UniFi 6 / Radio access point / Wi-Fi 6 / 2.4 GHz, 5 GHz / in wall | U6-IW
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Radio access point |
| Width | 9.6 cm |
| Depth | 3.119 cm |
| Height | 13.966 cm |
| Weight | 460 g |
| Networking | Networking |
| Form Factor | In-wall mountable |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6) |
| Frequency Band | 2.4 GHz, 5 GHz |
| Performance | Maximum data rate (2.4 GHz): 573.5 Mbps ¦ Maximum data rate (5 GHz): 4.8 Gbps ¦ Aggregate data rate: 5.3 Gbps |
| Capacity | Number of concurrent clients: 300+ ¦ BSSIDs per radio: 8 |
| Features | VLAN support, plastic housing, reset button, 4x4 MU-MIMO technology, 2x2 MU-MIMO technology, Advanced QoS, Guest Isolation, aluminium housing, zero-wait DFS |
| Encryption Algorithm | WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WPA3-Enterprise, WPA3-PSK |
| Authentication Method | Basic Service Set Identifier (BSSID) |
| Compliant Standards | IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax |
| Aerial | Aerial |
| Antenna | Internal |
| Internet of Things (IoT) | Internet of Things (IoT) |
| Internet of Things (IoT) Compatible | Yes |
| Communications Technology | Bluetooth Low Energy (LE) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-T (PoE input) - RJ-45 ¦ 1 x 1000Base-T (PoE output) - RJ-45 ¦ 3 x 1000Base-T - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wall mounting kit |
| Compliant Standards | IC, FCC |
| Power | Power |
| Power Over Ethernet (PoE) Supported | PoE+ |
| Voltage Required | DC 44 - 57 V |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - U6-IW
More Details
Product Code
07:127798
EAN Code
0810010077493
Manufacturer
Ubiquiti
