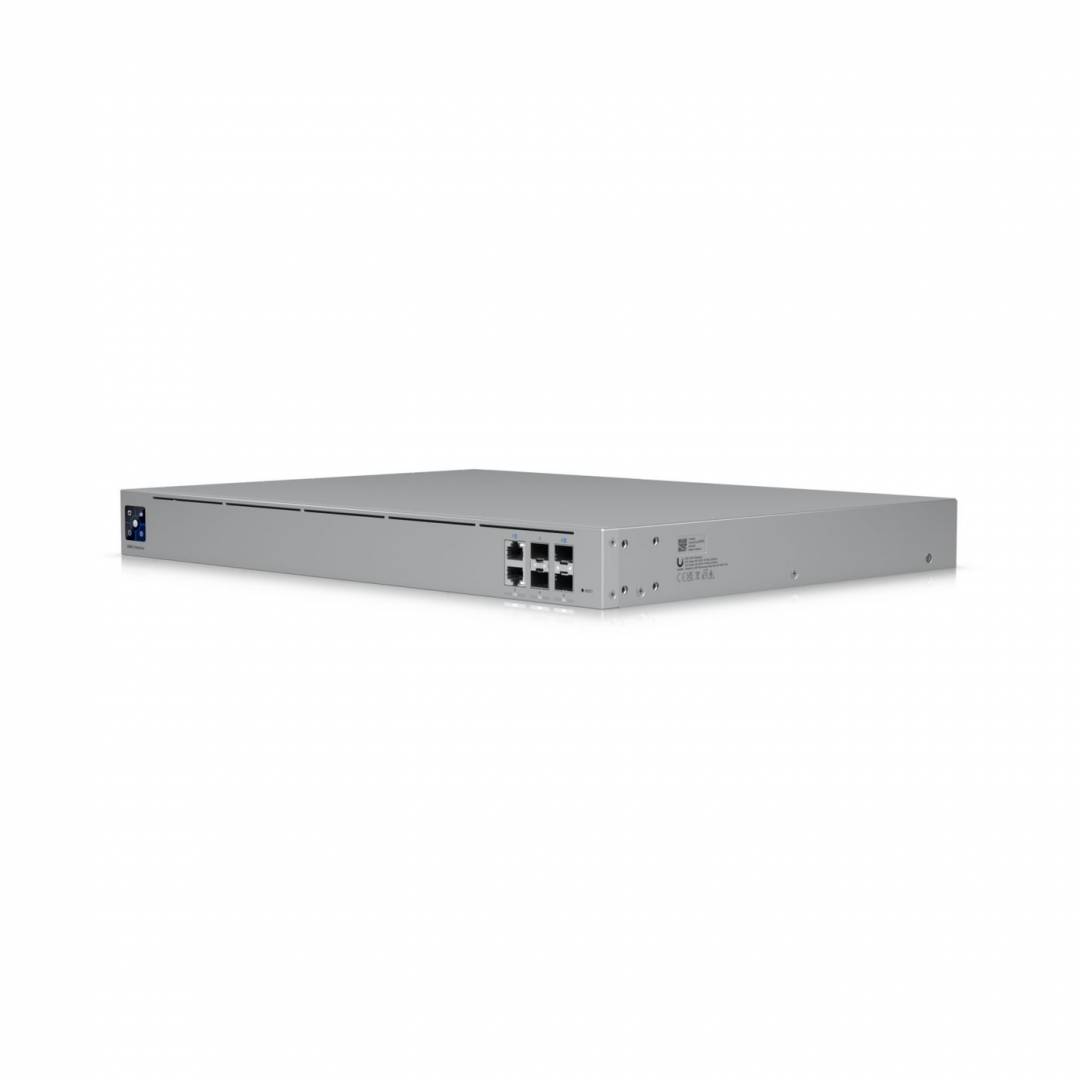

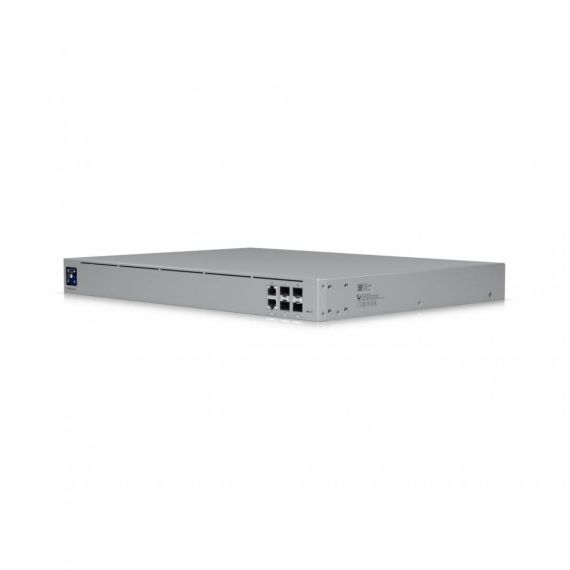

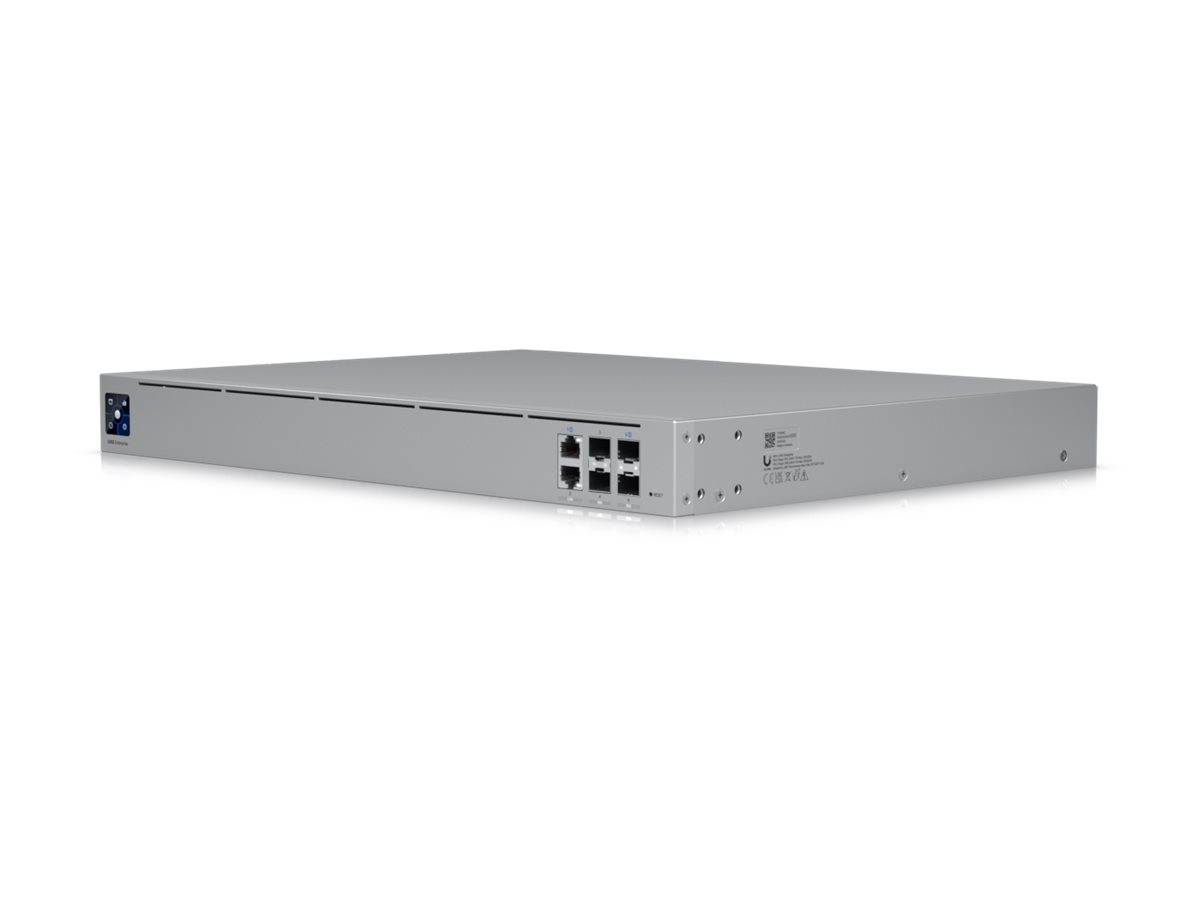

Ubiquiti UniFi Gateway Enterprise / Security appliance / 25GbE, 10GbE, 2.5GbE / 1U / rack-mountable | UXG-ENTERPRISE
UXG-ENTERPRISE
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Robust capacity
The Ubiquiti UniFi Gateway Enterprise supports up to 10,000 concurrent sessions and 1,000,000 new sessions per second, accommodating high traffic environments effortlessly. - Efficient environmental performance
Designed to operate from 0°C to 40°C with a humidity range of 5 to 95%, ensuring reliability in varying conditions and climates. - High-speed interfaces
Equipped with dual 10 Gigabit Ethernet SFP+ interfaces, it delivers performance and seamless connectivity for intensive networking tasks. - Multiple security features
Integrated with firewall protection, load balancing, and advanced IPS signatures, enabling a safe network environment against various threats. - User-friendly display
The built-in 1.3-inch touch screen display provides easy access to system configurations and real-time monitoring of network status.
Special Features
- Handles up to 10,000 concurrent sessions
- 1.3-inch touch screen display for user-friendly management
- Dual 10 Gigabit Ethernet SFP+ interfaces for high-speed connectivity
- Advanced firewall protection and load balancing features
- Total monitoring capabilities with Bluetooth management
Product Specification
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Built-in Devices | 1.3" touch screen display |
| Width | 44.24 cm |
| Depth | 32.5 cm |
| Height | 4.37 cm |
| Weight | 6.5 kg |
| Processor / Memory / Storage | Processor / Memory / Storage |
| Processors Installed | 1 x ARM 2 GHz |
| Max Supported Qty | 1 |
| RAM | 16 GB DDR4 SDRAM |
| Networking | Networking |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Data Link Protocol | 25 Gigabit Ethernet, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Network / Transport Protocol | WireGuard, L2TP, IPv6, DHCP |
| Routing Protocol | IGMP |
| Performance | Firewall throughput: 23.5 Gbps IDS/IPS throughput: 12.5 Gbps VPN WireGuard throughput: 1.2 Gbps OpenVPN throughput: 210 Mbps VPN encrypted throughput (L2TP): 280 Mbps |
| Capacity | Concurrent sessions: 1000000 New sessions per second: 71000 SSL inspection concurrent sessions: 10000 IPS signatures: 80000 |
| Status Indicators | Link/activity |
| Features | Aluminium housing, steel housing, 18 core CPU, Bluetooth management, reset button, 4KV ESD Protector (contact discharge), 8KV ESD Protector (air-gap discharge), load balancing, failover protection, Quality of Service (QoS), firewall protection, OpenVPN client, OpenVPN server, Site-to-Site Replication, policy-based WAN, DHCP relay, DHCP server, IGMP proxy, interrupt status port (ISP) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 25Gb Ethernet - SFP28 (WAN) 1 x 2.5Gb Ethernet - RJ-45 (WAN) 1 x 25Gb Ethernet - SFP28 2 x 10 Gigabit Ethernet - SFP+ 1 x 2.5Gb Ethernet - RJ-45 |
| Miscellaneous | Miscellaneous |
| Included Accessories | Rack mount kit |
| Compliant Standards | IC, FCC |
| Power | Power |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 150 Watt |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - Ubiquiti - UXG-ENTERPRISE
More Details
Product Code
03:259500
EAN Code
0810084695197
Manufacturer
Ubiquiti
