Ubiquiti Unifi UAP-AC-HD / Radio access point / 802.11ac Wave 2 / 802.11a/b/g/n/ac Wave 2 / Dual Band | UAP-AC-HD

Description

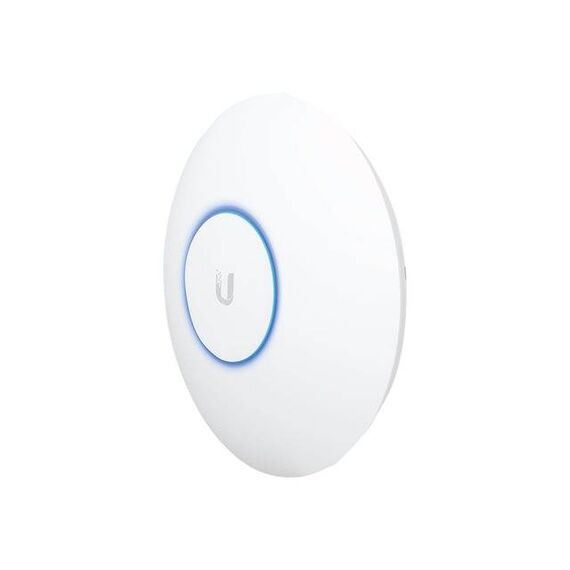

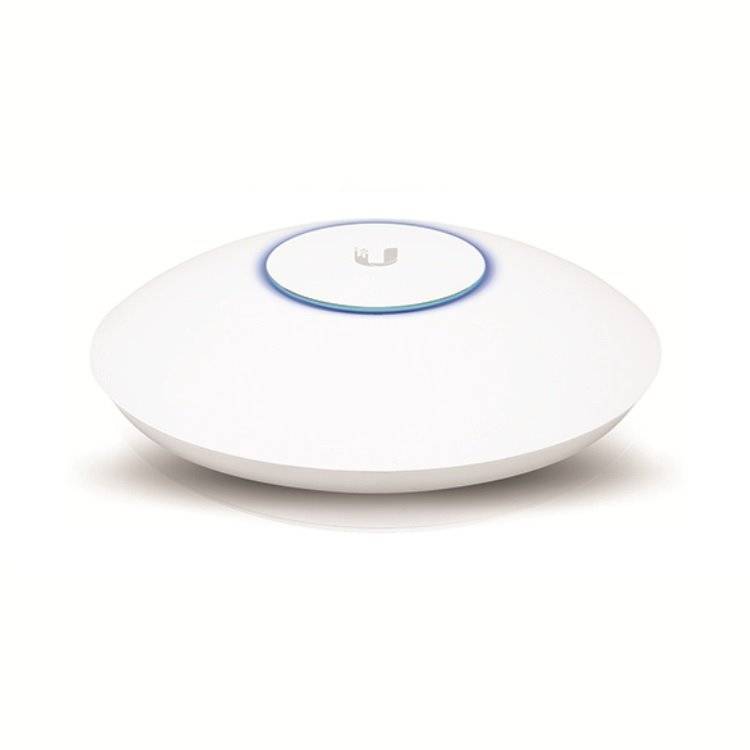

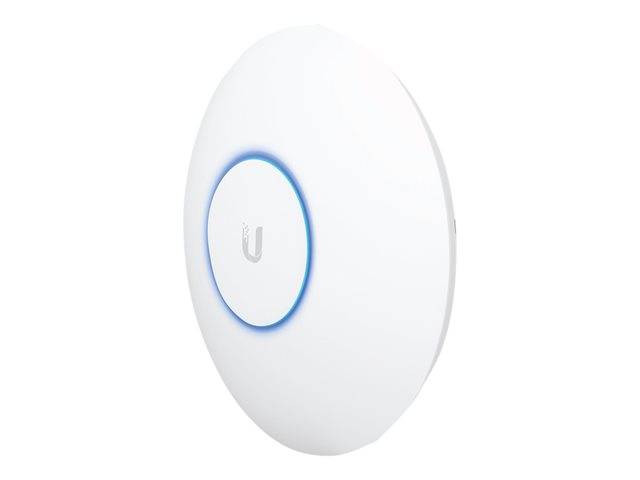

Build your Wi-Fi network with the UniFi AC HD Access Point, part of the Ubiquiti Networks UniFi Enterprise Wi-Fi System. The UAP-AC-HD, is an indoor/outdoor, high-performance, 802.11AC Wave 2 dual-band access point, capable of throughput speeds of up to 2533 Mbps and a maximum range of up to 122 meters. Engineered from the ground up to take advantage of 802.11AC Wave 2, the UAP-AC-HD provides unparalleled multi-user support.

Product Specification

Device Type	Radio access point
Width	22 cm
Depth	4.81 cm
Height	22 cm
Weight	700 g
Form Factor	External
Connectivity Technology	Wireless
Data Transfer Rate	1.733 Gbps
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ac Wave 2
Frequency Band	2.4 GHz, 5 GHz
Capacity	BSSIDs per radio: 1 - 4 ¦ Number of concurrent clients: 500+
Features	Uplink, VLAN support, wall mountable, Wi-Fi Multimedia (WMM) support, Quality of Service (QoS), reset button, ceiling mountable, 4T4R MIMO technology
Encryption Algorithm	AES, TKIP, WPA, WPA2, WPA-PSK, WEP
Authentication Method	Basic Service Set Identifier (BSSID)
Compliant Standards	IEEE 802.1Q, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11ac Wave 2
Antenna	Internal
Antenna Qty	4
Interfaces	2 x 1000Base-T (PoE+) - RJ-45
Included Accessories	Mounting brackets
Compliant Standards	IC, FCC
Power Over Ethernet (PoE) Supported	PoE+
Power Consumption Operational	17 Watt
Min Operating Temperature	-10 °C
Max Operating Temperature	70 °C
Humidity Range Operating	5 - 95% (non-condensing)
