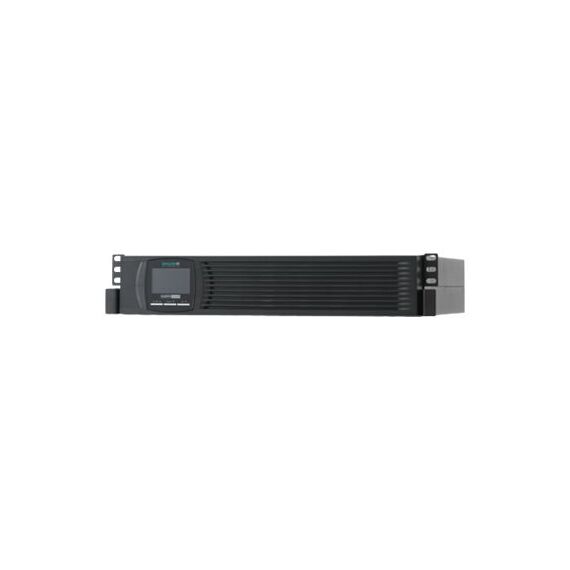

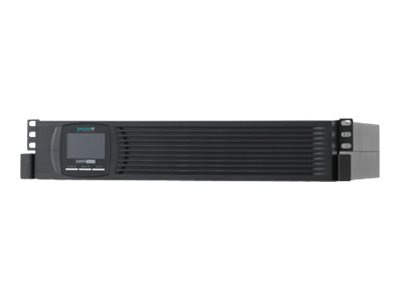

Online USV X1000R - UPS (rack-mountable) - AC 230 V - 1000 Watt - 1000 VA 9 Ah - RS-232, USB - output connectors: 8 - 2U - 19" | X1000R
X1000R
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | UPS - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Power Device | |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 110 - 300 V / 160 - 300 V |
| Frequency Provided | 50/60 Hz ± 3Hz |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60320 C14 |

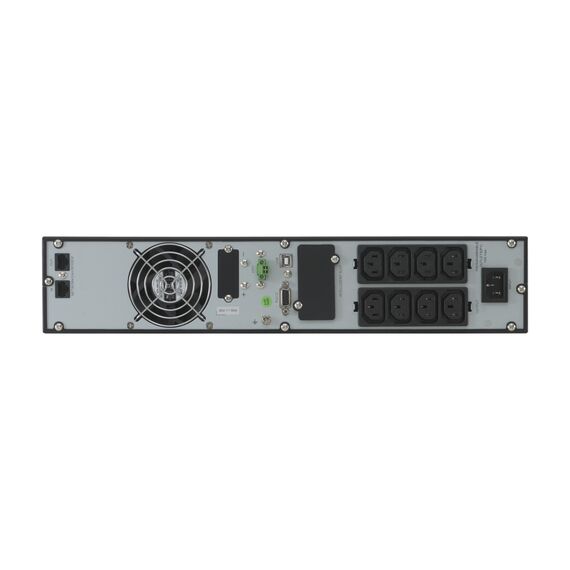

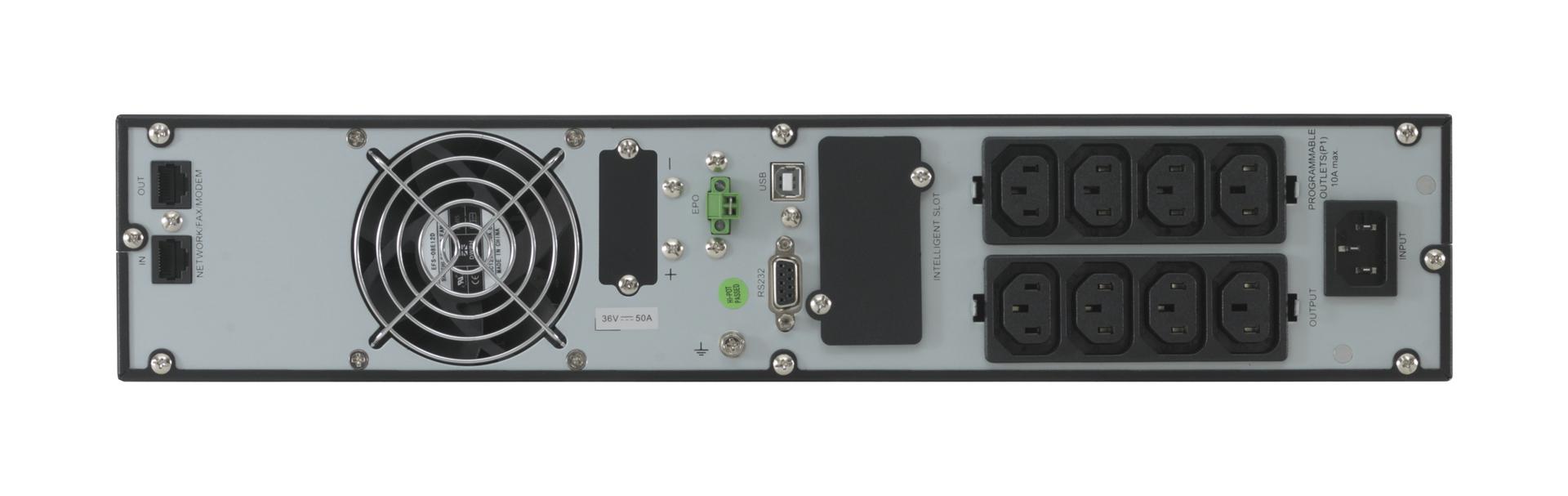

| Power Output Connectors Details | 8 x power IEC 60320 C13 |
| Output Voltage | AC 208/220/230/240 V ± 1% - 50/60 Hz |
| Power Capacity | 1000 Watt / 1000 VA |
| Output Waveform | Sinewave |
| Efficiency | 97% |
| Battery | |
| Type | Expandable |
| Quantity | 3 |
| Capacity | 9 Ah |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Remote Management Protocol | SNMP |
| Expansion / Connectivity | |
| Interfaces | Management (RS-232) ¦ Management (USB) ¦ EPO (emergency power off) |
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot |
| Miscellaneous | |
| Included Accessories | Rack to tower conversion kit |
| Cables Included | USB cable - external ¦ 3 x power extension cable - external |
| Rack Mounting Kit | Included |
| MTBF | 50,000 hours |
| Features | Built-in cooling fan, cold-start function |
| Compliant Standards | EN 62040-2, IP20, EN 62040-3, EN 62040-1, VFI-SS-111 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years ¦ Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% |
| Sound Emission | 50 dB |
| Dimensions & Weight | |
| Width | 43.8 cm |
| Depth | 41.2 cm |
| Height | 8.8 cm |
| Weight | 14.1 kg |
Features - Online USV - X1000R
More Details
Product Code
0320204
EAN Code
4026908003826
Manufacturer
Online USV
