V7 / Docking station / USB-C / VGA, HDMI, DP / GigE | DOCKUCPT01
DOCKUCPT01
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Easily connect your displays and peripherals to your laptop with one USB-C Cable
- Adds HDMI, DisplayPort, and VGA display connections, Secure Digital (SD) and Micro SD slots, Gigabit Ethernet, Audio, and extra USB ports simultaneously

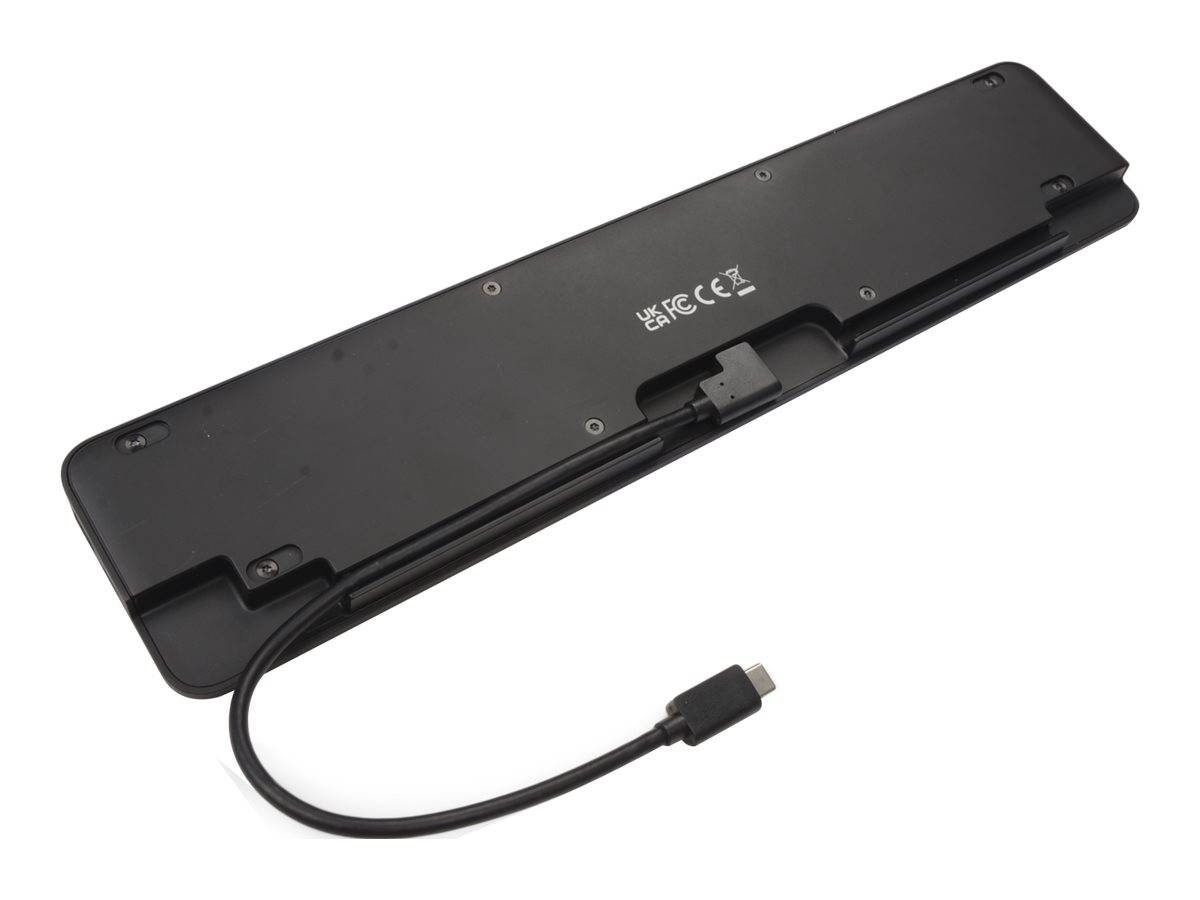

- The USB-C cable can be routed through the bottom of the docking station for maximum flexibility
- USB-C PD pass through charging of your device up to 100 Watts (20V/5A) with fast role swap
- Rest your laptop on top of the docking station for ventilation and to save desktop space
Product Specification
| Product Type | Docking station |
| Width | 7.4 cm |
| Depth | 34.95 cm |
| Height | 1.8 cm |
| Enclosure Colour | Black |
| Video | Video |
| Max Resolution Details | 4K - 30 Hz (HDMI only) ¦ 1920 x 1200 - 60 Hz (VGA only) ¦ 4K - 30 Hz (DisplayPort only) |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD |
| Interfaces | 1 x USB-C with Power Delivery (100 W) - 24 pin USB-C ¦ 1 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm ¦ 1 x audio / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 3 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x USB-C - 24 pin USB-C |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x USB-C cable - external |
| Features | Security lock slot (cable lock sold separately), MST (multi-stream transport), pass-through charging |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC, HDCP 1.4, UKCA |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 11.5 cm |
| Shipping Depth | 39 cm |
| Shipping Height | 3.5 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 45 °C |
Features - V7 - DOCKUCPT01
More Details
Product Code
CA66449
EAN Code
0662919111934
Manufacturer
V7
