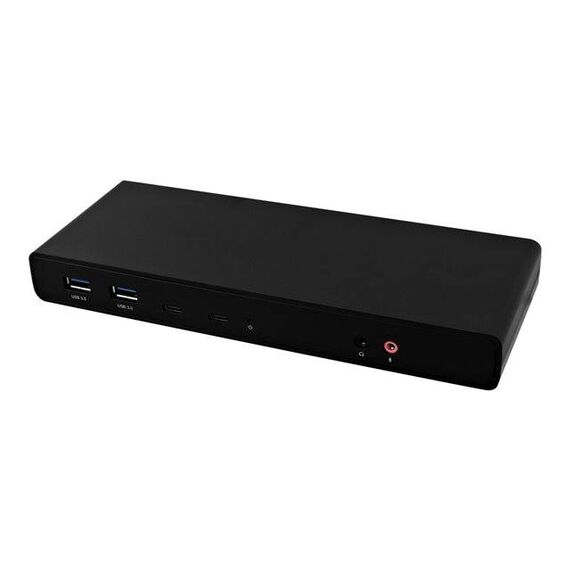

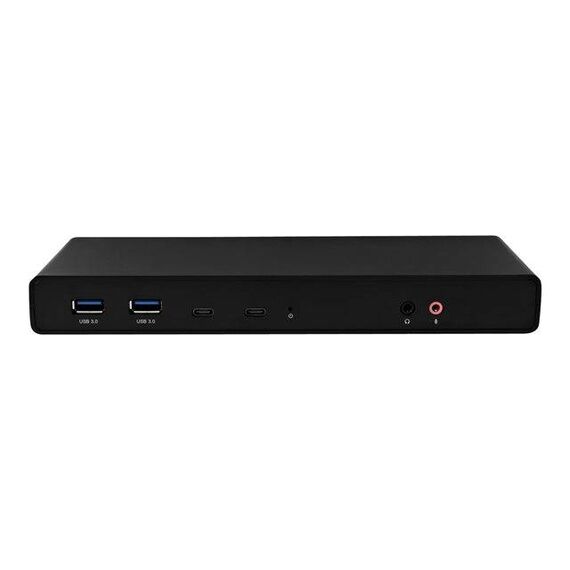

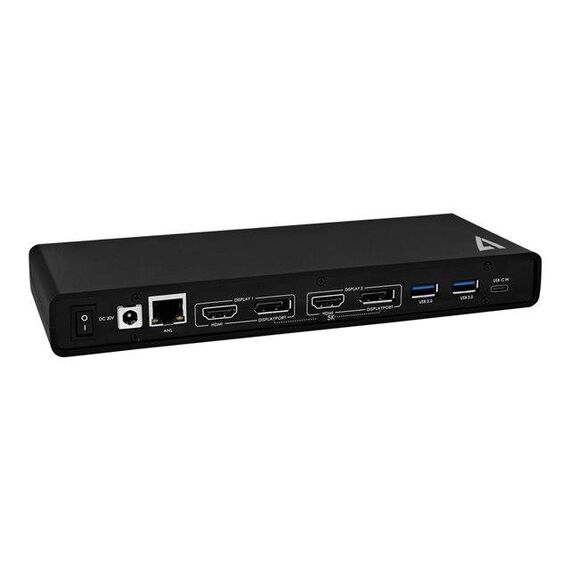

V7 UCDDS-1E / Docking station / USB-C / USB 3.0 / 2 x HDMI, 2 x DP / GigE | UCDDS-1E
V7 UCDDS-1E / Docking station / USB-C / USB 3.0 / 2 x HDMI, 2 x DP / GigE | UCDDS-1E
Description
The UCDDS Universal USB-C Docking Station from V7 adds HDMI, DisplayPort, Audio, Ethernet, and USB-C plus USB 3.0 to almost any computer, all while charging your device up to 65 Watts. It features HDMI and DisplayPort monitor outputs that can be used to expand or mirror your desktop for the ultimate in productivity. Both HDMI and DisplayPort outputs support video resolution up to 4K for a stunning display no matter what's on screen. This all-in-one solution combines USB-C and USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, making it the perfect accessory for easily connecting to all of your devices while charging at the same time.
Product Specification
Product Type | Docking station |
Width | 8.5 cm |
Depth | 25.5 cm |
Height | 2.5 cm |
Weight | 362 g |
Enclosure Colour | Black |
Data Link Protocol | Gigabit Ethernet |
Interfaces | 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 2 x audio / video - DisplayPort - 20 pin DisplayPort ¦ 2 x audio / video - HDMI - 19 pin HDMI Type A ¦ 1 x network - Ethernet 1000 - RJ-45 ¦ 2 x USB-C with Power Delivery - 24 pin USB-C ¦ 1 x headphones - mini-phone stereo 3.5 mm ¦ 1 x microphone - mini-phone stereo 3.5 mm |
Cables Included | 1 x USB-C to USB 3.0 type A cable ¦ 1 x USB-C 3.1 cable |
Features | Dual monitor support, 4K Ultra HD |
Compliant Standards | RoHS, FCC Part 15 Class B |
Power Device | Power adapter |
Voltage Required | AC 120/230 V |
OS Required | Microsoft Windows 7 SP1 or later, Apple MacOS X 10.9 or later, Windows 8 / 10 |
Service & Support | Limited warranty - 2 years |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
