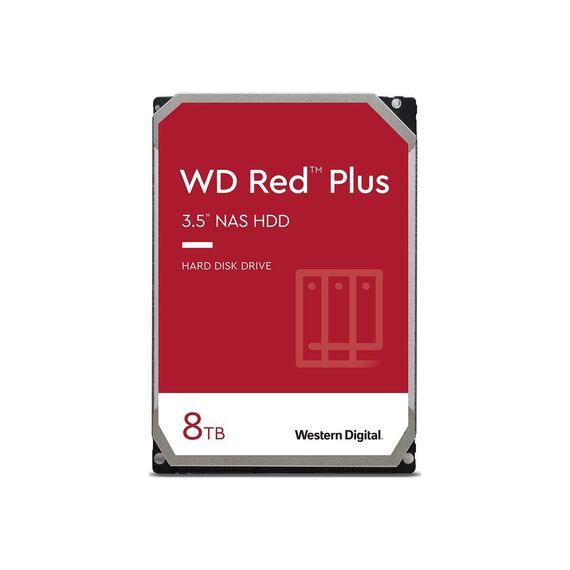

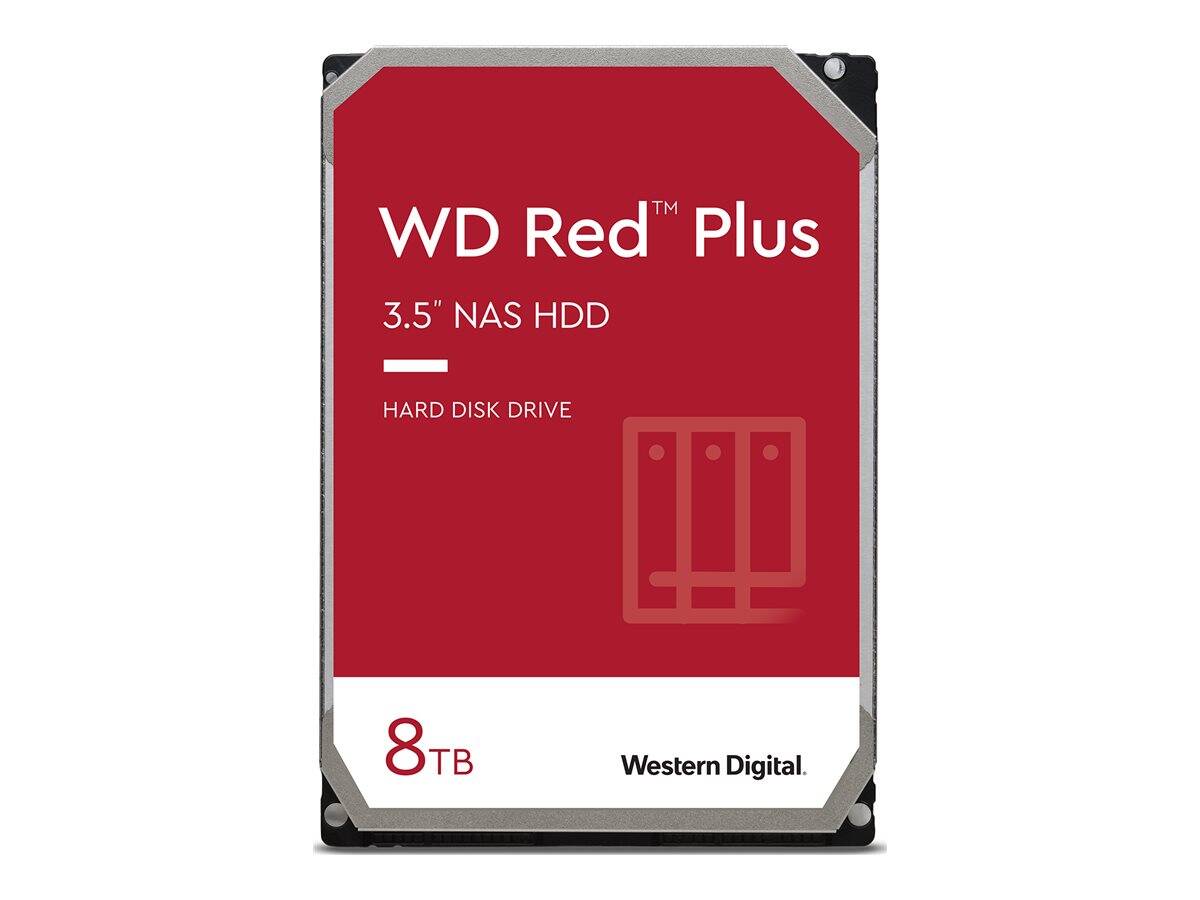

WD Red Plus WD80EFPX - Hard drive - 8 TB - internal - 3.5" - SATA 6Gb/s - 5640 rpm - buffer: 256 MB | WD80EFPX
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 8 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 256 MB |
| Features | Advanced Format technology, NASware technology, 24x7 continuous operation, Dual-Plane Balance, Conventional magnetic recording (CMR) |
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 715 g |
| Performance | |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 215 MBps |
| Spindle Speed | 5640 rpm |
| Reliability | |
| MTBF | 1,000,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^14 |
| Load / Unload Cycles | 600,000 |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5" |
| Power | |
| Power Consumption | 5.2 Watt (read) ¦ 5.2 Watt (write) ¦ 3.1 Watt (idle) ¦ 0.3 Watt (sleep) |
| Miscellaneous | |
| Compliant Standards | UL, TUV, BSMI, ICES-003, FCC, KC, Directive 2011/65/EU, RCM, Directive 2015/863, UKCA, CB Scheme, Maghreb |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 65 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Shock Tolerance (operating) | 70 g @ 2 ms |
| Shock Tolerance (non-operating) | 250 g @ 2 ms |
| Sound Emission | 24 dBA |
Features - Western Digital - WD80EFPX
Form Factor
- 3.5"
- Internal
Capacity
8TB
Interface
- SATA
More Details
Product Code
CJ47788
EAN Code
0718037899817
Manufacturer
Western Digital
