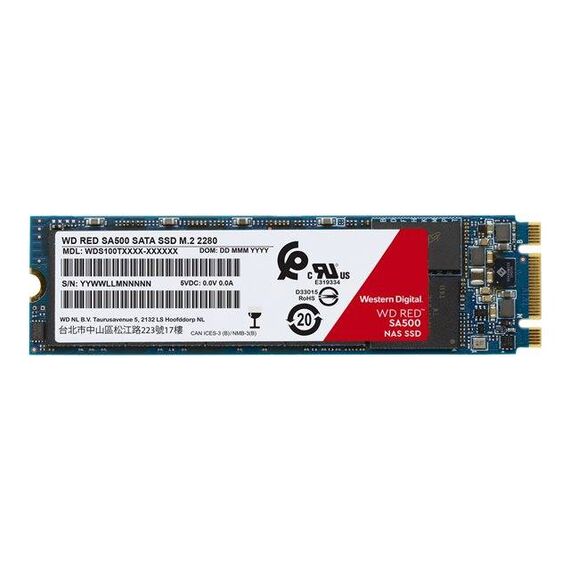

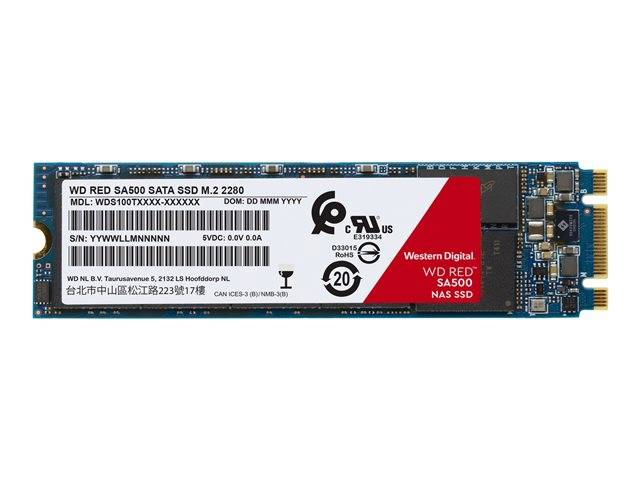

WD Red SA500 NAS SATA SSD WDS200T1R0B / Solid state drive / 2 TB / internal / M.2 2280 / SATA 6Gb/s | WDS200T1R0B
Please sign in so that we can notify you about a reply
WD Red SA500 NAS SATA SSD WDS200T1R0B / Solid state drive / 2 TB / internal / M.2 2280 / SATA 6Gb/s | WDS200T1R0B
Description
Boost your NAS system's performance and responsiveness with the WD Red SA500 NAS SATA SSD. Since your NAS system is always on, a reliable drive is essential. Unlike standard SSDs, WD Red NAS SATA SSDs are specifically designed and tested for 24/7 usage. This durability together with efficient caching of big files make these drives ideal for OLTP databases, multi-user environments, photo rendering, 4k and 8k video editing and other demanding applications. With 2.5" and M.2 form factors and capacities from 500GB up to 4TB (2.5" only), the WD Red SA500 NAS SATA SSD lets you optimize your existing or next NAS system for superior performance and endurance.
WD Red SA500 NAS SATA SSD WDS200T1R0B / Solid state drive | WDS200T1R0B
Special Features
- Superior endurance for 24x7 environments
- Purpose-built for NAS with proven Western Digital 3D NAND
- Reduced latency, improved responsiveness for demanding applications
- 2.5" and M.2 form factors fit modern NAS slots
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 2 TB |
| Form Factor | M.2 2280 |
| Interface | SATA 6Gb/s |
| Features | 24x7 continuous operation, 3D NAND Technology |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 7 g |
| SSD Endurance | 1300 TB |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 560 MBps (read) / 530 MBps (write) |
| 4KB Random Read | 95000 IOPS |
| 4KB Random Write | 85000 IOPS |
| MTBF | 2,000,000 hours |
| 24x7 Operation | Yes |
| Interfaces | 1 x SATA 6 Gb/s - M.2 Card |
| Compatible Bay | M.2 2280 |
| Power Consumption | 60 mW (active) ¦ 3000 mW (read) ¦ 3800 mW (write) ¦ 56 mW (sleep) ¦ 12 mW (DevSleep) |
| Compliant Standards | UL, TUV, VCCI, BSMI, FCC, KC, Morocco |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -55 °C |
| Max Storage Temperature | 85 °C |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms half-sine |
| Vibration Tolerance (operating) | 5 g @ 10-2000 Hz |
| Vibration Tolerance (non-operating) | 4.9 g @ 7-800 Hz |
Features - Western Digital - WDS200T1R0B
Form Factor
- 2.5"
- Internal
Capacity
2TB
Interface
- M.2
More Details
Product Code
04:325138
EAN Code
0718037872339
Manufacturer
Western Digital
