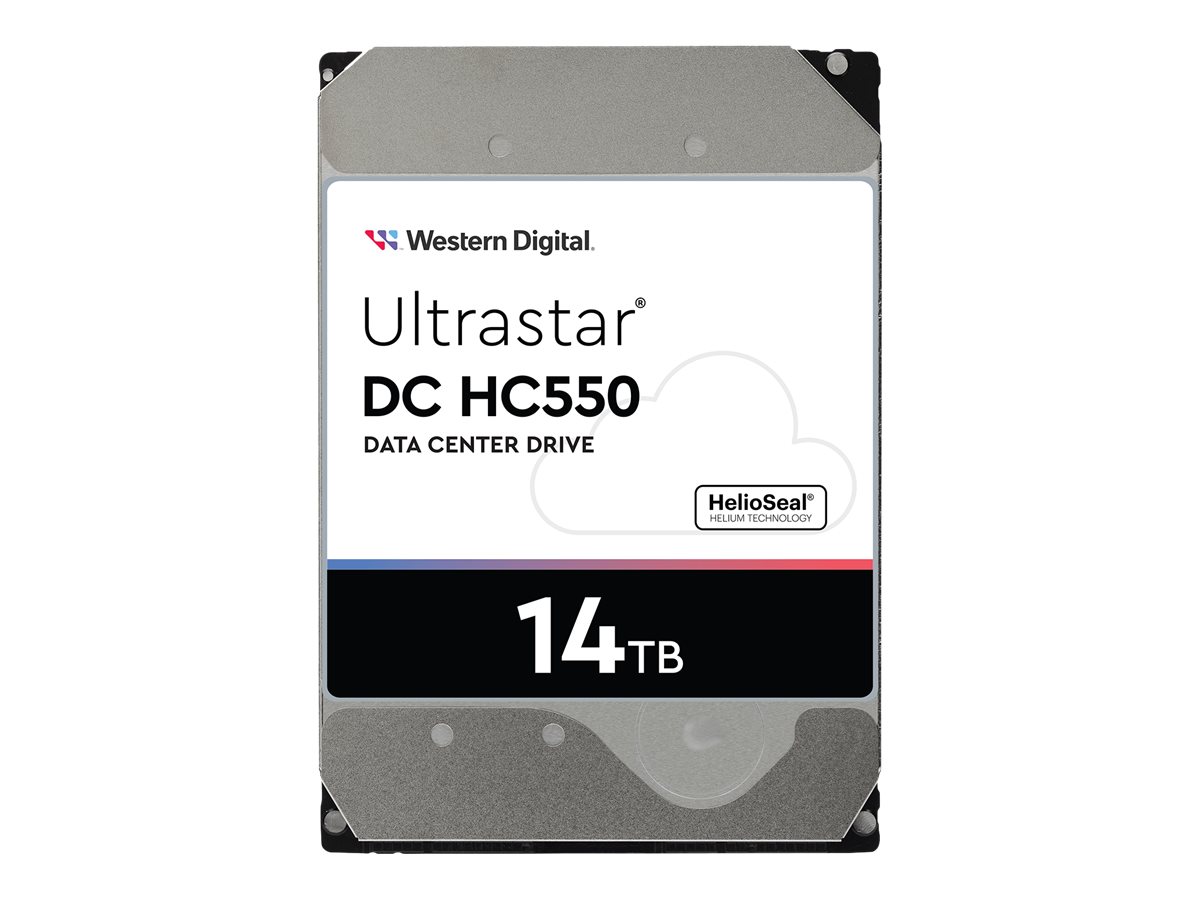

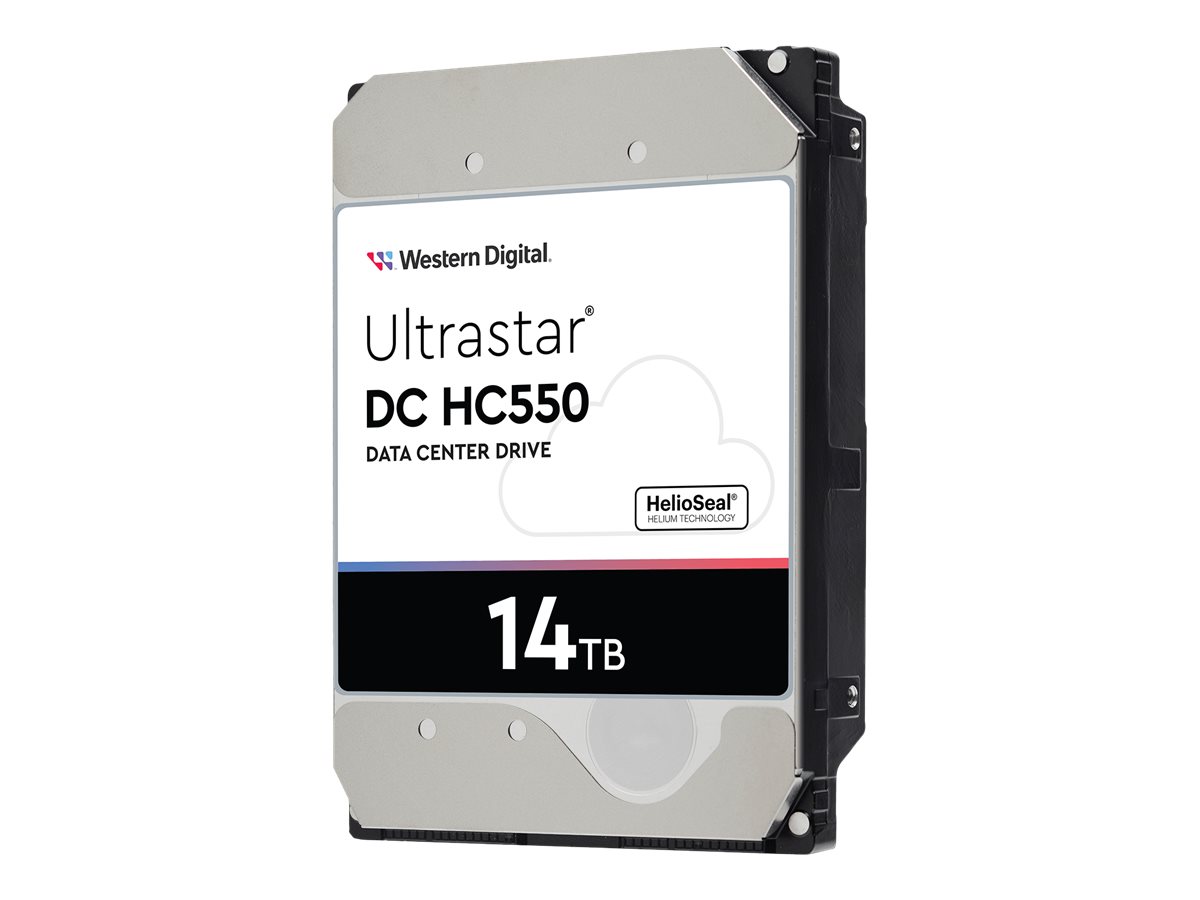

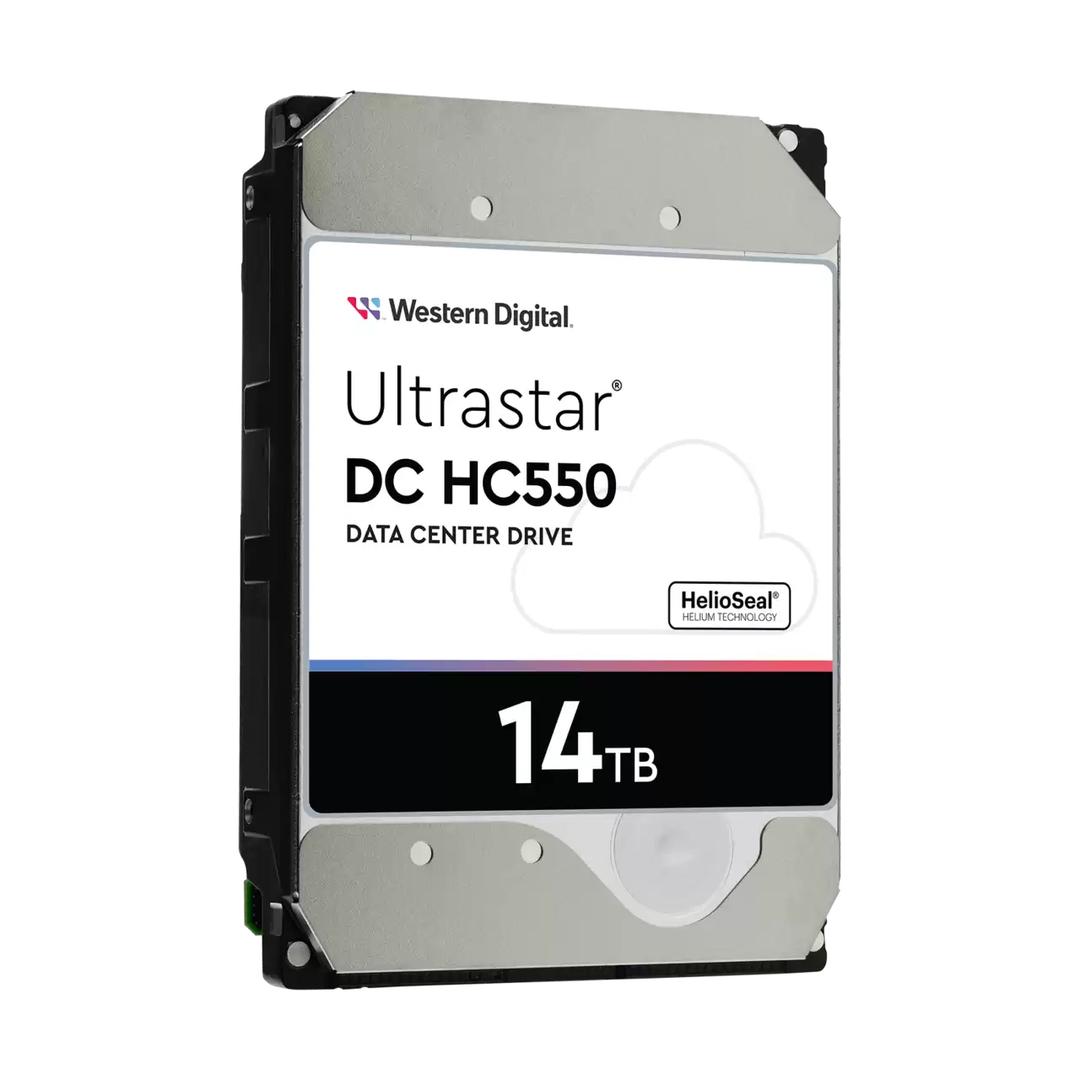

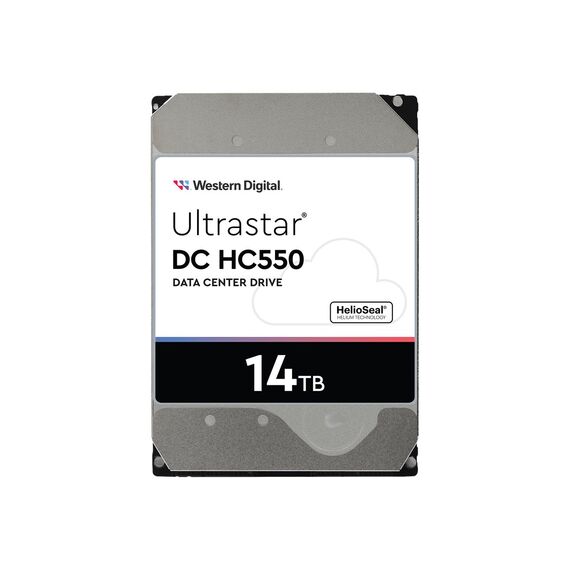

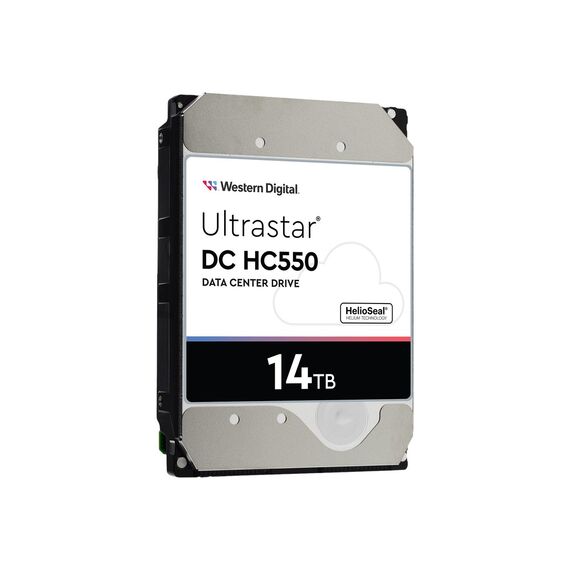

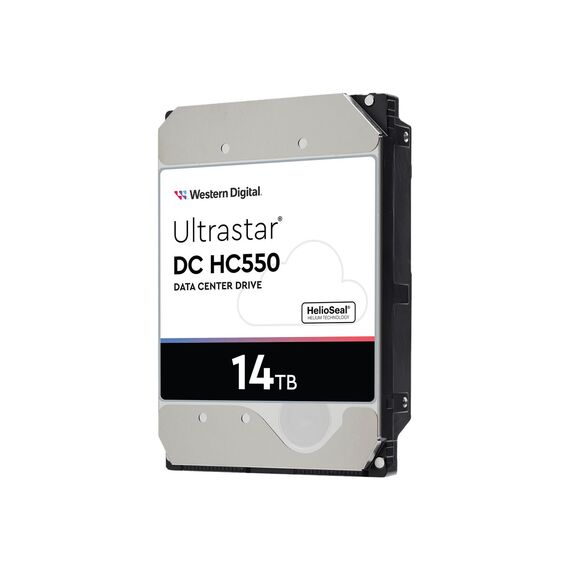

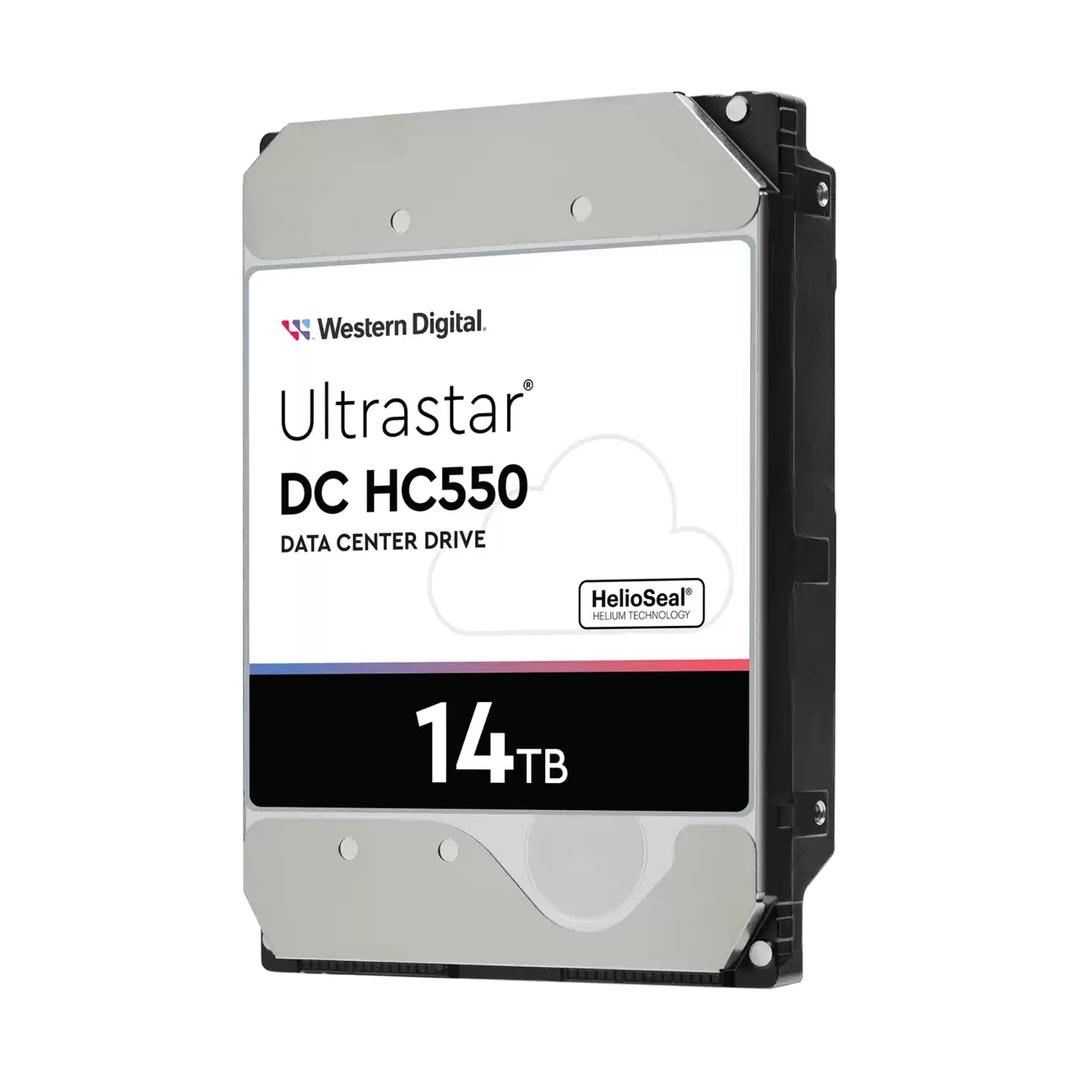

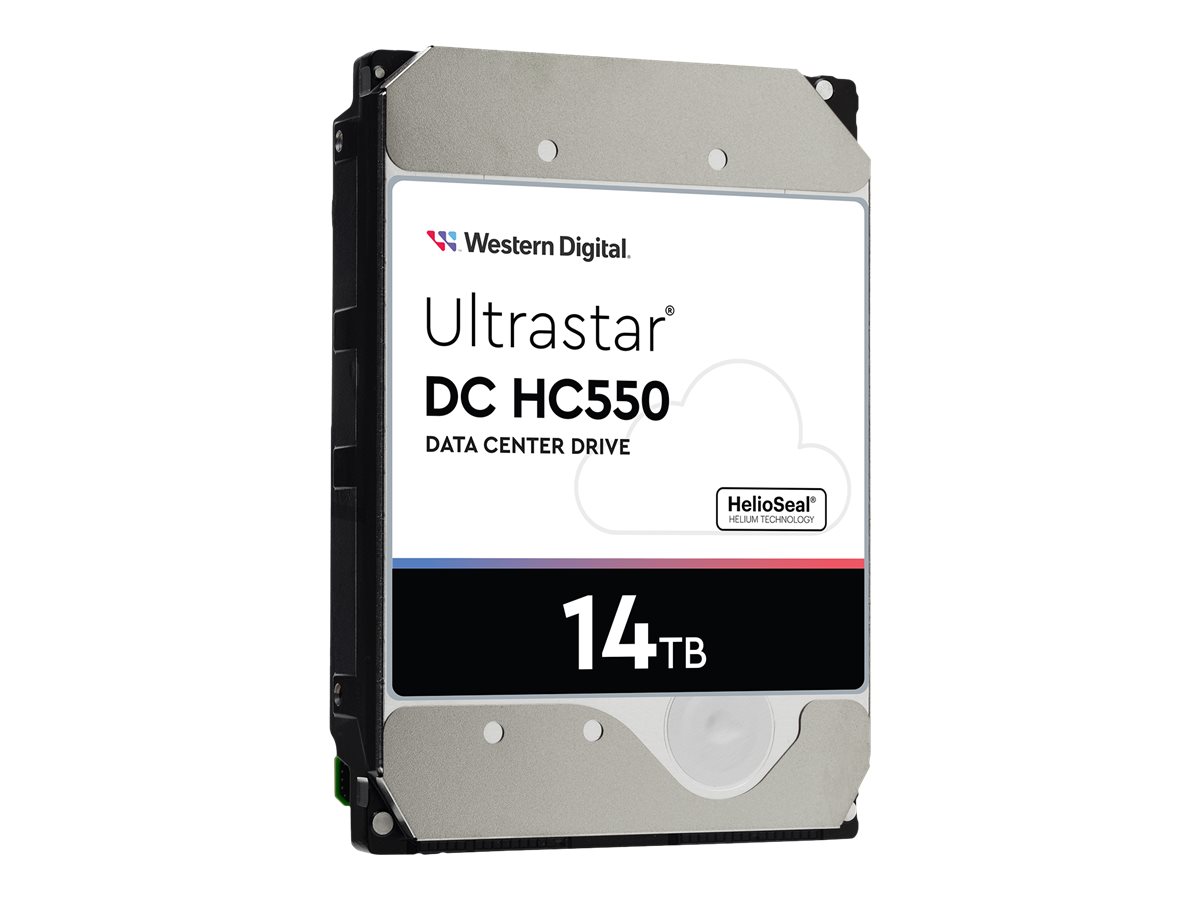

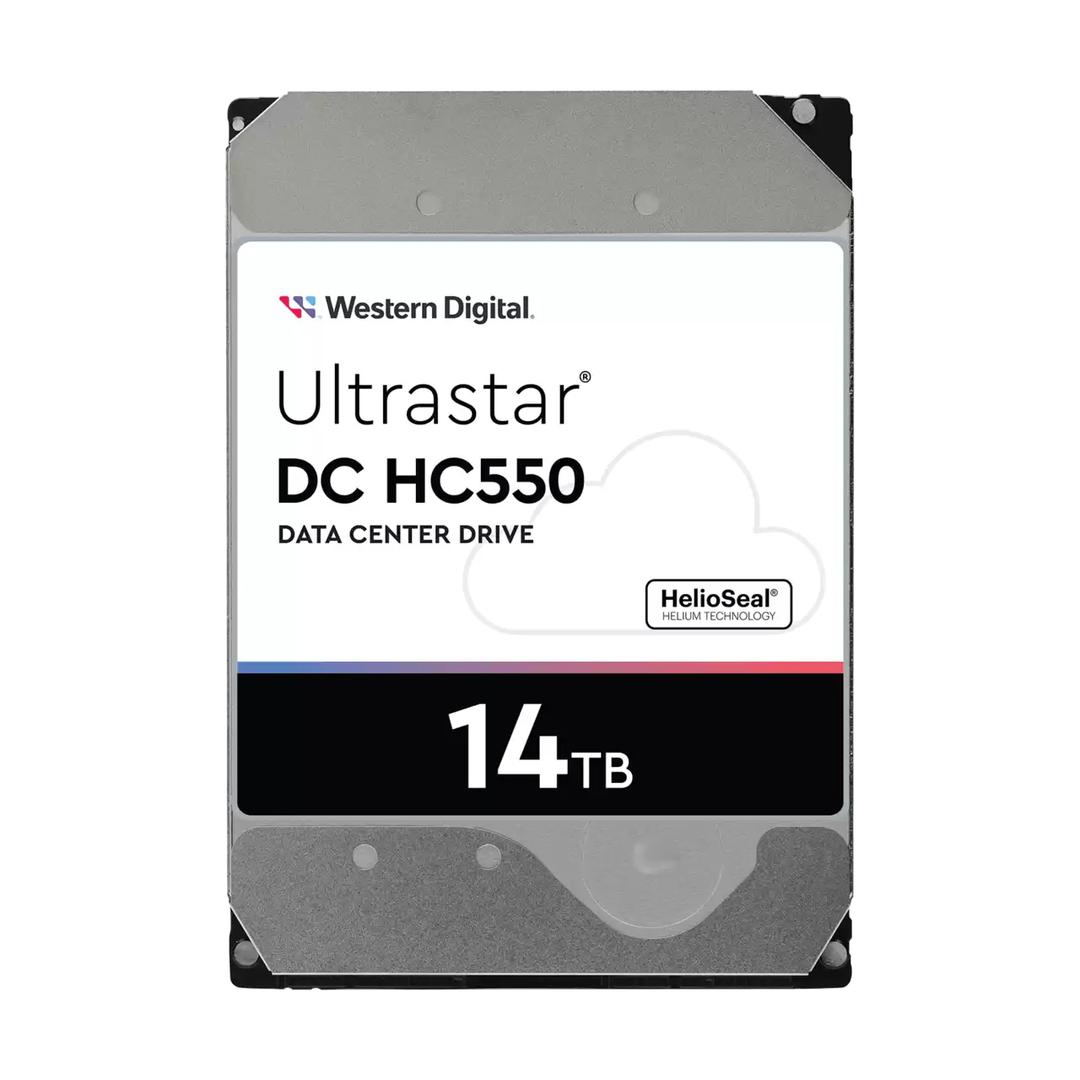

WD Ultrastar DC HC550 - Hard drive - 14 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 512 MB | 0F38581
WD Ultrastar DC HC550 - Hard drive - 14 TB - internal - 3.5" - SATA 6Gb/s - 7200 rpm - buffer: 512 MB | 0F38581
€435.16 inc. VAT
0F38581
Form Factor3.5"
Capacity14TB
InterfaceSATA
Product Code07:133328
EAN Code0829686008694
ManufacturerWestern Digital
Sales 8%
Promotion details
Sales at Singular store
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Features
- Total cost of ownership (TCO) drives the data center architecture
Data center decisions are driven by TCO. Higher capacity hard drives play a leading role in reducing TCO. Higher capacity HDDs enable data centers to lower CapEx by reducing supporting hardware and system level costs when compared to lower capacity drives. Helium-sealed, low power, high reliability drives reduce energy and maintenance costs, contributing to OpEx savings. - Raising the capacity bar with advanced technologies
Ultrastar DC HC550 integrates a suite of technologies on a 9-disk platform to create a different class of HDDs.
Special Fetures
- CMR technology works with all capacity enterprise applications and environments
- HDD with energy assisted-magnetic recording technology
- Triple stage actuator
- HelioSeal design delivers outstanding power efficiency
Product Specification
| Device Type | Hard drive - internal |
| Capacity | 14 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Buffer Size | 512 MB |
| Features | Rotational Vibration Safeguard (RVS), HelioSeal, Conventional magnetic recording (CMR), Sanitise Cryptographic Erase support, Media Cache Plus, Sanitise Cryptographic Scramble support, Two-Dimensional Magnetic Recording (TDMR), Energy-Assisted Magnetic Recording (EAMR), Triple State Actuator (TSA) |
| Width | 101.6 mm |
| Depth | 147 mm |
| Height | 26.1 mm |
| Weight | 690 g |
| Performance | |
| Drive Transfer Rate | 1.2 GBps (external) |
| Internal Data Rate | 262 MBps |
| Average Latency | 4.16 ms |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 2,500,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Load / Unload Cycles | 600,000 |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5" |
| Power | |
| Power Consumption | 8.8 Watt (operating) ¦ 5.8 Watt (idle) |
| Software & System Requirements | |
| OS Required | Linux, Microsoft Windows Server, Microsoft Windows |
| Miscellaneous | |
| Compliant Standards | UL, TUV, VCCI, BSMI, ICES-003, FCC, KC, RCM, UKCA, CB Scheme, Maghreb |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 5 °C |
| Max Operating Temperature | 60 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Shock Tolerance (operating) | 50 g @ 2 ms half-sine wave |
| Shock Tolerance (non-operating) | 250 g @ 2 ms half-sine wave |
| Vibration Tolerance (operating) | 0.67 g @ 5-500 Hz |
| Vibration Tolerance (non-operating) | 1.04 g @ 2-200 Hz |
