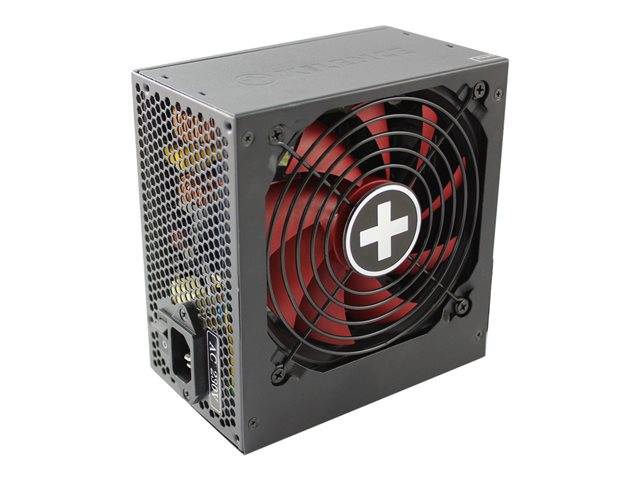

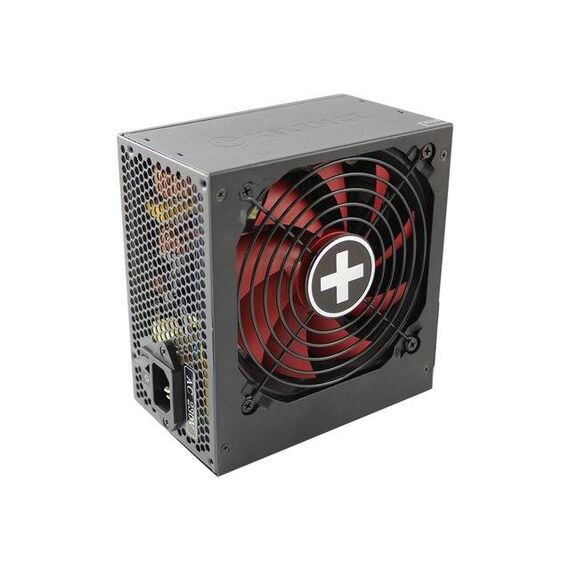

Xilence Performance X Series XP550R9 / Power supply / 80 PLUS Gold / AC 220-240 V / 550Watt / active PFC | XN071
|
Description Launching the Performance X model line, Xilence is extending the already favorable portfolio of power supply units. The PSUs score not only with the up-to-date DC/DC technology, which enables an all-time stable output voltage. Moreover, resonant converters help avoiding switching losses. Thus, energy is saved and the efficiency increased. The dynamic hydro-bearing fans work in an especially sooth and silent way. Furthermore, the PSUs win over thanks to an extremely long life period and their excellent cooling performance. All of those specifications together with being powerful in quality/cost ratio turn the Performance X series into an ideal solution for current gaming PC systems. Xilence Performance X Series XP550R9 / Power supply / 80 PLUS Gold / 550 Watt / active PFC | XN071Special Features
|
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Input Voltage | AC 220-240 V |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector ¦ 2 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 550 Watt |
| Output Current | +3.3V - 20 A ¦ +5V - 20 A ¦ +12V - 45.8 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 92% at 50% Load, 90% at 20% Load, 89% at 100% Load, 85% at 10% Load |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overload protection, undervoltage protection, short-circuit protection |
| Compliant Standards | PCT, CB, Directive 2002/95/EC, ErP 2014, TUV Rheinland |
| Sound Emission | 16 dBA |
Features - Xilence - XN071
More Details
Product Code
04:239548
EAN Code
4044953500664
Manufacturer
Xilence
