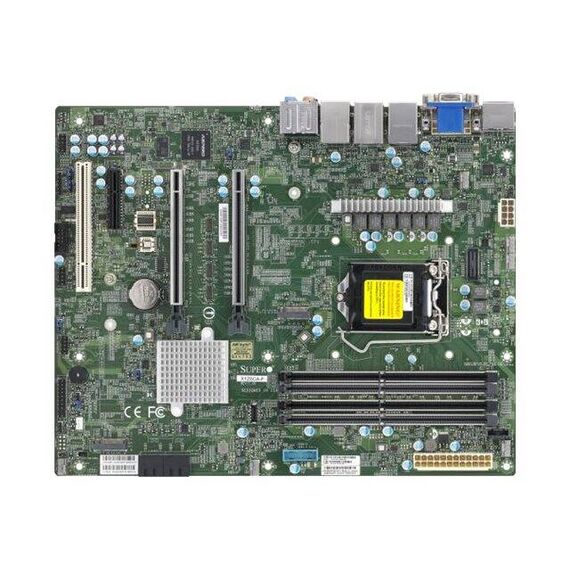

SUPERMICRO X12SCA-F / Motherboard / ATX / LGA1200 Socket / W480 Chipset / USB-C Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2 / Gigabit LAN, 2.5 Gigabit LAN / onboard graphics / HD Audio | MBD-X12SCA-F-O
Please sign in so that we can notify you about a reply
Special Features
- 8-pin 12v DC power connector
- ACPI power management
- Chassis intrusion detection
- Control of power-on for recovery from AC power loss
- CPU thermal trip support for processor protection
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel W480 |
| Processor Socket | LGA1200 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9, Xeon W (supports CPUs with up to 10 cores, Maximum TDP 125 Watt) |
| Supported RAM | Supported RAM |
| Max Size | 128 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Graphics | Graphics |
| Graphics Controller | ASPEED AST2500 |
| Audio | Audio |
| Type | HD Audio |
| Audio Codec | Realtek ALC888S |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Intel I225-LM / Intel I219LM |
| Network Interfaces | Gigabit Ethernet, 2.5 Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin (1.2 V) ¦ 2 x PCIe 3.0 x16 (dual x8 mode; single card: x16 mode) ¦ 1 x PCIe 3.0 x4 ¦ 1 x PCI (5 V) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 3.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 |
| Interfaces | 1 x LAN (Gigabit Ethernet) ¦ 1 x management ¦ 1 x VGA ¦ 1 x DisplayPort ¦ 1 x DVI-D ¦ 1 x HDMI ¦ 3 x USB 3.2 Gen 2 ¦ 1 x USB-C Gen2 ¦ 2 x USB 3.2 Gen 1 ¦ 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 1 x USB 3.2 Gen 2 - header ¦ 1 x USB 3.2 Gen 1 - header ¦ 2 x USB 2.0 - header ¦ 1 x serial - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | Power failure recovery (AC loss resume), IPMI 2.0 support, SMBIOS 3.0 support, ACPI 6.0 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | Chassis intrusion detection, Intel Active Management Technology (Intel AMT) |
| Miscellaneous | Miscellaneous |
| Included Accessories | I/O back plate |
| Cables Included | 4 x Serial ATA cable |
| Software Included | SuperDoctor 5 |
| Compliant Standards | Plug and Play |
| Width | 30.48 cm |
| Depth | 24.38 cm |
| Package Type | Retail |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - parts - 1 year ¦ Limited warranty - labour - 3 years |
Features - SUPERMICRO - MBD-X12SCA-F-O
CPU Socket
- Socket 1200
More Details
Product Code
07:212823
EAN Code
0672042414451
