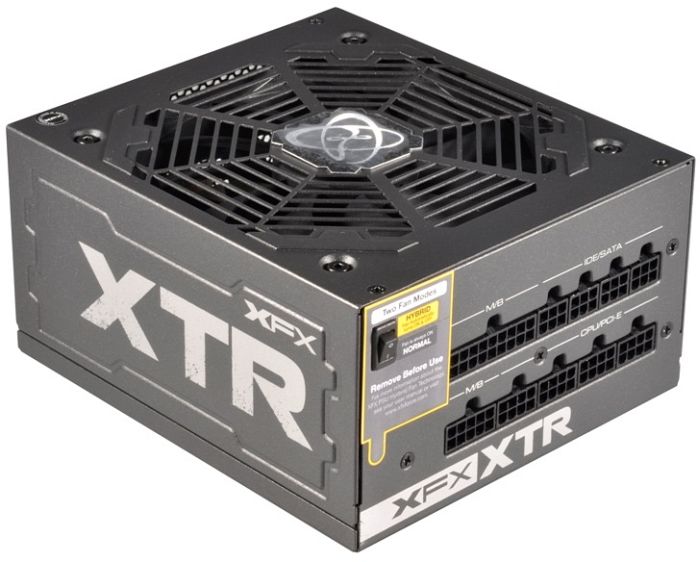

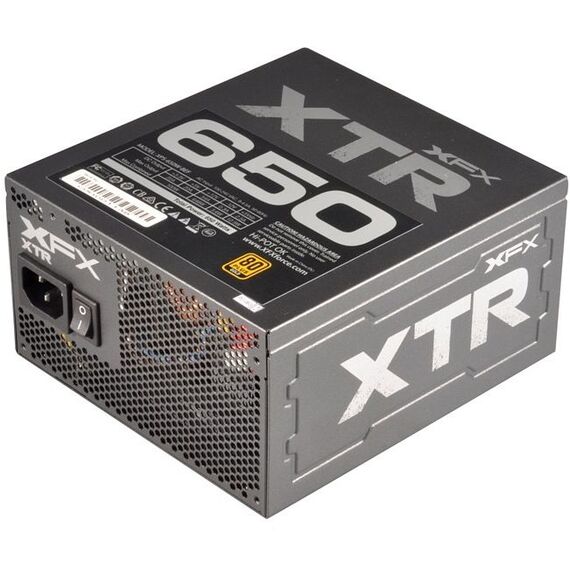

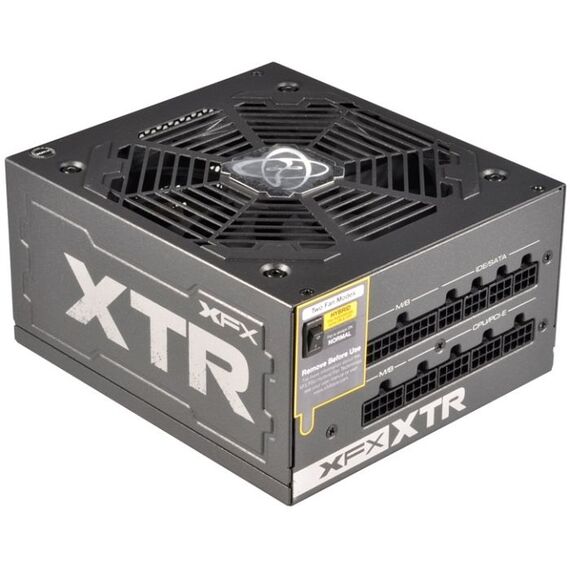

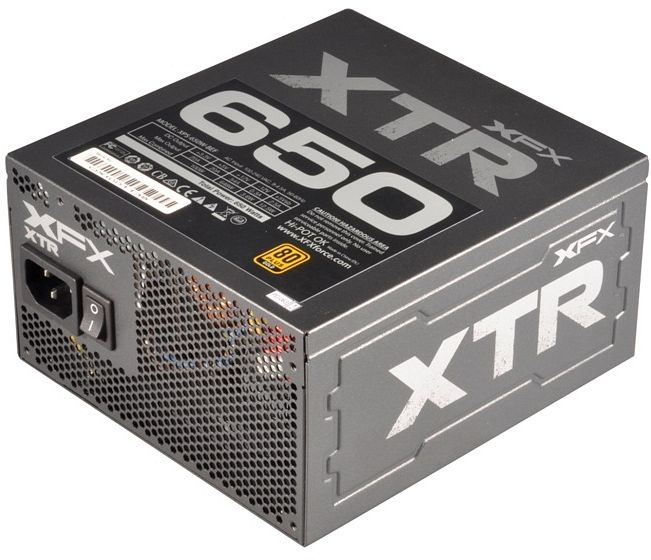

XFX XTR Series P1-650B-BEFX / Power supply (internal) / 80 PLUS Gold / AC 100-240 V / 650 Watt / active PFC | P1-650B-BEFX
XFX XTR Series P1-650B-BEFX / Power supply / 80 PLUS Gold / AC 100-240 V / 650Watt / active PFC | P1-650B-BEFX
Description The simple and powerful PSU design allows you to handle many devices without worry. No matter what combination, you've got plenty of power.80 Plus certified PSUs are the most power efficient power supplies designed to reduce lost wattage and reduce your overall power consumption. Also the high quality components ensure that your PSU will stand the test of time. XFX XTR Series P1-650B-BEFX / Power supply 80PLUS Gold 650Watt / active PFC | P1-650B-BEFXSpecial Features
Product features
|
Product Specification
Device Type | Power supply - active Power Factor Correction (PFC) - internal |
Input Voltage | AC 100-240 V |
Frequency Required | 50/60 Hz |
Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 1 x 4 PIN mini-power connector ¦ 6 x 4 PIN internal power ¦ 10 x 15 pin Serial ATA power ¦ 4 x 8 pin PCI Express power with detachable 2 pin section |
Output Voltage | +3.3, +5, ±12 V |
Max Electric Current | 4.5 A |
Power Capacity | 650 Watt |
Output Current | +3.3V - 20 A ¦ +12V - 54 A ¦ +5V - 20 A ¦ +5VSB - 2.5 A ¦ -12V - 0.3 A |
Efficiency | 90% |
Modular Cable Management | Yes |
80 PLUS Certification | 80 PLUS Gold |
Cables Included | Power cable - external |
Cooling System | 135mm fan |
Features | Overheat protection, solid capacitors, over current protection, over voltage protection, overpower protection, SLI ready, CrossFire ready, undervoltage protection, short-circuit protection, single 12V rail, hydrodynamic bearing cooling fan, Intel 4th-gen CPU (Haswell) compatible, EasyRail Plus Technology |
Shipping Width | 31.9 cm |
Shipping Depth | 16.3 cm |
Shipping Height | 21 cm |
Shipping Weight | 3.2 kg |
