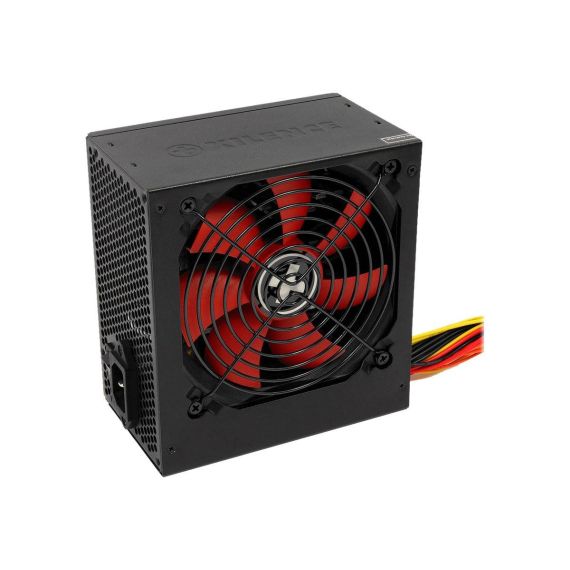

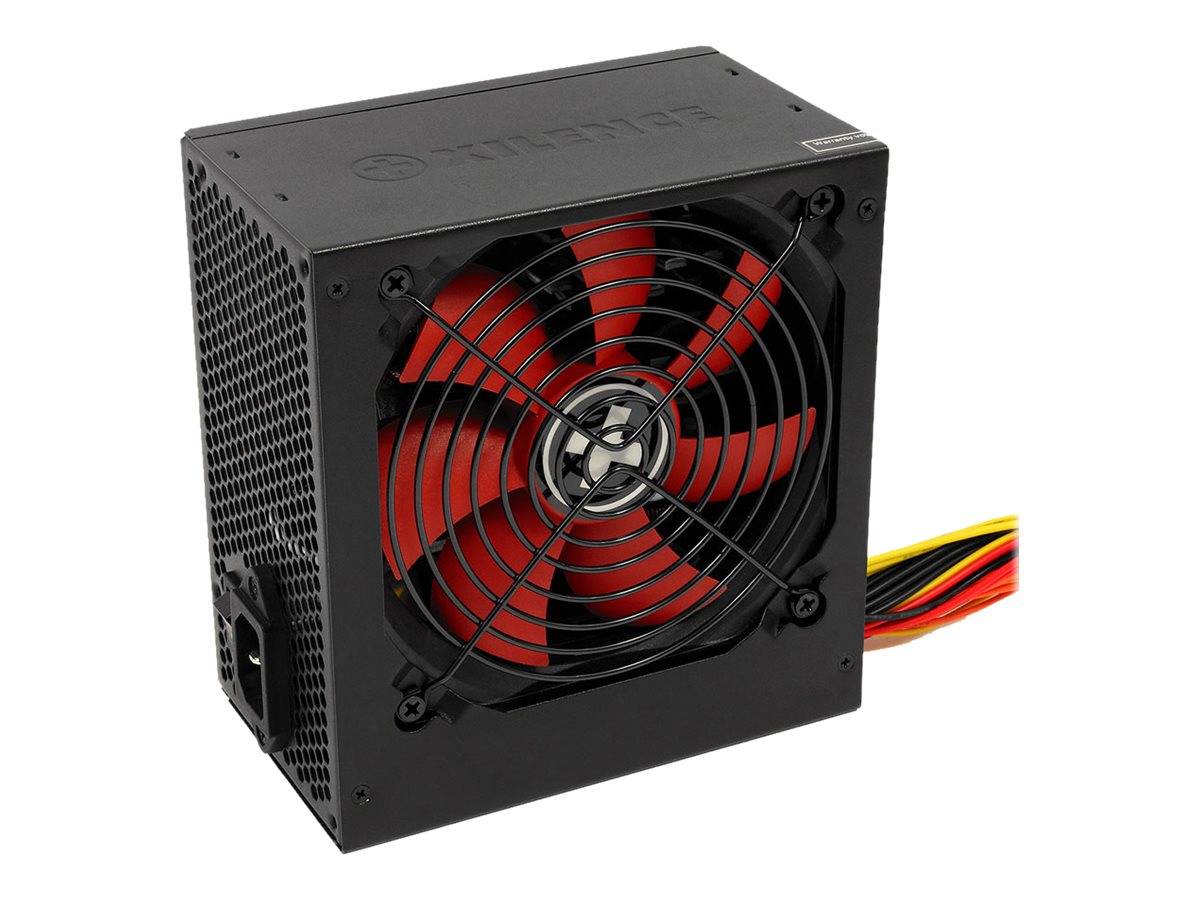

Xilence Performance C Series XP700R6 / Power supply (internal) / AC 200-240 V / 700Watt / active PFC | XN046
XN046
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Extremely silent cooling: large 120 mm fan
- Excellent air flow design for a better heat dissipation
- Following safety design
- Low stand-by consumption
- Complies with ErP2014 norm
- Active-PFC
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Power Device | Power Device |
| Input Voltage | AC 200-240 V |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 4 PIN internal power ¦ 6 x 15 pin Serial ATA power ¦ 2 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 700 Watt |
| Output Current | +3.3V - 18 A ¦ +5V - 15 A ¦ +12V1 - 30 A ¦ +12V2 - 30 A ¦ -12V - 0.3 A ¦ +5VSB - 3 A |
| Miscellaneous | Miscellaneous |

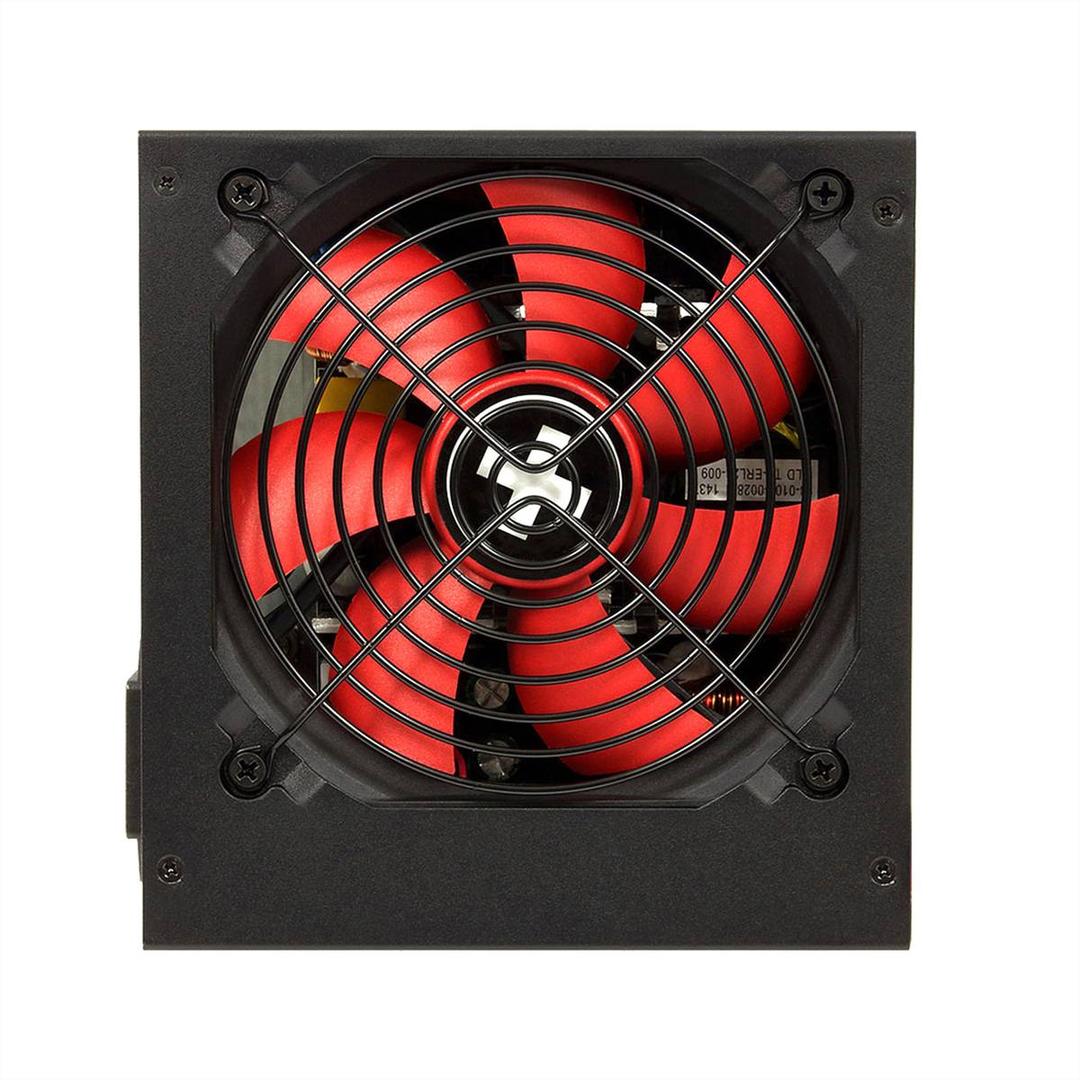

| Cooling System | 120 mm fan |
| Features | Over voltage protection, overload protection, undervoltage protection, short-circuit protection |
| Compliant Standards | CB, RoHS, WEEE, ErP 2014 |
Features - Xilence - XN046
More Details
Product Code
07:502145
EAN Code
4044953500541
Manufacturer
Xilence
