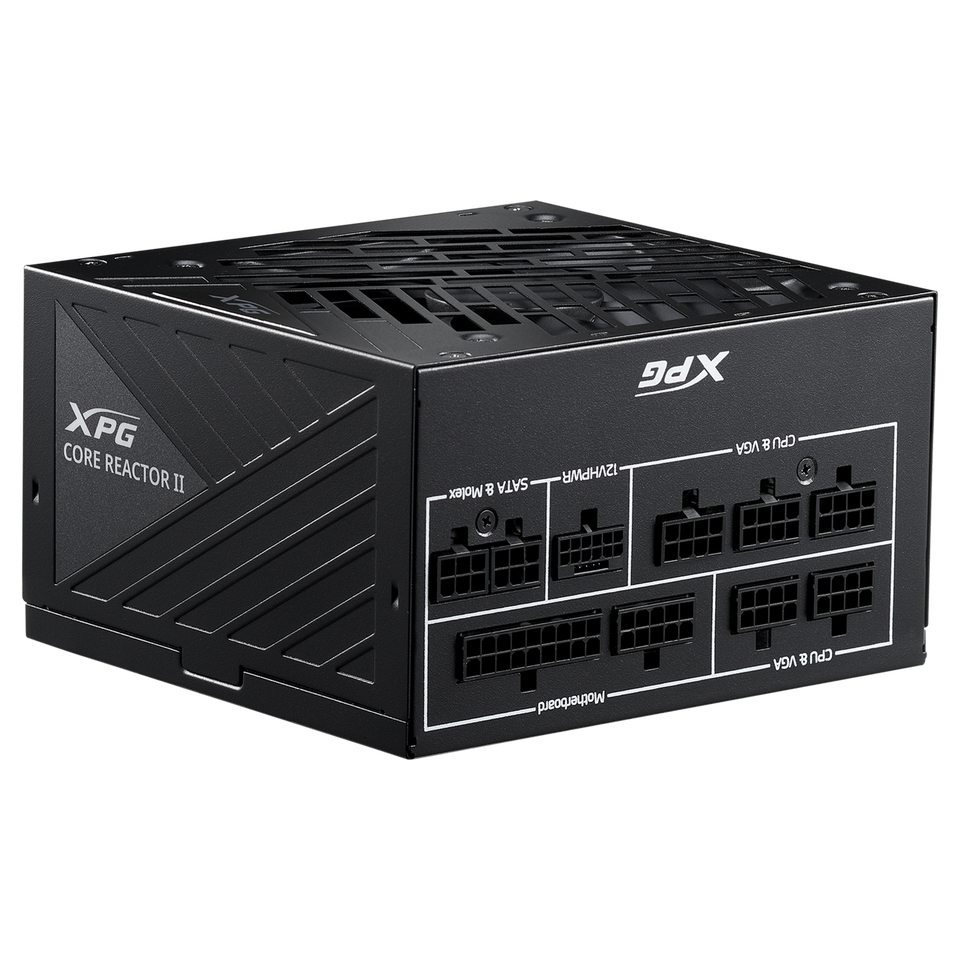

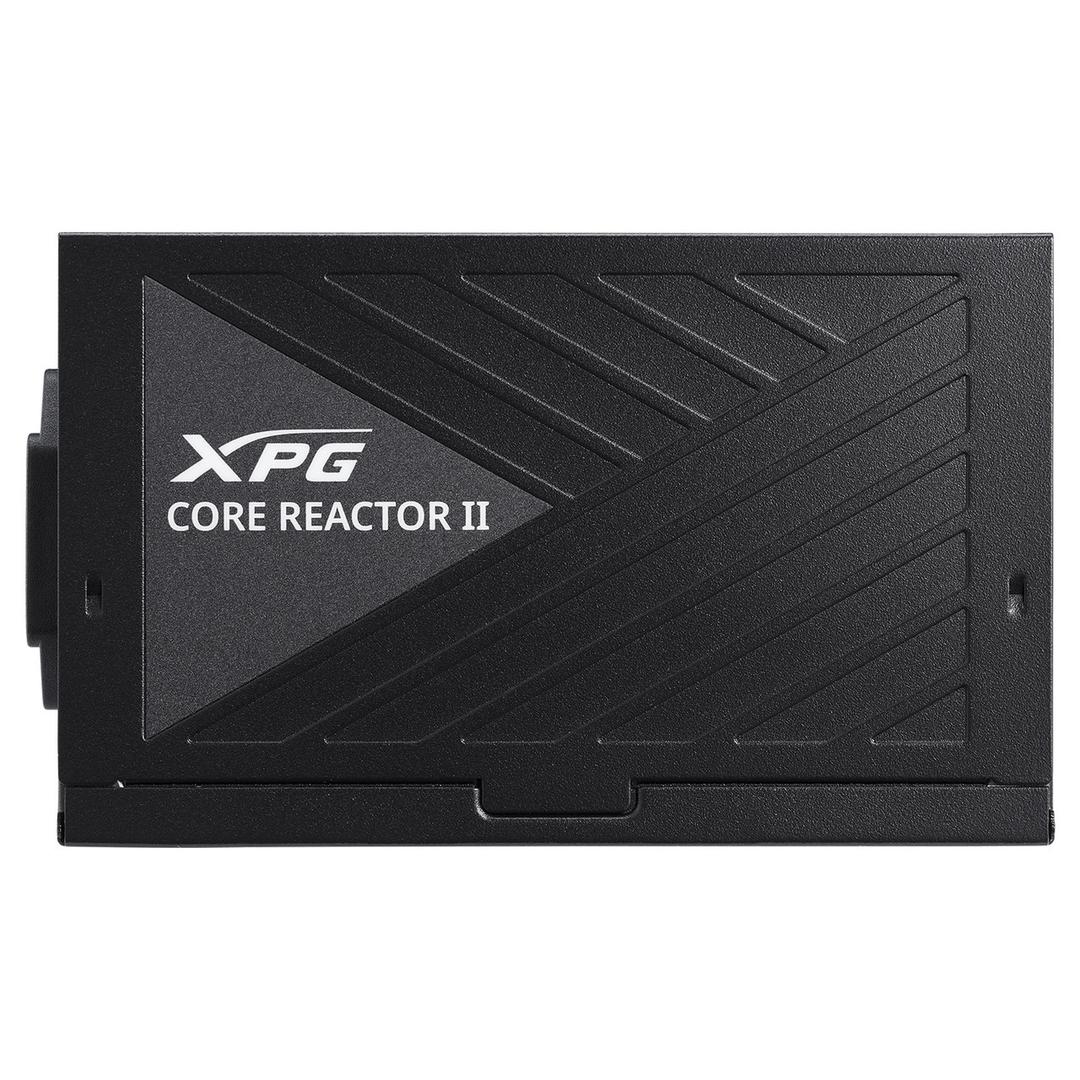

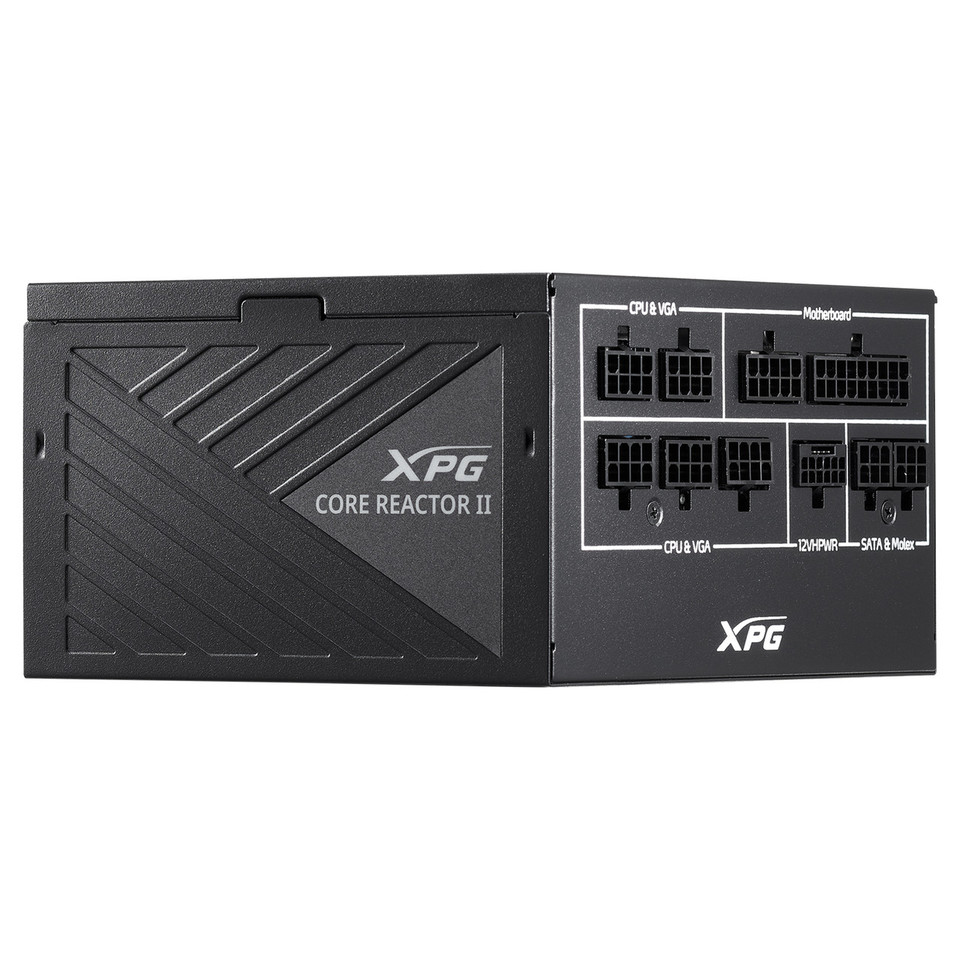

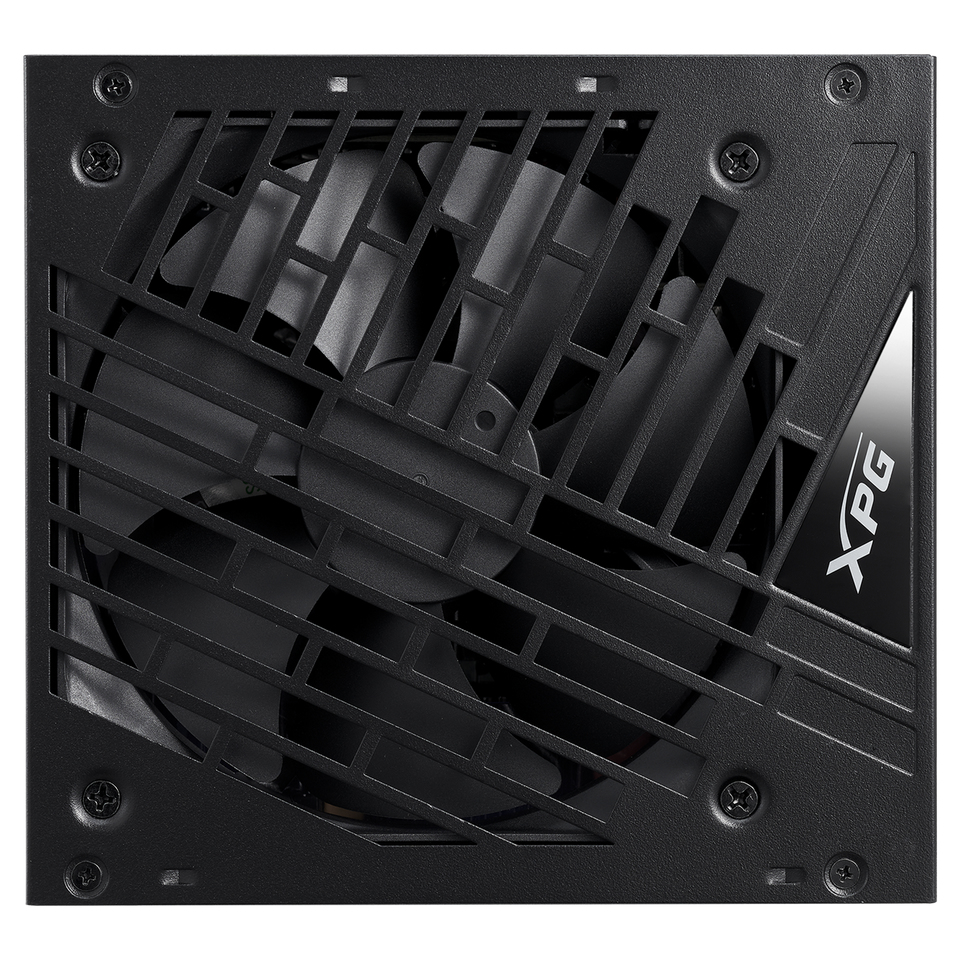

XPG CORE REACTOR II - Power supply (internal) - ATX12V 3.0/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 850 Watt - active PFC - Europe - black | 75261197
XPG CORE REACTOR II - Power supply (internal) - ATX12V 3.0/ EPS12V 2.92 - 80 PLUS Gold - AC 100-240 V - 850 Watt - active PFC - Europe - black | 75261197
€174.69 inc. VAT
75261197
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V 2.92 |
| PSU Form Factor | ATX |
| Colour | Black |
| Localisation | Europe |
| Power Device | |

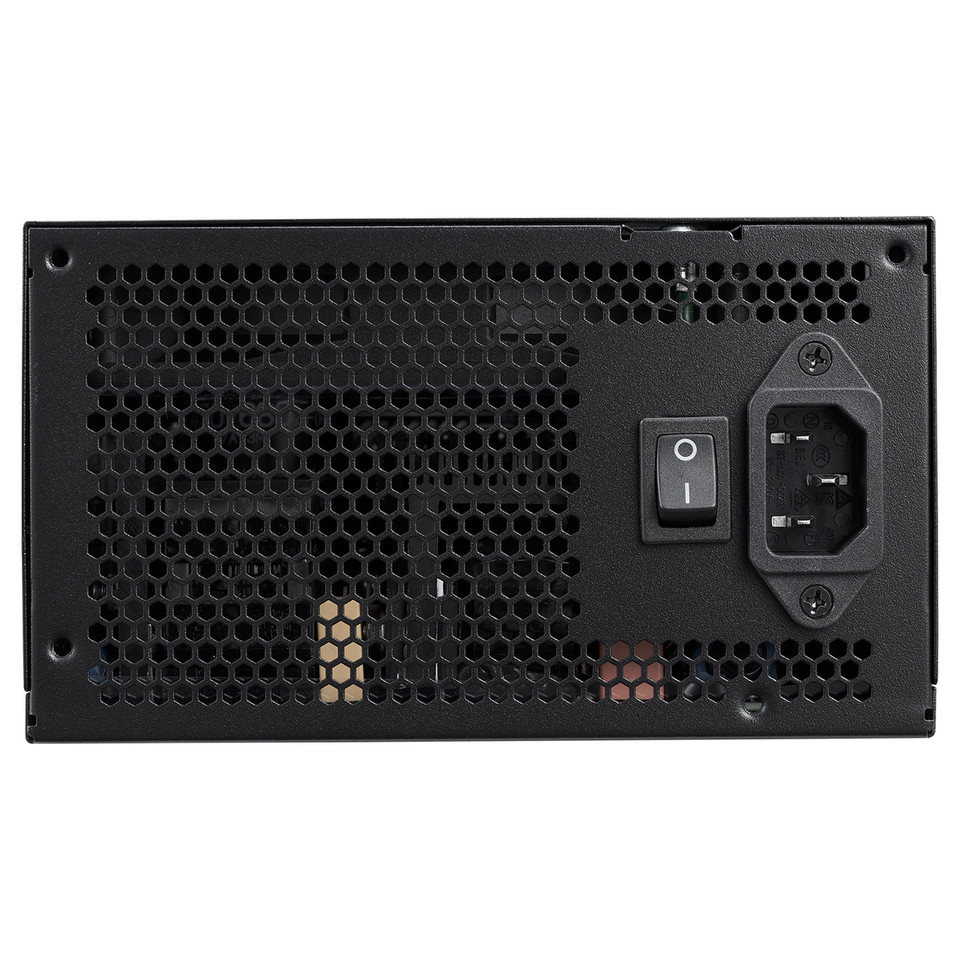

| Input Voltage | AC 100-240 V |
| Frequency Required | 47 - 63 Hz |

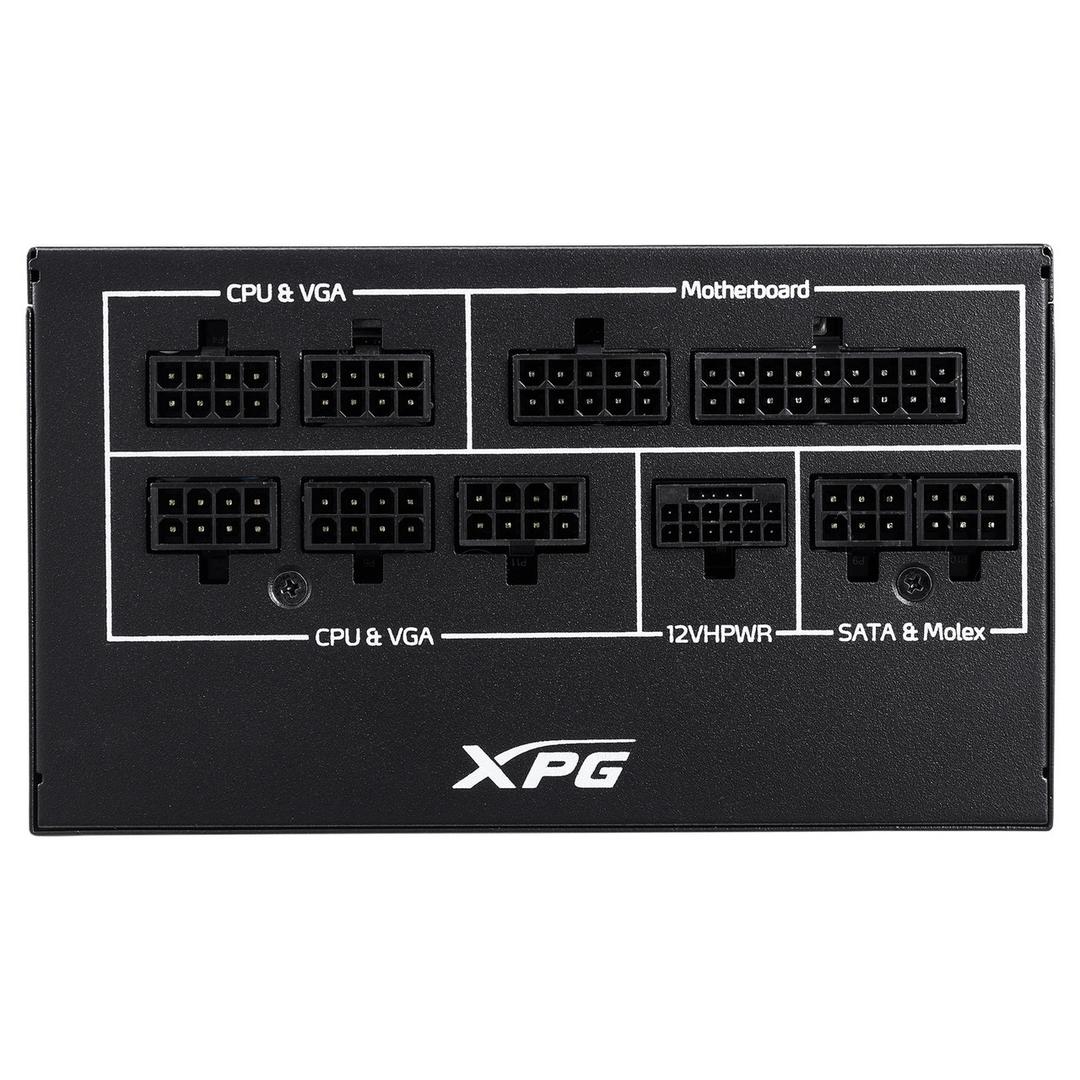

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section <br /> 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section <br /> 1 x 12VHPWR 600 W <br /> 6 x 8 pin PCI Express power with detachable 2 pin section <br /> 8 x 15 pin Serial ATA power <br /> 4 x 4 PIN internal power |
| Output Voltage | +3.3, +5, ±12 V, +5Vsb V |
| Power Capacity | 850 Watt |
| Output Current | +3.3V - 22 A <br /> +5V - 22 A <br /> +12V - 70.8 A <br /> -12V - 0.3 A <br /> +5VSB - 3 A |
| Power Factor (PF) | 0.99 |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| Cables Included | Power 24 pin ATX modular cable - external - 65 cm <br /> 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section modular cable - external - 65 cm <br /> 16-pin 12VHPWR power cable - external - 65 cm <br /> 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable - external - 65 cm <br /> 2 x 8 pin PCI Express power with detachable 2 pin section modular cable - external - 65 cm <br /> 2 x 15 pin Serial ATA power modular cable - external <br /> 4 pin internal power cable - external |
| MTBF | 100,000 hours |

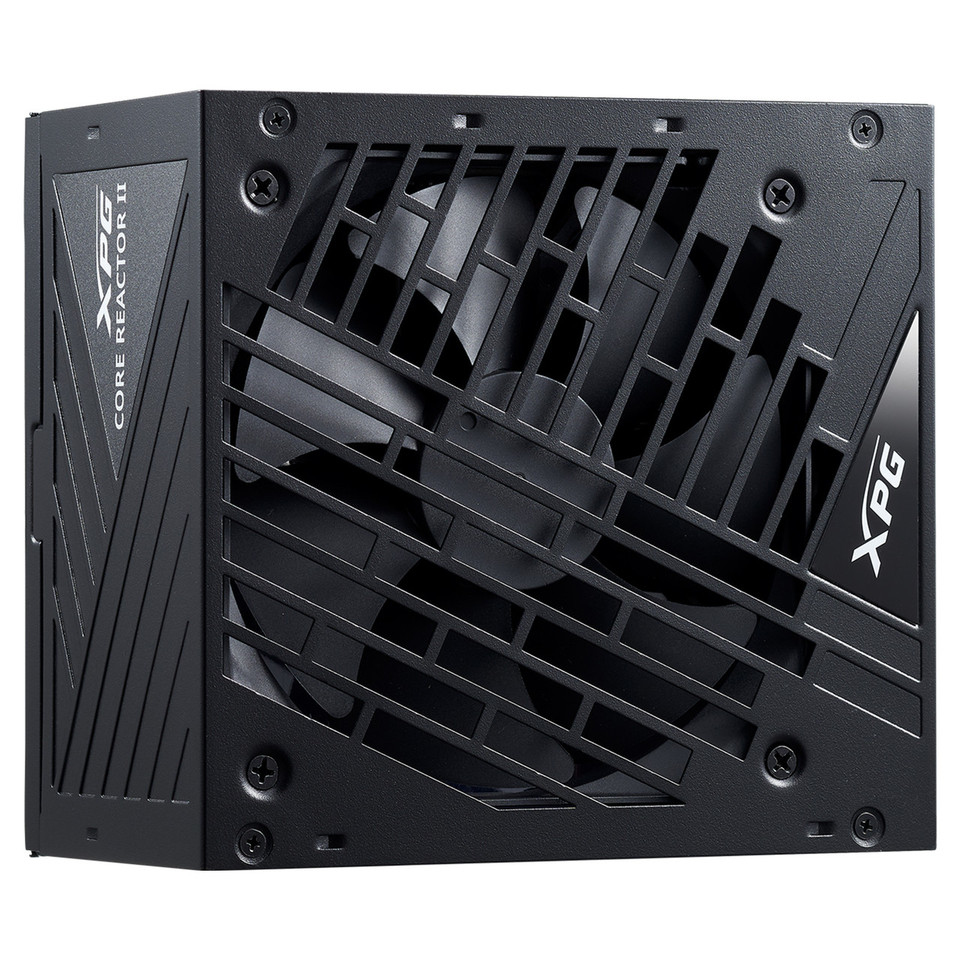

| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, surge & inrush protection, fluid dynamic bearing cooling fan, no load operation protection, Cybenetics Platinum |
| Compliant Standards | TUV, BSMI, NOM, CB, CCC, FCC, S Mark, cTUVus, EAC, RCM, UKCA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Environmental Parameters | |
| Max Operating Temperature | 50 ?C |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.596 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.1 kg |
Features - ADATA - 75261197
More Details
Product Code
04:490519
EAN Code
4711085942388
Manufacturer
ADATA
