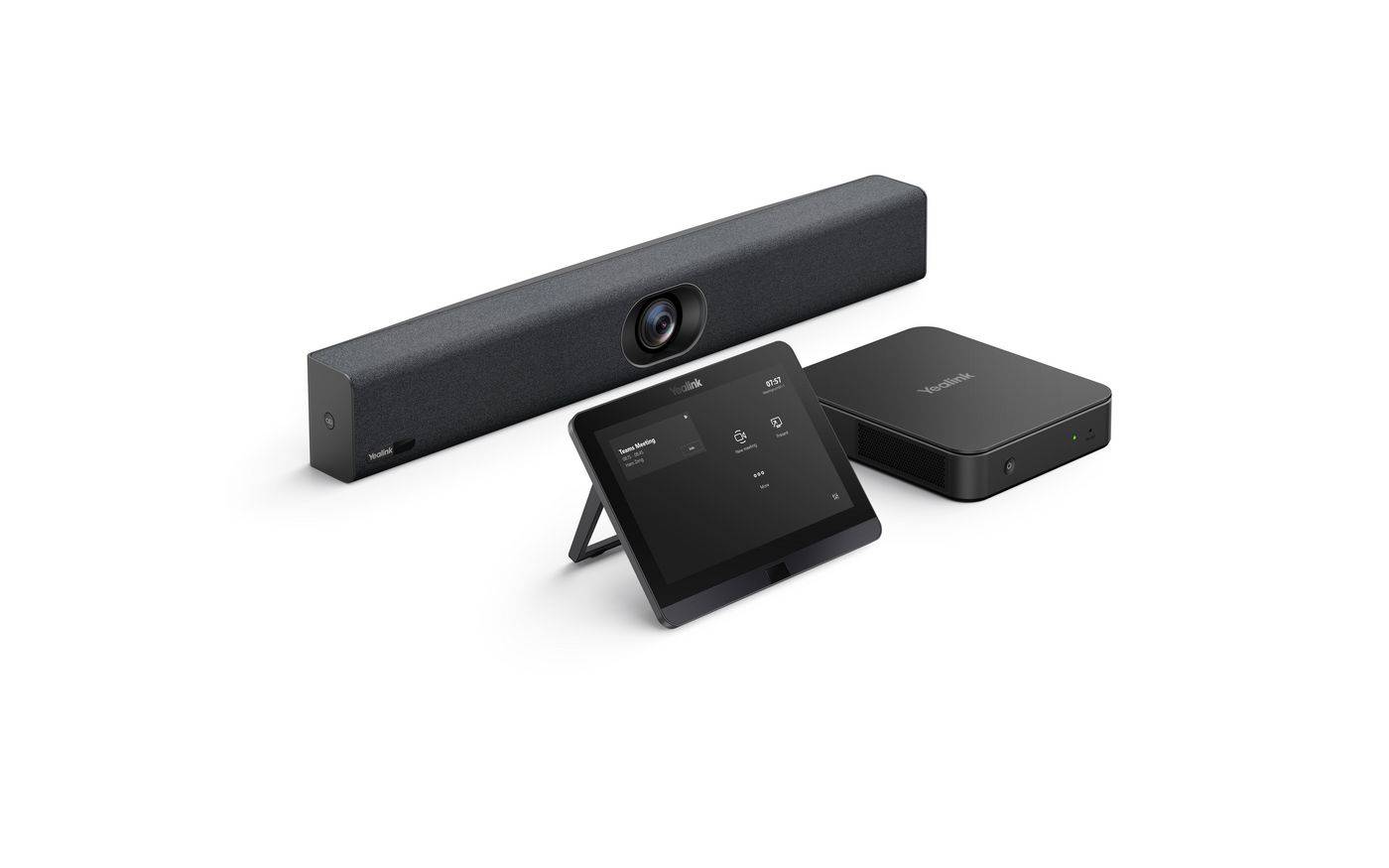

Yealink MVC Series MVC400 / For Microsoft Teams Rooms / video conference system (MCore Pro Mini-PC, MTouch E2 touch panel, UVC40 All-in-One video bar) | 1106992
Product Features
- Smart video conferencing with AI technology
Featuring AI technology, including auto framing and speaker tracking, UVC40 not only supports framing the groups automatically according to the number and the position of the participants, but also automatically zooms in the speaker without adjusting the camera, making the participants focus more on the conference call. - Precise sound localization, full-duplex experience
8 MEMS microphone arrays make UVC40 have stronger ability of noise proof and dereverberation. The upgraded beamforming algorithm, together with technology of processing on acoustic echo cancellation and the dereverberation, brings high-quality full-duplex call and realizes more precise voice pickup. - Secure conference with electric lens cap
The camera electric lens cap automatically opens when the video conference starts and remains closed when not having video conferences, securing your conference privacy. - Simple to deploy, easy to use
With the VCH port, MCore is specially designed for the video meeting rooms so that the deployment can be easily extended. At the same time, its all-in-one design with the feature of cable management ensures the stability of the wire connection, and the most appropriate deployment can be achieved according to the layout of the meeting room. One CAT5e is totally enough to connect the TV area and the conference table area and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifying the deployment but also effectively reducing deployment costs.
Special Features
- Easy deployment
- 20MP camera
- Auto framing
- Speaker tracking
- Electric lens cap
- 8x e-PTZ camera
- Device management
Product Specification
Device Type | Video conference system |
Kit Content | MCore Pro Mini-PC, MTouch E2 touch panel, UVC40 All-in-One video bar |
Weight | 6.4 kg |
Video Input | Video Input |
Type | Digital video camera (colour) - external |
Interface Type | USB |
Digital Zoom | 8 |
Features | ePTZ, auto-framing, 120° diagonal field of view, speaker tracking, 20 megapixels resolution, AI Face enhancement, 73° field of view (vertical), 111° field of view (horizontal), 7 m microphone pickup range |
Video Output | Video Output |
Type | Codec board - external |
PC Configuration | 11th Gen Core i5, 8GB RAM, 128GB SSD |
Audio Input | Audio Input |
Type | 8-microphone array - integrated |
Microphone Operation Mode | Beamforming |
Input Device | Input Device |
Type | 8" touchscreen |
Connectivity Technology | Wireless, wired |
Features | 10-point simultaneous touch, 1280 x 800 resolution |
Networking | Networking |
Type | Network adapter |
Connectivity Technology | Wireless, wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 802.11ax, Bluetooth 5.2 |
Features | Echo cancellation, Trusted Platform Module 2.0 (TPM 2.0), Yealink Noise Proof Technology |
Expansion / Connectivity | Expansion / Connectivity |
Interfaces | 3 x audio / video - HDMI output - 19 pin HDMI Type A ¦ 1 x network - Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 4 x SuperSpeed USB 3.0 - 9 pin USB Type A ¦ 1 x Yealink Mtouch port - RJ-45 |
Miscellaneous | Miscellaneous |
Cables Included | 1 x network cable - 7.5 m ¦ 1 x USB-C 3.1 cable - 1.2 m |
Mounting Kit | Included |
Compliant Standards | EDID compatible |
Software / System Requirements | Software / System Requirements |
Software Included | Microsoft Teams Rooms App, Windows 10 IoT Enterprise License, Windows 10 IoT Enterprise 64-bit, Yealink RoomConnect |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 68.5 cm |
Shipping Depth | 35.6 cm |
Shipping Height | 28.5 cm |
Shipping Weight | 7.6 kg |
