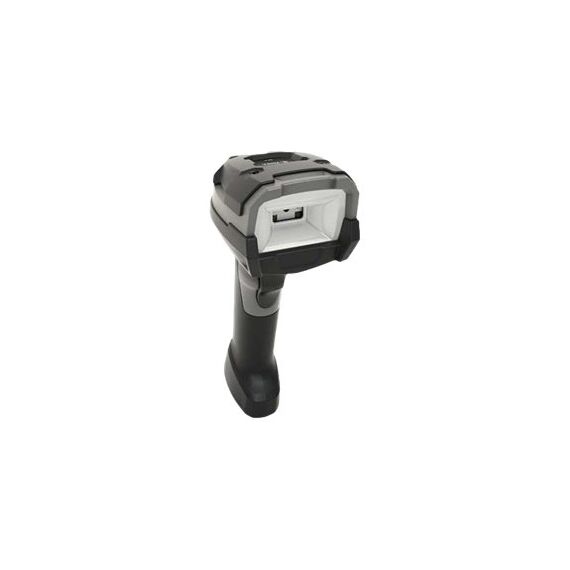

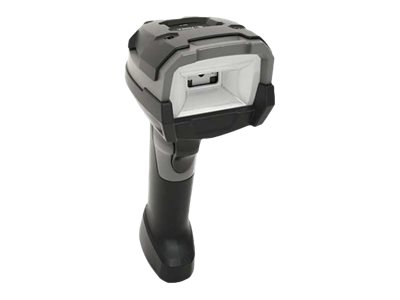

Zebra DS3678-DPA - USB Kit - barcode scanner - portable - decoded - Bluetooth 4.0 | DS3678-DPAU42A2S1W
Product Features
- Capture DPM, 1D/2D and wide 1D barcodes
The DS3678-DPA delivers the ultimate in scanning performance and versatility. Capture direct part marks regardless of size, surface, contrast, density or type - including challenging dot peen, chemical or laser etch, ink, inkjet mold, cast or thermal spray marks. And with the same scanner, workers can capture virtually any 1D or 2D barcode, including 4-inch wide 1D barcodes found on pick lists, carton labels and packages. - Ultra-rugged design
The warehouse and manufacturing floor are as tough as it gets. That's why Zebra Technologies created this ultra-rugged industrial scanner. This freezer-ready cordless model is built to survive an 8 ft./2.4 m drop to concrete and is dust-tight, spray-proof and waterproof to IP67, with an IP65-sealed cradle for a complete rugged cordless solution. - Unrivaled manageability
With the complimentary industry-best tools, managing this scanner couldn't be easier. You can remotely configure and upgrade your scanner, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless model and more.
Special Fetures
- Capture DPM, 1D/2D and wide 1D barcodes
- Ultra-rugged design
- Unrivaled manageability
Product Specification
Type | Barcode scanner - portable |
Colour | Grey, black |
Barcode | |
Interface Type | Bluetooth 4.0 |
Sensor Resolution | 1280 x 960 |
Skew (Degrees) | 60 |
Pitch (Degrees) | 60 |
Decode Capability | Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Code 3 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, Direct Part Mark (DPM), UPC/EAN supplementals |
TTL Decoding | Decoded |
Connectivity Technology | Wireless |
OK Notification | Beeper, LED indicator, vibration |
Networking | |
Wireless Connectivity | Bluetooth 4.0 LE |
Miscellaneous | |
Compliant Standards | UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B |
Power | |
Battery | 1 x Lithium Ion |
Dimensions & Weight | |
Width | 7.7 cm |
Depth | 14.3 cm |
Height | 18.5 cm |
Weight | 402 g |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Environmental Parameters | |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Drop Specification | 2.4 m to concrete |
