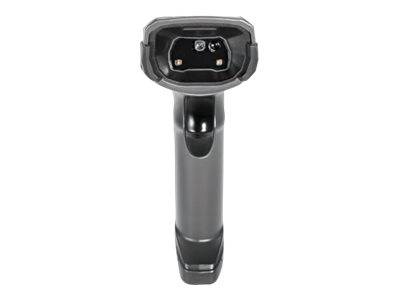

Zebra DS8108-SR / Standard Range (SR) / barcode scanner / handheld / 2D imager / decoded / interface cable required | DS8108-SR00006ZZWW
Please sign in so that we can notify you about a reply
Zebra DS8108-SR / Standard Range (SR) / barcode scanner / handheld / 2D imager / decoded / interface cable required | DS8108-SR00006ZZWW
|
Description Combining the power of advanced microprocessor, a high-resolution megapixel sensor and Zebra's exclusive PRZM Intelligent Imaging technology, the premium DS8108 delivers the very best in scanning performance to increase transactions and reduce customer wait time in the busy, scan-intensive environments. Innovative features let you go beyond just capturing barcodes. |
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Nova white |
| Image Colour Disclaimer | The displayed product image may be a different colour |
| Interface Type | Interface cable required |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 960 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 16% |
| Decode Capability | Code 39, QR code, Code 128, Data Matrix |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | PRZM Intelligent Imaging technology |
| Clock Speed | 800 MHz |
| Interfaces | 1 x USB ¦ 1 x RS-232 ¦ 1 x keyboard wedge |
| Included Accessories | Stand |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, RoHS, FIPS 140-2, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IP42, EN 50581, IEC 62471, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2 |
| Width | 6.6 cm |
| Depth | 10.7 cm |
| Height | 16.8 cm |
| Weight | 154 g |
| Service & Support | Limited warranty - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
Features - Zebra Technologies - DS8108-SR00006ZZWW
More Details
Product Code
V367829
EAN Code
0000113985668
Manufacturer
Zebra Technologies
