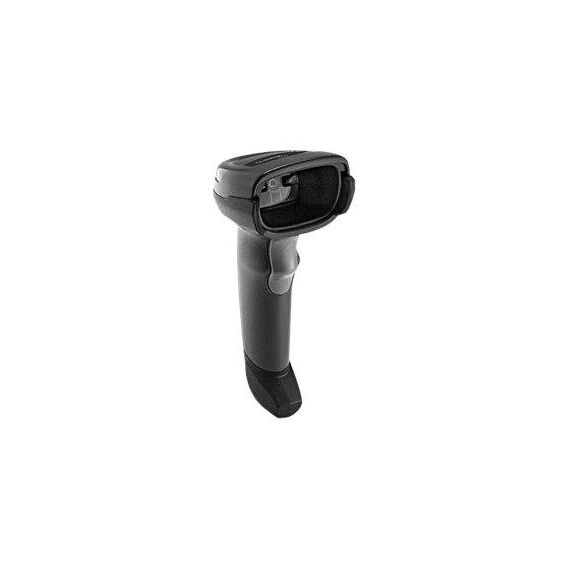

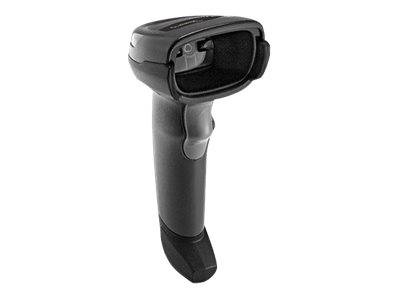

Zebra DS2278 / Standard Range (SR) / barcode scanner / handheld / 2D imager / 762 mm / sec / decoded / Bluetooth 4.0 | MC330L-GE2EG4RW
Please sign in so that we can notify you about a reply
Product Features
- Easy to deploy
Deployment couldn't be simpler. The DS2200 series is pre-configured and ready to use right out of the box. Just plug the DS2200 series into your POS and auto-host detect cables will automatically identify the interface and connect the imager for you. - Easy to use
The DS2200 series is so easy to use, chances are your workers won't even need training. - Easy to manage
Management is simple - no experienced IT personnel required. The long-lasting battery in the cordless DS2278 will likely never need to be replaced during the lifecycle of the scanner, eliminating the need to purchase and manage a battery pool.
Special Features
- Easy to deploy
- Easy to use
- Easy to manage
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Black |
| Barcode | Barcode |
| Interface Type | Bluetooth 4.0 |
| Minimum Bar Width | 4 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 640 x 480 |
| Light Source Wave Length | 645 nm |
| Scan Mode | Single-pass |
| Scan Speed | 762 mm / sec |
| Max Working Distance | 36.8 cm |
| Skew (Degrees) | 65 |
| Pitch (Degrees) | 65 |
| Print Contrast Signal (PCS) | 25% |
| Decode Capability | Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, Korean 2 of 5 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator |
| Networking | Networking |
| Wireless Connectivity | Bluetooth 4.0 LE |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x micro-USB cable - external |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, RoHS, UL 60950-1, IEC 60950-1, CAN/CSA C22.2 No. 60950, EN 50581, IEC 62471, FCC CFR47 Part 15 B Class B, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2 |
| Power | Power |
| Battery | Lithium Ion |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.6 cm |
| Depth | 9.9 cm |
| Height | 17.5 cm |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.5 m to concrete |
Features - Zebra - MC330L-GE2EG4RW
More Details
Product Code
V36D731
EAN Code
0999999999994
Manufacturer
Zebra
