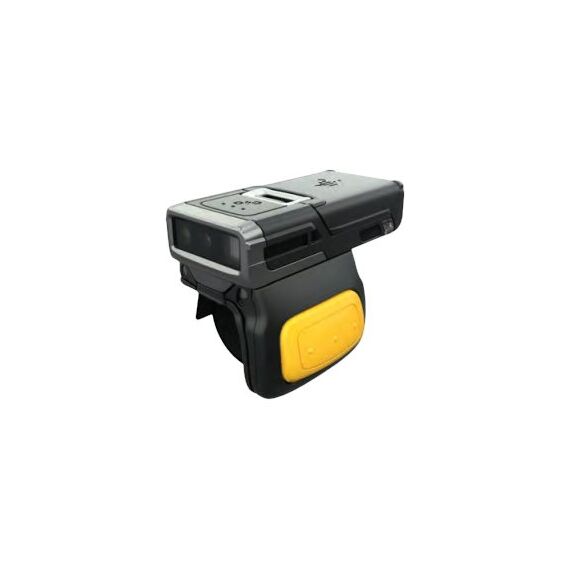

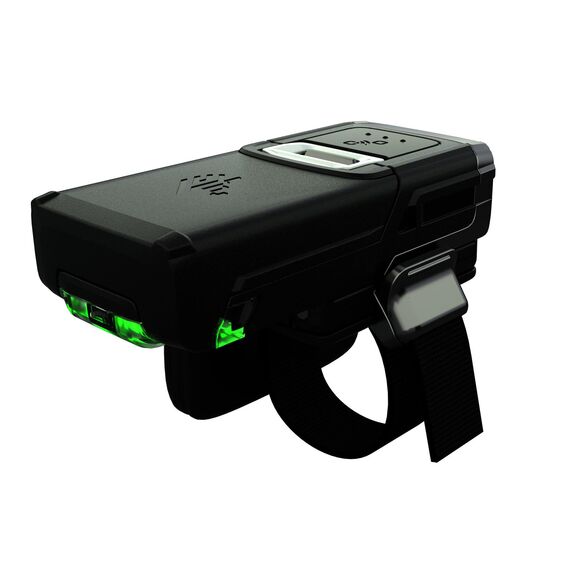

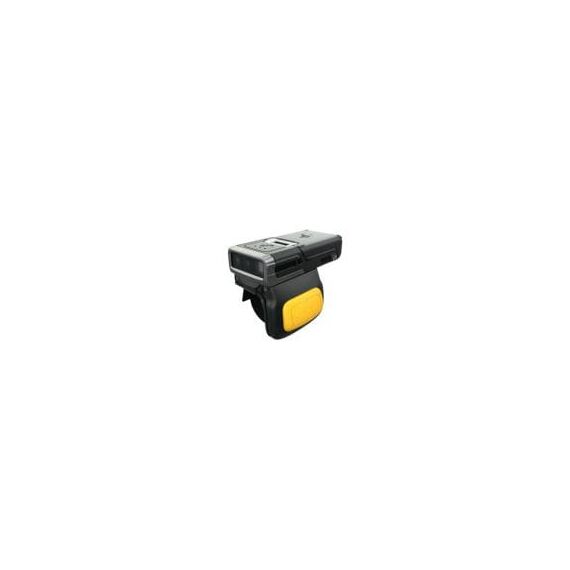

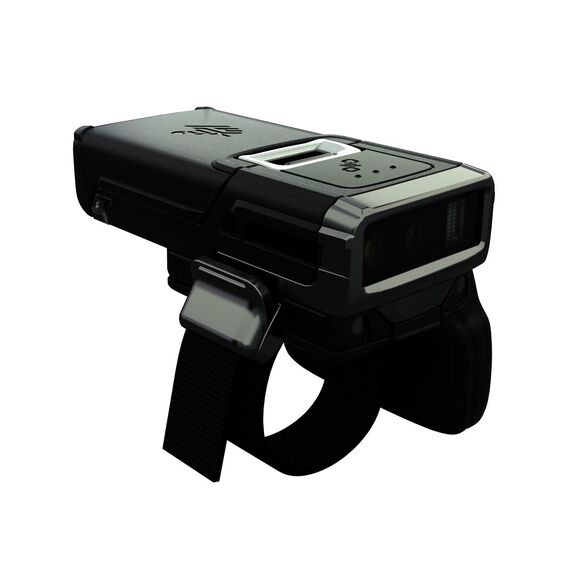

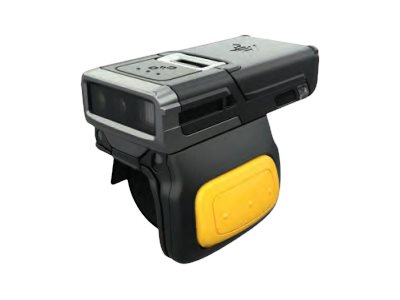

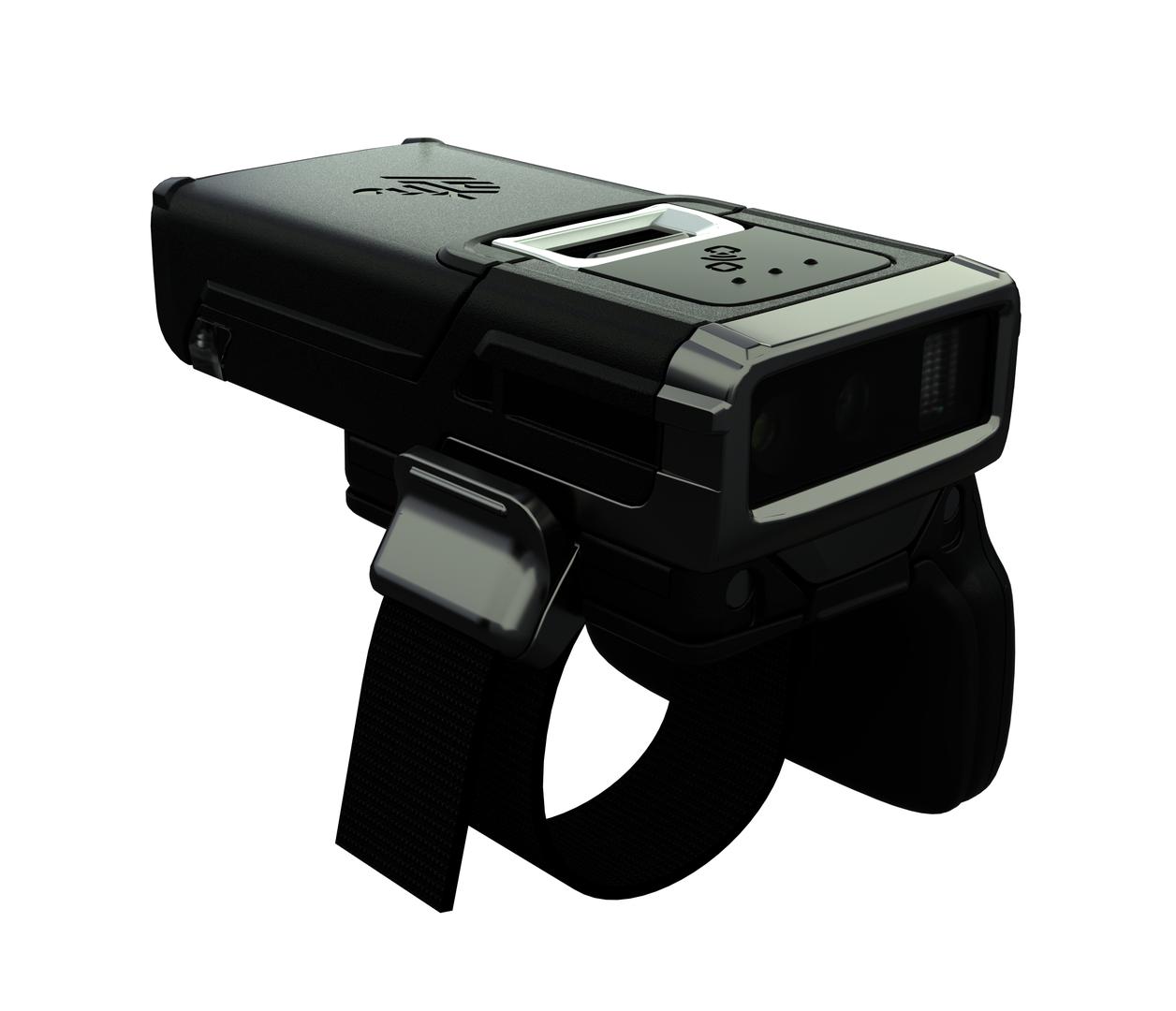

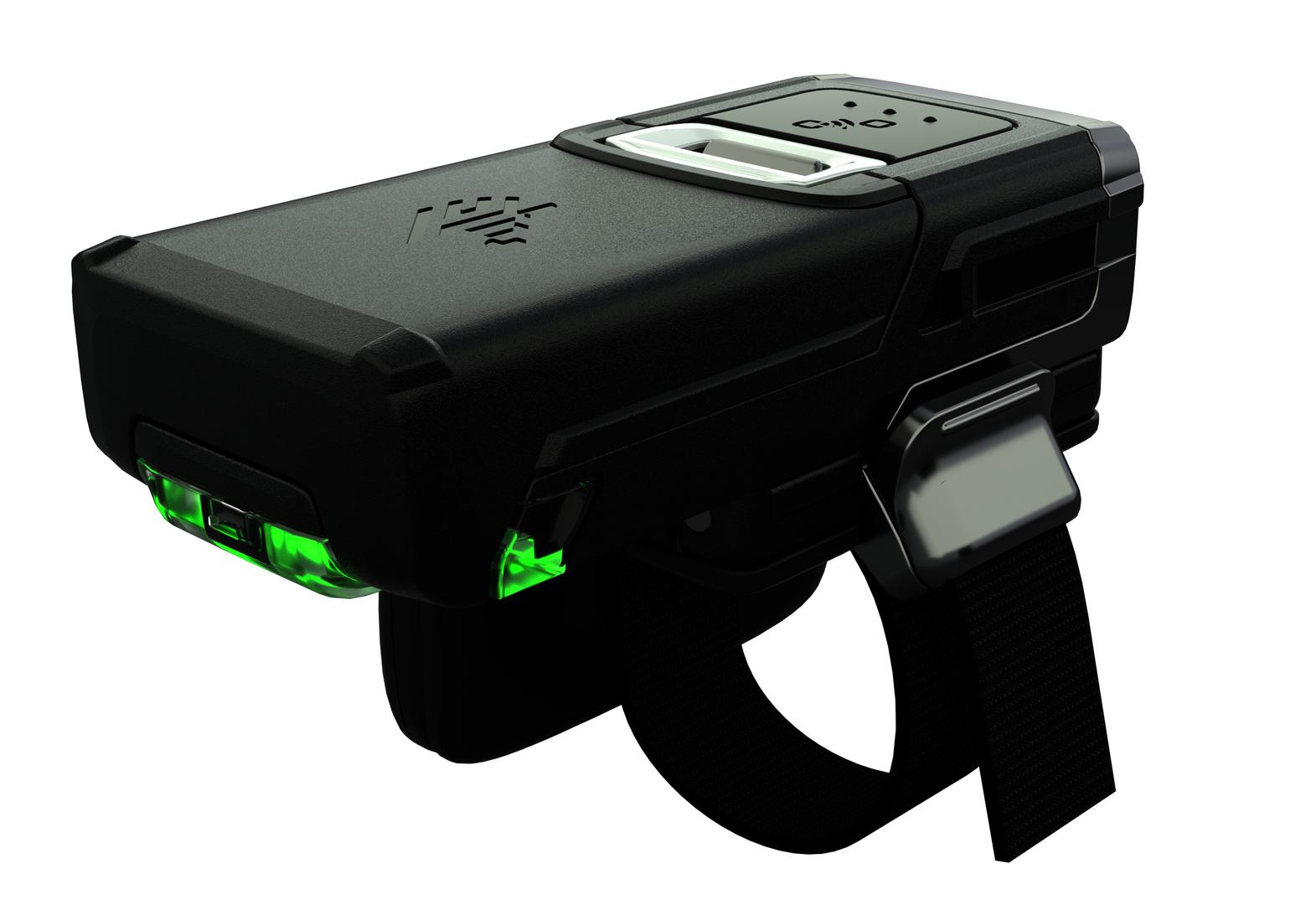

Zebra RS5100 - Double-trigger configuration - barcode scanner - portable - decoded - Bluetooth 4.0 | RS51B0-TBDNWR
Product Features
- Superior ergonomics for superior comfort
At just over two ounces and two cubic inches, it's practically weightless. Wear it on a finger, the back of a hand or on a lanyard. The single-sided trigger model accommodates gloves; the double trigger model lets workers switch hands on the fly. And the top-mounted trigger on both models allows rotation of the RS5100 to the side of a finger for near-zero protrusion. - Industry-leading rugged design
You get a best-in-class rugged design with a drop, tumble and IP sealing specification - so you can count on reliable operation despite drops, bumps, dust and even a high-pressure hose down. The long-life trigger handles millions of actuations. And the RS5100 is built to handle the high levels of electrostatic discharge common with use on concrete flooring. - Best-in-class scanning
Two scan engine options allow you to choose the imager that best matches your scanning and aimer requirements - LED or laser. Both imager engines deliver first time capture of even damaged, dirty and poorly printed 1D/2D barcodes through PRZM Intelligent Imaging, a megapixel sensor and superior algorithms - plus a wide field of view for easy capture of large barcodes.
Special Fetures
- Superior ergonomics for superior comfort
- Industry-leading rugged design
- Best-in-class scanning
Product Specification
Type | Barcode scanner - portable |
Colour | Black, silver |
Image Colour Disclaimer | The displayed product image may be a different colour |
Barcode | |
Interface Type | Bluetooth 4.0 |
Minimum Bar Width | 3 mil |
Scan Element Type | Laser |
Sensor Resolution | 1280 x 960 |
Light Source Wave Length | 655 nm |
Scan Mode | Single-pass |
Max Working Distance | 76.2 cm |
Skew (Degrees) | 60 |
Pitch (Degrees) | 60 |
Decode Capability | EAN/JAN, Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, Code 32, MicroPDF417, Code 3 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, UPC, PDF417, Data Matrix, TLC39, Micro QR code, China Han Xin Code, MSI |
TTL Decoding | Decoded |
Connectivity Technology | Wireless |
OK Notification | Beeper, LED indicator, vibration |
Features | Triggered, SE4770 imaging engine |
Networking | |
Wireless Connectivity | Bluetooth 4.0 LE |
Miscellaneous | |
Compliant Standards | IP65, IEC 60529 |
Power | |
Battery | 1 x Lithium Ion |
Dimensions & Weight | |
Width | 2.8 cm |
Depth | 2.1 cm |
Height | 6.1 cm |
Weight | 70 g |
Manufacturer Warranty | |
Service & Support | Limited warranty - 1 year |
Environmental Parameters | |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 5 - 95% (non-condensing) |
Drop Specification | 1.8 m to concrete |
