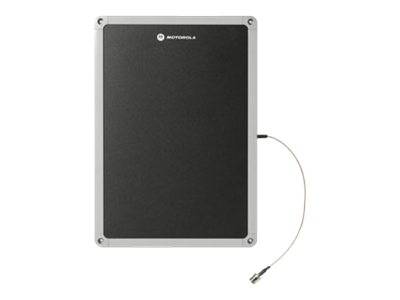

Motorola AN620 RFID Antenna / Antenna / 4 dBi / wall-mountable, indoor / for Motorola FX7400, FX7500, FX9500 | AN620-SCL71130EU
Product Specification
| Product Type | Antenna |
| Width | 27.5 cm |
| Depth | 1.2 cm |
| Height | 39.1 cm |
| Weight | 1 kg |
| Cable Length | 30.5 cm |
| Localisation | Europe |
| Aerial Placing / Mounting | Wall-mountable, indoor |
| Frequency Range | 902 - 928 MHz, 864 - 868 MHz |
| Gain | 4 dBi |
| Voltage Standing Wave Ratio (VSWR) | 1.4:1 |
| Horizontal Beamwidth | 75° |
| Vertical Beamwidth | 48° |
| Connector Provided | 1 x N connector female |
| Mounting Kit | Included |
| Compliant Standards | IEC 60068-2-30, IEC 60068-2-6, IP65 |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 65 °C |
| Designed For | Motorola FX7400, FX7500, FX9500 |
Features - Zebra Technologies - AN620-SCL71130EU
More Details
Product Code
V354927
EAN Code
5656565656562
Manufacturer
Zebra Technologies
