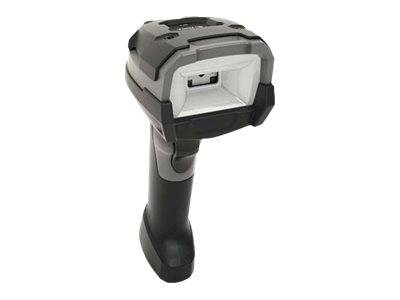

Zebra DS3678-DPA / Barcode scanner / portable / decoded / Bluetooth 4.0 | DS3678-DP2RF50AS1W

DS3678-DP2RF50AS1W
1,943.82
(2,313.15 inc. VAT)
Out of stock
Delivery
Payment options
Product CodeV36B505 ManufacturerZebra Technologies

Zebra DS3678-DPA / Barcode scanner / portable / decoded / Bluetooth 4.0 | DS3678-DP2RF50AS1W

Description

The DS3678-DPA cordless scanner is designed to help industrial manufacturers meet their track and trace requirements with dependable lightning-fast capture of virtually any direct part mark, as well as 1D/2D and wide 1D barcodes common in factory automation use cases. The ultra-rugged design is practically indestructible - ideal for punishing environments. The scanner offers unparalleled ease of management, and with Zebra's Network Connect for Automation, the DS3678-DPA connects to Industrial Ethernet networks without third-party conversion equipment.

Zebra DS3678-DPA / Barcode scanner | DS3678-DP2RF50AS1W

Special Features

  • Capture DPM, 1D/2D and wide 1D barcodes
  • Ultra-rugged design
  • Unrivaled manageability

Product features

  • Capture DPM, 1D/2D and wide 1D barcodes
    The DS3678-DPA delivers the ultimate in scanning performance and versatility. Capture direct part marks regardless of size, surface, contrast, density or type - including challenging dot peen, chemical or laser etch, ink, inkjet mold, cast or thermal spray marks. And with the same scanner, workers can capture virtually any 1D or 2D barcode, including 4-inch wide 1D barcodes found on pick lists, carton labels and packages.
  • Ultra-rugged design
    The warehouse and manufacturing floor are as tough as it gets. That's why Zebra Technologies created this ultra-rugged industrial scanner. This freezer-ready cordless model is built to survive an 8 ft./2.4 m drop to concrete and is dust-tight, spray-proof and waterproof to IP67, with an IP65-sealed cradle for a complete rugged cordless solution.
  • Unrivaled manageability
    With the complimentary industry-best tools, managing this scanner couldn't be easier. You can remotely configure and upgrade your scanner, format data properly for instant transmission into your business applications, monitor battery statistics for your cordless model and more.


Product Specification

Type Barcode scanner - portable
Colour Grey, black
Interface Type Bluetooth 4.0
Sensor Resolution 1280 x 960
Skew (Degrees) 60
Pitch (Degrees) 60
Decode Capability Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Code 3 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, Direct Part Mark (DPM), UPC/EAN supplementals
TTL Decoding Decoded
Connectivity Technology Wireless
OK Notification Beeper, LED indicator, vibration
Wireless Connectivity Bluetooth 4.0 LE
Compliant Standards UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B
Battery 1 x Lithium Ion
Width 7.7 cm
Depth 14.3 cm
Height 18.5 cm
Weight 402 g
Service & Support Limited warranty - 3 years
Min Operating Temperature -20 °C
Max Operating Temperature 50 °C
Humidity Range Operating 5 - 95% (non-condensing)
Drop Specification 2.4 m to concrete

Features - Zebra Technologies - DS3678-DP2RF50AS1W

More Details
Product Code
V36B505
EAN Code
-
Manufacturer
Zebra Technologies
