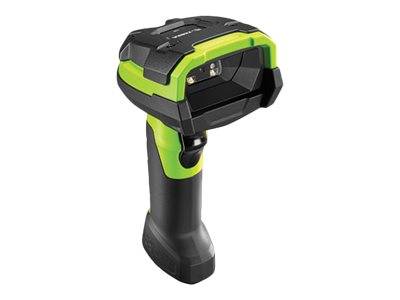

Zebra DS3678-SR / USB Kit / barcode scanner / portable / decoded / Bluetooth 4.0 | DS3678-SR3U4210SFW
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - portable |
| Colour | Industrial green |
| Barcode | Barcode |
| Interface Type | Bluetooth 4.0 |
| Minimum Bar Width | 5 mil |
| Sensor Resolution | 1280 x 960 |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | Code 93, Industrial 2 of 5, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Code 3 of 5, Italy Pharmacode, Codabar, Code 128, Code 11, PDF417, MSI-Plessey, Data Matrix, TLC39, Micro QR code, China Han Xin Code, UPC/EAN supplementals |
| TTL Decoding | Decoded |
| Connectivity Technology | Wireless |
| OK Notification | Beeper, LED indicator, vibration |
| Features | Rugged, standard range scanning |
| Networking | Networking |
| Wireless Connectivity | Bluetooth 4.0 LE |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB |
| Miscellaneous | Miscellaneous |
| Included Accessories | Cradle |
| Cables Included | 1 x USB cable - external |
| Compliant Standards | UL, VDE, EN 61000-6-2, RoHS, UL 60950-1 Second Edition, IP67, CAN/CSA C22.2 No. 60950-1-07, EN 61000-3-2:2006+A1:2009+A2:2009, IEC 60601-1-2:2007, EN 50581:2012, ICES-003 issue 5 Class B, IEC 62471:2006, EN 62471:2008, EN 60601-1-2:2007, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+AC:2011, EN 61000-3-3:2013, EN 55024:2010, EN 55022:2010/AC:2011, IEC 60950-1:2005 + A1:2009 + A2:2013, CU, FCC CFR47 Part 15 B Class B |
| Power | Power |
| Power Device | Power adapter |
| Battery | 1 x Lithium Ion |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.6 cm |
| Depth | 14.2 cm |
| Height | 18.5 cm |
| Weight | 411 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 2.4 m to concrete |
Features - Zebra Technologies - DS3678-SR3U4210SFW
More Details
Product Code
V358251
EAN Code
5656565656562
Manufacturer
Zebra Technologies
