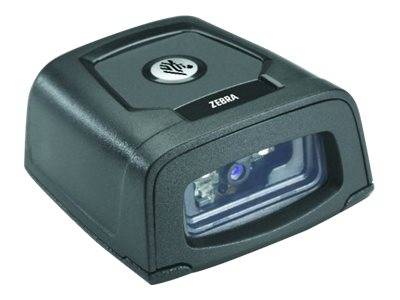

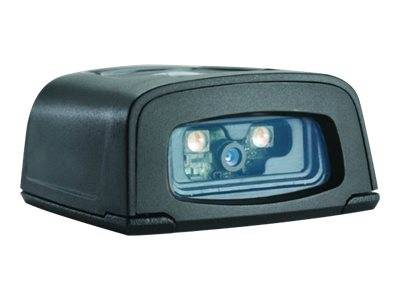

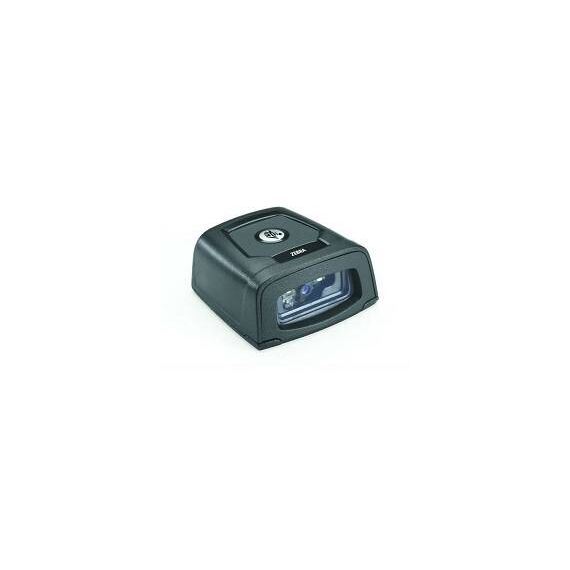

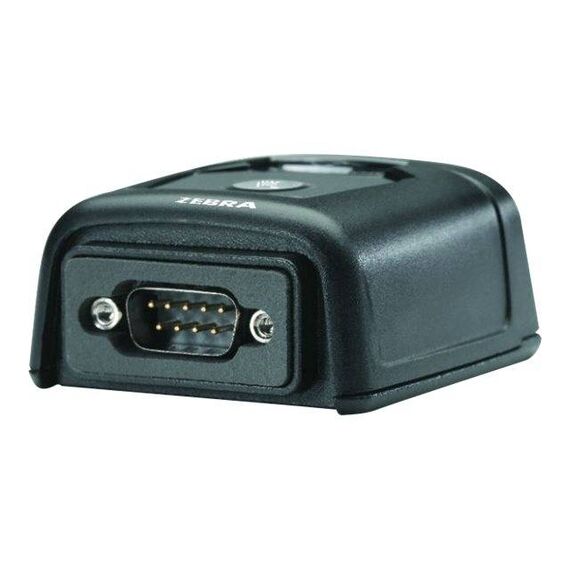

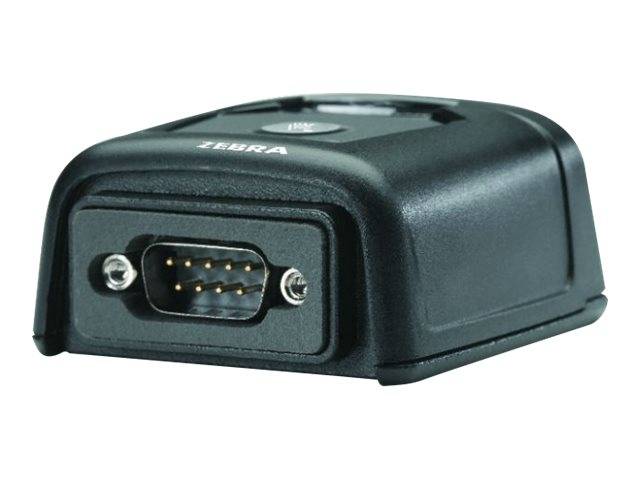

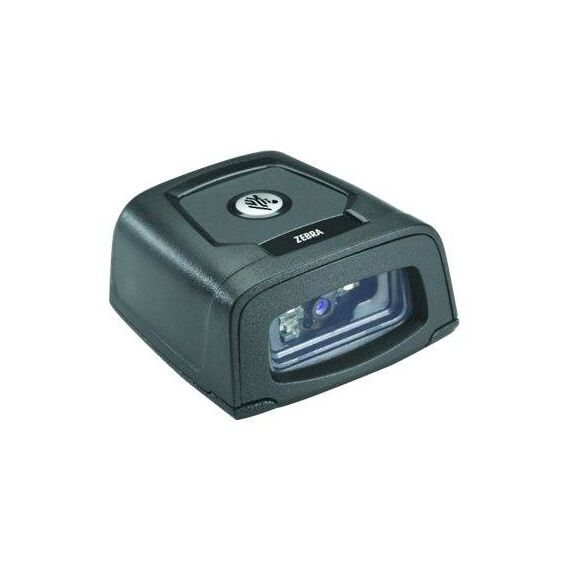

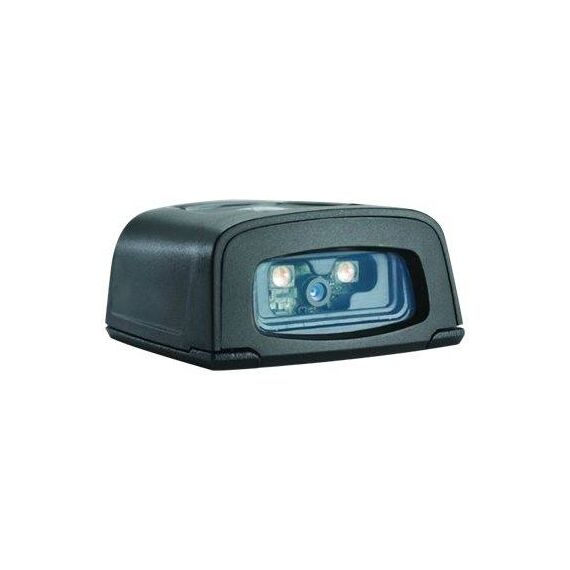

Zebra DS457-SR / Barcode scanner / desktop / 2D imager / decoded / RS-232 | DS457-HDER20004

DS457-HDER20004
358.30
(426.38 inc. VAT)
Out of stock
Delivery
Payment options
Product CodeV369989 EAN Code5656565656562 ManufacturerZebra Technologies

Product Features

  • Get hands-free convenience and extraordinary scanning speed on any bar code
    Enable high-volume hands-free scanning from the retail POS and airport boarding gate to the manufacturing production line with the Zebra DS457. With comprehensive data capture, your workers can scan virtually any bar code - including 1-D, 2-D and direct part marks. No matter what type of bar code is presented, or whether it is printed on a paper label, etched into a product or displayed on a mobile phone screen, breakthrough digital imaging technology delivers extraordinary scanning speed. The tiny footprint fits in the most space constrained areas.
  • Scan bar codes on practically any surface - including mobile phone displays
    Your customers are rapidly adopting mobile bar codes - electronic versions of tickets, boarding passes and loyalty cards that can be carried right in the mobile phone. Since the DS457 can read bar codes on mobile phone and computer displays, you're ready for this next generation bar code, protecting customer convenience, customer service quality and employee productivity.
  • Flexible and easy to integrate
    The DS457 can be used as a standalone scanner or integrated into the most space-constrained products to bring world-class scanning performance to mobile computers, handheld scanners, self-service kiosks, medical and diagnostic instruments, lottery terminals and more. Integration into your product designs is easy - there is no optical, mechanical or electrical engineering required.
  • Users are up and running in minutes
    Full omni-directional scanning eliminates the need to precisely align bar code and imager. A unique aiming pattern with a bright central dot ensures quick, accurate scanning - even in the brightest lighting. The result is a highly intuitive scanning function that increases worker productivity, virtually eliminating the need and cost associated with training.

Special Features

  • Get hands-free convenience and extraordinary scanning speed on any bar code
  • Scan bar codes on practically any surface - including mobile phone displays
  • Flexible and easy to integrate
  • Users are up and running in minutes

Product Specification

Type Barcode scanner - desktop - stationary
Colour Black
Localisation EMEA
Barcode Barcode
Interface Type RS-232
Minimum Bar Width 5 mil
Scan Element Type 2D imager
Sensor Resolution 752 x 480
Light Source Wave Length 655 nm
Scan Mode Fixed projection
Max Working Distance 41.9 cm
Skew (Degrees) 25.7
Pitch (Degrees) 39.6
Print Contrast Signal (PCS) 25%
Decode Capability Code 39, QR code, MaxiCode, Aztec code, UPC, Postnet, PDF417, Data Matrix, PLANET, Australian Post, Japanese Post, UK Post
TTL Decoding Decoded
Connectivity Technology Wired
OK Notification Beeper, LED indicator
Processor Processor
Clock Speed 624 MHz
Expansion / Connectivity Expansion / Connectivity
Interfaces 1 x RS-232
Miscellaneous Miscellaneous
Compliant Standards VCCI, C-Tick, CISPR 22 Class B, EN 60950, VDE, ICES-003 Class B, FCC Part 15 B, C-ETL, RoHS, ETL, IEC 60825-1, IP54
Power Power
Power Device Power adapter
Dimensions & Weight Dimensions & Weight
Width 6.2 cm
Depth 5.84 cm
Height 2.92 cm
Weight 111 g
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - parts and labour - 3 years
Environmental Parameters Environmental Parameters
Min Operating Temperature -20 °C
Max Operating Temperature 50 °C
Humidity Range Operating 0 - 95% (non-condensing)
