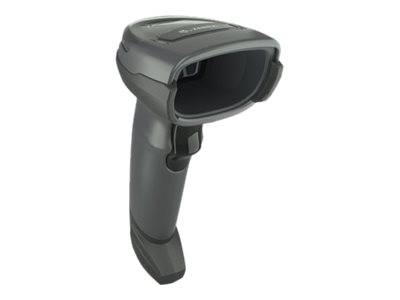

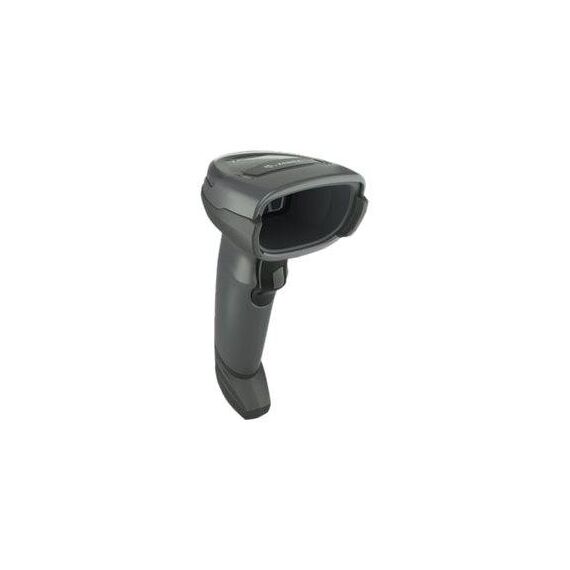

Zebra DS4608-SR / USB Kit / barcode scanner / handheld / 2D imager / decoded / USB | DS4608-SR7U3200SGW
DS4608-SR7U3200SGW
Find similar
Delivery
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Ships fast to Cyprus
Local warranty support
Please sign in so that we can notify you about a reply
Zebra DS4608-SR / USB Kit / barcode scanner / handheld / 2D imager / decoded / USB | DS4608-SR7U3200SGW
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Twilight black |
| Interface Type | USB |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, DotCode, Composite, Han Xin, Korean 3 of 5, Base 32 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | 15 kV ESD protection (air discharge), 8 kV ESD protection (direct discharge), 8 kV ESD protection (indirect discharge) |
| Interfaces | 1 x USB - Type A |
| Included Accessories | Stand |
| Cables Included | 1 x USB cable - 2 m |
| Compliant Standards | EN55024, EN 61000-4-2, UL 60950-1 Second Edition, IP52, CAN/CSA C22.2 No. 60950-1-07, EN 50581:2012, IEC 60950-1:2005, IEC 62471:2006, EN 62471:2008, FCC CFR47 Part 15 B Class B, EN 55032 Class B, IEC 62368-1, ICES-003 issue 6 Class B, EN 60950-1:2006+A2:2013, EN 60601-1-2:2015, EN 62368-1:2014, EN 55035, 2011/65/EU, IEC 60601-1-2:2014 |
| Electric Current Required | 340 mA (typical), 150 mA (standby) |
| Width | 6.7 cm |
| Depth | 9.8 cm |
| Height | 16.5 cm |
| Weight | 161.9 g |
| Service & Support | Limited warranty - parts and labour - 5 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
Features - Zebra Technologies - DS4608-SR7U3200SGW
More Details
Product Code
V36D029
EAN Code
5656565656562
Manufacturer
Zebra Technologies
