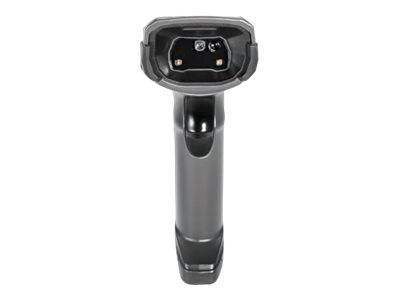

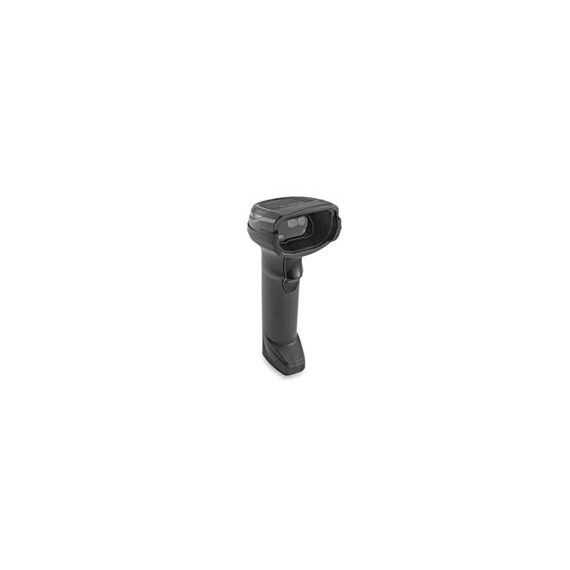

Zebra DS8108-SR / Standard Range (SR) / barcode scanner / handheld / 2D imager / decoded / interface cable required | DS8108-SR00007ZZWW
Zebra DS8108-SR / Standard Range (SR) / barcode scanner / handheld / 2D imager / decoded / interface cable required | DS8108-SR00007ZZWW
€329.05 inc. VAT
DS8108-SR00007ZZWW
Product CodeV367831
ManufacturerZebra Technologies
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Twilight black |
| Barcode | Barcode |
| Interface Type | Interface cable required |
| Minimum Bar Width | 3 mil |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 960 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 16% |
| Decode Capability | Code 39, QR code, Code 128, Data Matrix |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | PRZM Intelligent Imaging technology |
| Processor | Processor |
| Clock Speed | 800 MHz |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB ¦ 1 x RS-232 ¦ 1 x keyboard wedge |
| Miscellaneous | Miscellaneous |
| Compliant Standards | EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, RoHS, FIPS 140-2, UL 60950-1, CAN/CSA C22.2 No. 60950-1-07, IP42, EN 50581, IEC 62471, EN 55032 Class B, ICES-003 issue 6 Class B, EN60950-1 (2nd Edition) + A11 + A1 + A12 + A2:2013, EN60950-1 (2nd Edition) + A1 + A2 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.6 cm |
| Depth | 10.7 cm |
| Height | 16.8 cm |
| Weight | 154 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
Features - Zebra Technologies - DS8108-SR00007ZZWW
More Details
Product Code
V367831
EAN Code
-
Manufacturer
Zebra Technologies
