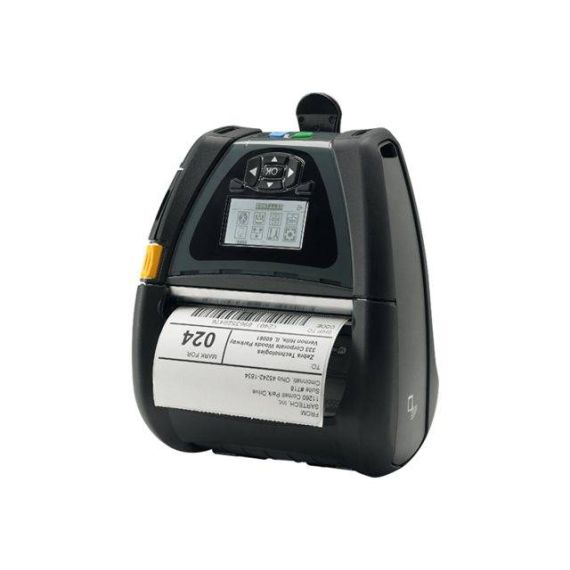

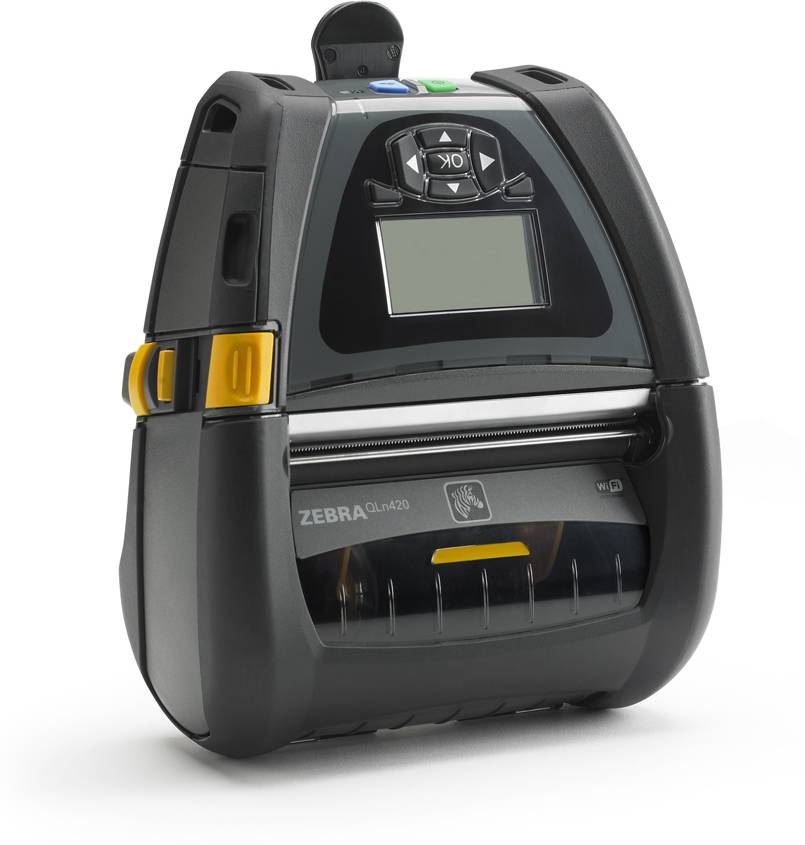

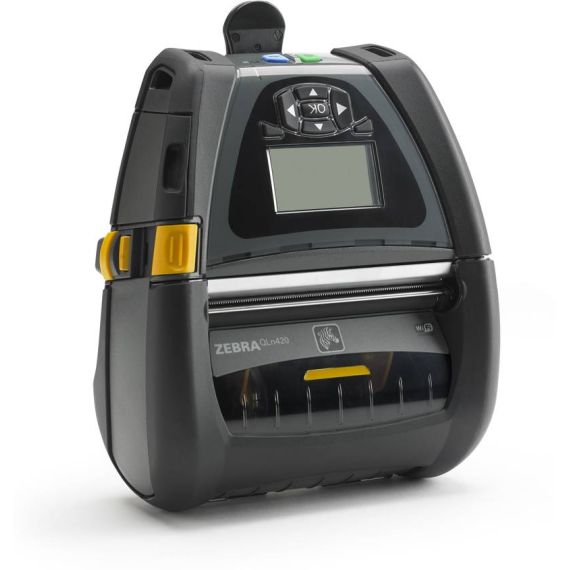

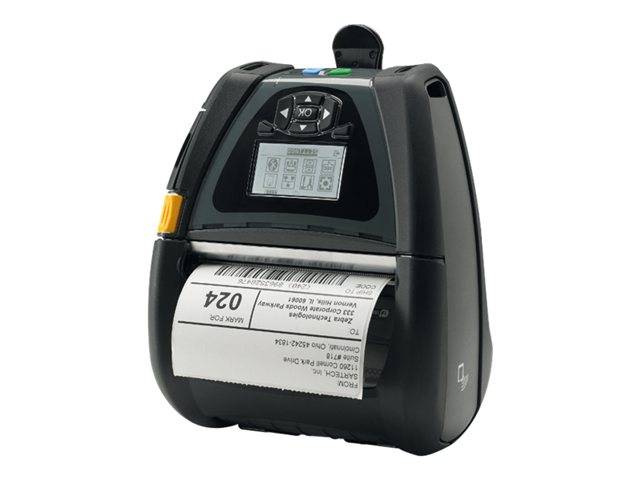

Zebra QLn 420 / Label printer / thermal paper / Roll (11.2 cm) / 203 dpi / up to 102 mm/sec / USB, serial, NFC / tear bar | QN4-AU1AEM11-00
Zebra QLn 420 / Label printer / thermal paper / Roll (11.2 cm) / 203 dpi / up to 102 mm/sec / USB, serial, NFC / tear bar | QN4-AU1AEM11-00
Description
Zebra's popular QL family of direct thermal mobile label printers has built a highly satisfied following based upon its proven drop-resistant durability; user-friendly, productivity-boosting features; and easy integration. As Zebra's third generation of QL printers, the QLn printers extend these QL-platform benefits to the "nth" power.The QLn420's over-molding and tempered-glass display - coupled with its seamless, one-piece design - make it more durable than ever before. The QLn printer can boost your operation's productivity through a larger, sharper, easier-to- navigate display; faster, higher-quality printing; a variety of proactive alerts that help keep working printers in employees' hands; and many convenient charging accessories. And, your IT department will find the QLn printer more intuitive to integrate into existing platforms thanks to Zebra's Link-OS environment.With Zebra's Link-OS environment - an innovative operating system combining a powerful Multiplatform Software Development Kit (SDK) and software applications - the QLn family of printers is easy to integrate, manage and maintain from any location around the globe. Enabled with Print Touch, these Link-OS printers offer web page launching features using Near Field Communication (NFC), making it easy to access Zebra's extensive knowledge base of how-to videos and product support.
Zebra QLn 420 / Label printer | QN4-AU1AEM11-00
Special Features
- Easier to use
- Longer printer uptime
- Easier to integrate
- Easier to manage
Product features
- Easier to Integrate
Move your business forward without the cost or stress of upgrades. Backwards compatibility with QL and QL Plus models lets you upgrade to the QLn printer without changing media or label formats. The inclusion of the legacy CPCL programming language also allows mixed networks of QL/QL Plus and QLn products. - Easier to Manage
Manage all aspects of your networked Link-OS printers from just one screen with Profile Manager. There's no need to switch between applications to get the job done, and you can manage the simple admin console remotely on your PC, tablet or smartphone. - Easier to Maintain
Reduce wasted time and lost productivity with the smart battery, which indicates the power and health of a printer's battery. - Easier to Use
The QLn420 was designed to optimize business processes through easy operation and mobility - reducing training requirements and increasing worker productivity. - Longer Printer Uptime
Improve operational productivity and reduce costs associated with downtime through fewer printing interruptions.
Product Specification
| Printer Type | Label printer - direct thermal - monochrome |
| Print Speed | Up to 102 mm/sec - max speed - 203 dpi |
| Built-in Devices | Status LCD, tear bar |
| Connectivity Technology | Wired |
| Interface | USB, serial, NFC |
| Max Resolution (B&W) | 203 dpi |
| Language Simulation | ZPL, EPL, Comtec Printer Control Language (CPCL) |
| Fonts | CG Triumvirate Bold Condensed |
| Styles & Effects | Rotated text |
| Features | Fixed gap/bar media sensor, realtime clock, label sensor, Black Mark sensor, tear bar |
| Display Resolution | 240 x 128 |
| Keyboard | 7 keys |
| Fonts Included | 25 x bitmapped ¦ 1 x scalable |
| Barcodes | Code 93, Code 39, UCC/EAN-128, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, EAN/JAN-8, EAN/JAN-13, UPC-A, UPC-E, MicroPDF417, Codabar, Code 128, Interleaved 2 of 5, Postnet, PDF417, MSI-Plessey, Data Matrix, FIM, TLC39 |
| Processor | 400 MHz |
| RAM Installed (Max) | 128 MB |
| Flash Memory | 256 MB |
| Media Type | Labels, linerless labels, receipt labels, die cut labels |
| Max Media Size | Roll (11.2 cm) |
| Min Media Size (Custom) | 51 mm |
| Max Media Size (Custom) | 112 mm |
| Media Sizes | Roll (5.1 - 11.2 cm) |
| Max Printing Width | 104 mm |
| Max Printing Length | 813 mm |
| Media Thickness Range | 0.0813 mm - 0.1905 mm |
| Roll Maximum Outer Diameter | 66 mm |
| Roll Core Diameter | 19 mm, 34.9 mm |
| Media Feeders | 1 x manual - 1 roll - Roll (11.2 cm) |
| Connections | 1 x RS-232 - 14 pin DIN ¦ 1 x USB - mini-USB Type B ¦ 1 x docking |
| Included Accessories | Belt clip, shoulder strap |
| Features | Water-resistant, dust-resistant, drop-resistant, built-in battery charger |
| Compatible with Windows 7 | "Compatible with Windows 7" software and devices carry Microsoft'€™s assurance that these products have passed tests for compatibility and reliability with 32-bit and 64-bit Windows 7. |
| Compliant Standards | CSA, UL, TUV, EN 60950, EN55024, EN55022 Class B, FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-5, EN55024 Class B, IEC 60529 IP43, VCCI Class B |
| Type | Lithium Ion |
| Required Qty | 1 |
| Included | 1 |
| Capacity | 5000 mAh |
| Software Included | Drivers & Utilities, Link-OS |
| Service & Support | Limited warranty - 1 year ¦ Limited warranty - printhead - 6 months |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Width | 16.5 cm |
| Depth | 8.25 cm |
| Height | 18.7 cm |
| Weight | 1.1 kg |
