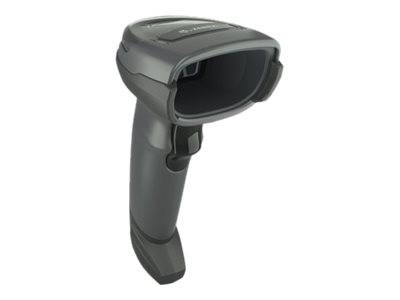

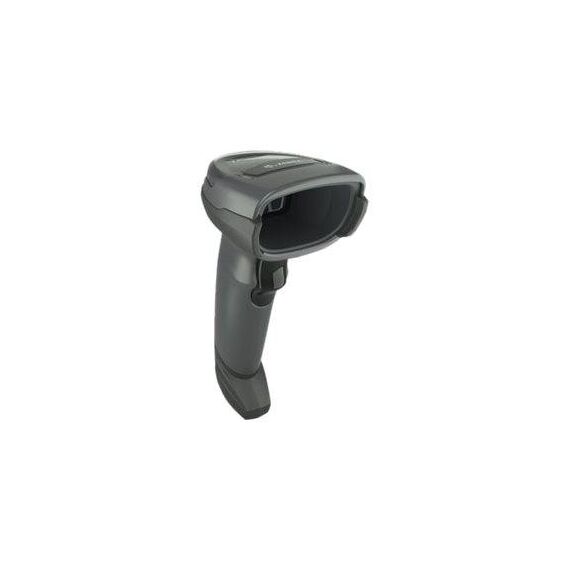

Zebra DS4608-HD / Barcode scanner / handheld / 2D imager / decoded / USB | DS4608-HD00007ZCWW
Please sign in so that we can notify you about a reply
Product Features
- One scanner for your whole store
No matter what kind of data you need to capture, the DS4600 series is ready for the job. Scan barcodes on a mobile phone. Collect data from IDs. Parse driver's license information. And much more. - Fast scanning performance
Empower every associate to scan like your best associate. A fast microprocessor, high-resolution sensor and Zebra's exclusive imaging technology provide instant barcode capture on challenging barcodes.
Special Features
- One scanner for your whole store
- Fast scanning performance
Product Specification
| Type | Barcode scanner - handheld |
| Colour | Twilight black |
| Barcode | Barcode |
| Interface Type | USB |
| Scan Element Type | 2D imager |
| Sensor Resolution | 1280 x 800 |
| Light Source Wave Length | 617 nm |
| Scan Mode | Single-pass |
| Skew (Degrees) | 60 |
| Pitch (Degrees) | 60 |
| Print Contrast Signal (PCS) | 15% |
| Decode Capability | Code 93, Code 39, NW-7, GS1 DataBar, QR code, MaxiCode, Aztec code, MicroPDF417, Codabar, Code 128, Code 11, UPC, Interleaved 2 of 5, PDF417, MSI-Plessey, Data Matrix, TLC39, OCR-A, OCR-B, Micro QR code, DotCode, Composite, Han Xin, Korean 3 of 5, Base 32 |
| TTL Decoding | Decoded |
| Connectivity Technology | Wired |
| OK Notification | Beeper, LED indicator |
| Features | Checkpoint Electronic Article Surveillance (EAS) |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x USB - Type A |
| Miscellaneous | Miscellaneous |
| Compliant Standards | EN55024, EN 61000-4-2, IP52, CAN/CSA C22.2 No. 60950-1-07, EN 60950-1 Second Edition, EN 50581:2012, IEC 60950-1:2005, IEC 62471:2006, EN 62471:2008, FCC CFR47 Part 15 B Class B, EN 55032 Class B, IEC 62368-1, ICES-003 issue 6 Class B, EN 60950-1:2006+A2:2013, EN 60601-1-2:2015, EN 62368-1:2014, EN 55035, 2011/65/EU, IEC 60601-1-2:2014 |
| Power | Power |
| Electric Current Required | 340 mA (typical), 150 mA (standby) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 6.7 cm |
| Depth | 9.8 cm |
| Height | 16.5 cm |
| Weight | 161.9 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Drop Specification | 1.8 m to concrete |
Features - Zebra Technologies - DS4608-HD00007ZCWW
More Details
Product Code
V36C332
EAN Code
-
Manufacturer
Zebra Technologies
