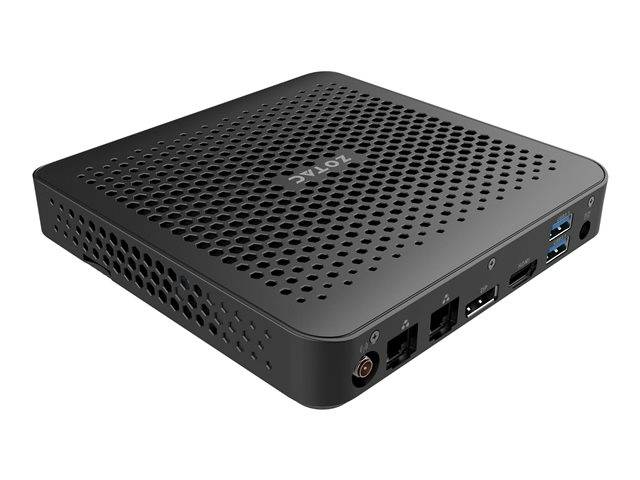

ZOTAC ZBOX M Series MI623 / Barebone / mini PC / 1 x Core i3 10110U / 2.1 GHz / RAM 0 GB / UHD Graphics / GigE / WLAN: 802.11ac, Bluetooth 5.0 | ZBOX-MI623-BE
Description
The ZBOX M Series edge boasts a fresh design featuring an ultra-thin enclosure powered by an efficient processor. With a smart thermal design, efficient power management, and a wide degree of open ventilation, the ZBOX edge maintains a significant low-profile design with a full set of I/O connectivity. Process the IoT data generation with more efficient edge computing or power the everyday computing for enterprise, office, or home.
ZOTAC ZBOX M Series MI623 / Barebone | ZBOX-MI623-BE
Special Features
- Ultra-thin design
- Powerful an thin
- Breakneck connectivity
- Quietly powerful
- Easily upgradable
Product features
- Ultra-thin design
Designed thin for a low-profile placement, the ZBOX M Series edge brings powerful performance with future fast technologies to streamline data processing at the edge of the network and power everyday computing for enterprise, office, and home. - Powerful an thin
The ZBOX edge maintains a significant low-profile design with a wide degree of open ventilation. Equipped with a full suite of standard I/O ports, the ZBOX Series leaves little to want and everything you need. - Breakneck connectivity
Secure the fast lane. With either dual Gigabit Ethernet wired connectivity or 802.11AC dual-band wireless and support for Bluetooth 5, the ZBOX M Series edge make for a powerful remote platform for edge computing and remote connectivity. - Quietly powerful
The ZBOX M Series edge features direct CPU contact, a wide degree of open ventilation, and a Smart Fan that efficiently spins up when required to effectively transfer heat directly out the system for quiet and cool performance. - Easily upgradable
In just a few steps, gain access to the internals to upgrade memory and or storage.
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Localisation | Region: Belgium |
| CPU | Intel Core i3 (10th Gen) 10110U / 2.1 GHz |
| Max Turbo Speed | 4.1 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Type | No optical drive |
| Type | Card reader |
| Supported Flash Memory Cards | microSDHC, microSDXC |
| Monitor Type | None. |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ac, Bluetooth 5.0 |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242 ¦ 1 (total) / 1 (free) x M.2 Card - 2280 |

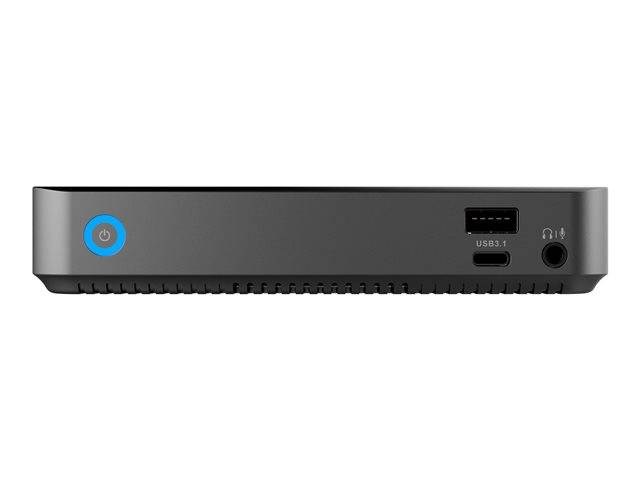

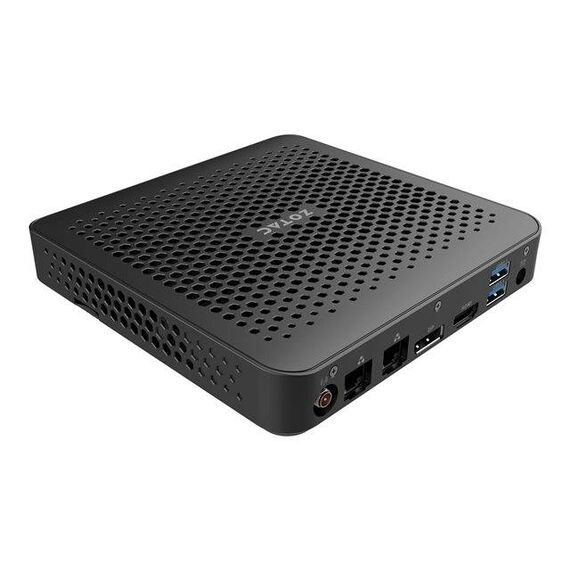

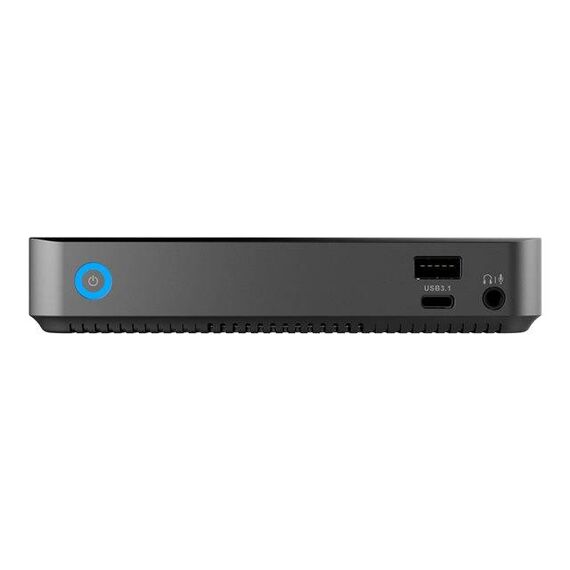

| Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x audio line-out/microphone (1 in front) ¦ 1 x USB-C 3.1 (1 in front) ¦ 3 x USB 3.1 (1 front, 2 rear) |

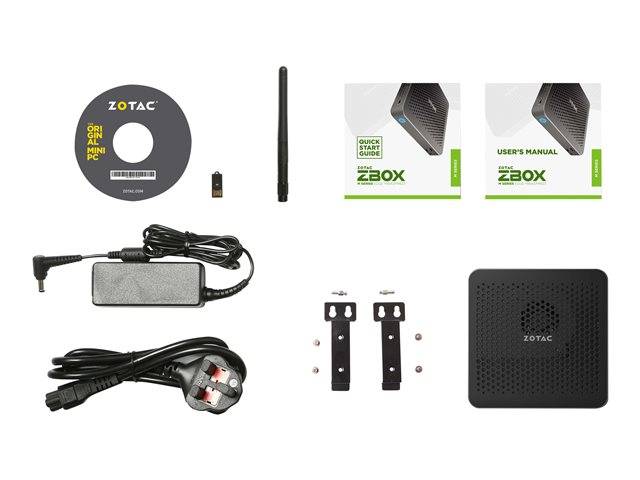

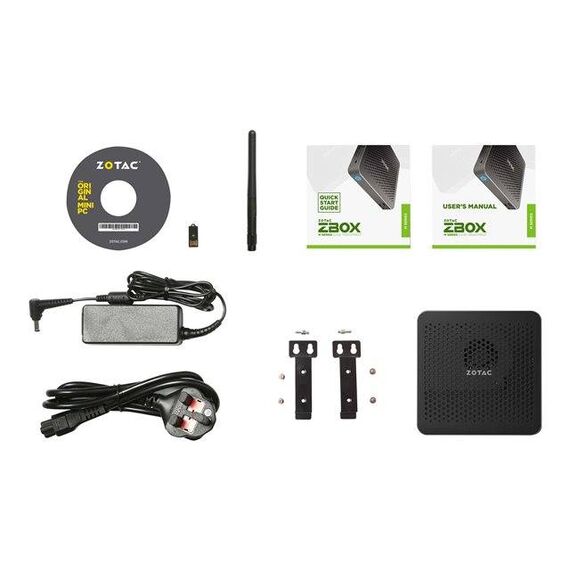

| Included Accessories | Wireless antenna, USB flash drive, VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | Yes |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| OS Provided | No operating system |
| Width | 14.95 cm |
| Depth | 14.95 cm |
| Height | 2.85 cm |
| Shipping Width | 23.5 cm |
| Shipping Depth | 23.5 cm |
| Shipping Height | 8.8 cm |
Features - ZOTAC - ZBOX-MI623-BE
CPU Type
- Intel Core i3
More Details
Product Code
04:334667
EAN Code
4895173621420
Manufacturer
ZOTAC
