ZOTAC ZBOX nano CI629 / Barebone / mini PC / 1 x Core i3 i3-1315U / 1.2 GHz / RAM 0 GB / UHD Graphics / GigE, 2.5 GigE, Bluetooth 5.2, Wi-Fi 6 / WLAN: 802.11a/b/g/n/ac/ax, Bluetooth 5.2 | ZBOX-CI629NANO-BE
ZBOX-CI629NANO-BE
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i3 (13th Gen) i3-1315U |
| Clock Speed | 1.2 GHz (P-core) / 0.9 GHz (E-core) |
| Max Turbo Speed | 4.5 GHz (P-core) / 3.3 GHz (E-core) |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Cache Memory | Cache Memory |
| Installed Size | 10 MB |
| Cache Per Processor | 10 MB |
| RAM | RAM |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR5 SDRAM |
| Form Factor | SO-DIMM 262-pin |
| Slots | 2 (Total) / 2 (empty) |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Card Reader | Card Reader |
| Type | 3 in 1 card reader |
| Supported Flash Memory Cards | SD Memory Card, SDHC Memory Card, SDXC Memory Card |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 3 |
| Audio Output | Audio Output |
| Sound Output Mode | 7.1 channel surround |
| Networking | Networking |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, 802.11ax, Bluetooth 5.2, IEEE 802.11ax (Wi-Fi 6) |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 1 (free) x internal 2 x 2.5" |
| Slots | 1 (total) / 1 (free) x PCIe 4.0 x4 (2230/2242 M.2 Key M slot) |
| Interfaces | 1 x HDMI 2.0b ¦ 1 x DisplayPort 1.4 ¦ 4 x USB 3.1 (1 front, 3 rear) ¦ 1 x USB 2.0 (1 rear) ¦ 1 x aerial (1 rear) ¦ 1 x LAN (2.5Gigabit Ethernet) (1 rear) ¦ 1 x LAN (Gigabit Ethernet) (1 rear) ¦ 1 x Thunderbolt 4/DisplayPort 1.4 (1 front) ¦ 1 x microphone (1 front) ¦ 1 x headphones (1 front) |
| Miscellaneous | Miscellaneous |

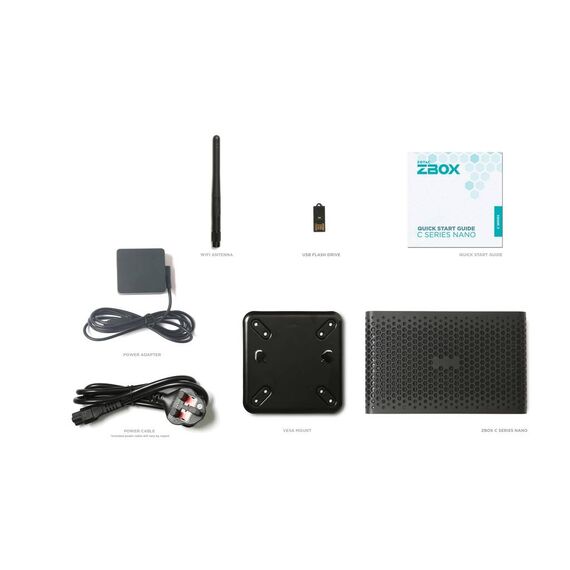

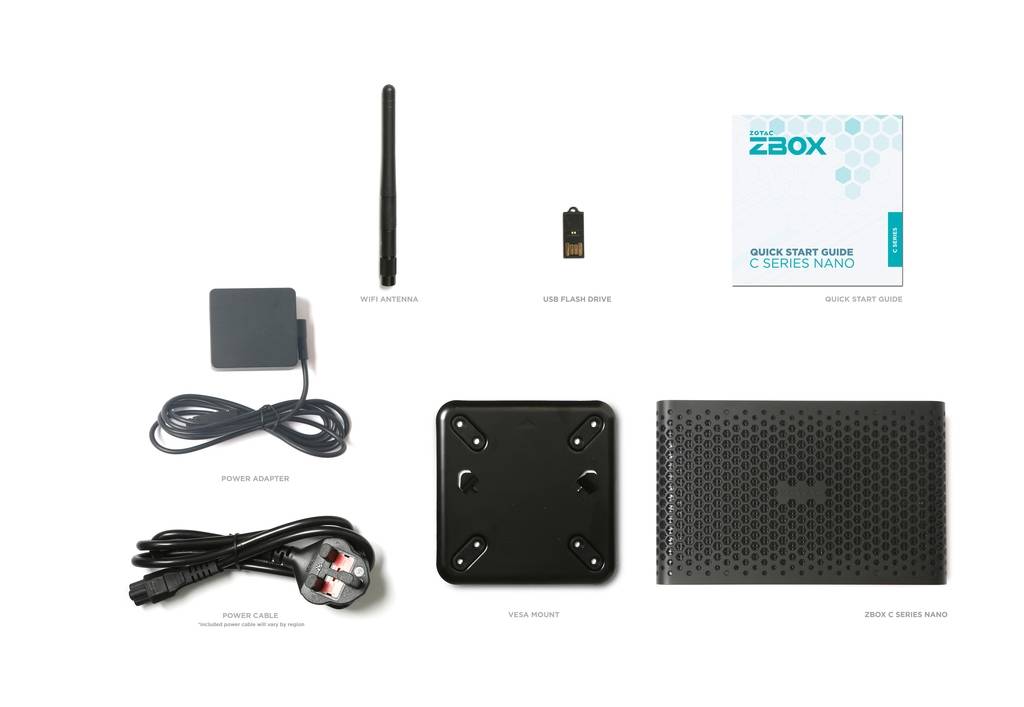

| Included Accessories | USB flash drive, VESA mounting kit, Wi-Fi aerial |
| Power | Power |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 23.5 cm |
| Depth | 12.9 cm |
| Height | 6.8 cm |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 23.5 cm |
| Shipping Depth | 23.5 cm |
| Shipping Height | 8.8 cm |
Features - ZOTAC - ZBOX-CI629NANO-BE
CPU Type
- Intel Core i3
More Details
Product Code
04:440289
EAN Code
4895173627644
Manufacturer
ZOTAC
