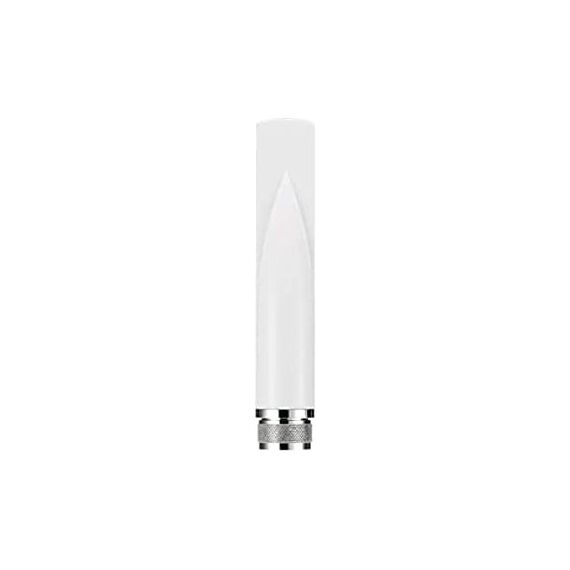

Zyxel ANT2105 / Antenna / 4.5 dBi (for 2.4 / 2.483 GHz), 7 dBi (for 5.15 / 5.875 GHz) / omni-directional / outdoor / grey (pack of 2) | ANT2105-ZZ0201F
ANT2105-ZZ0201F
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Product Specification
| Packaged Quantity | 2 (specifications are for single item) |
| Product Type | Antenna |
| Package Content | N-Type to RP-SMA adapter |
| Width | 2.2 cm |
| Depth | 2.2 cm |
| Height | 18.3 cm |
| Weight | 70 g |
| Enclosure Colour | Grey |
| Aerial | Aerial |
| Aerial Placing / Mounting | Outdoor |
| Frequency Range | 2.4 - 2.483 GHz, 5.150 - 5.875 GHz |
| Gain | 4.5 dBi (for 2.4 - 2.483 GHz), 7 dBi (for 5.15 - 5.875 GHz) |
| Directivity | Omni-directional |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Horizontal Beamwidth | 360° |
| Vertical Beamwidth | 30° (at 2.4 - 2.483 GHz), 15° (at 5.15 - 5.875 GHz) |
| Impedance | 50 Ohm |
| Cabling & Wiring | Cabling & Wiring |
| Connector Provided | 1 x N-Series connector male |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 0 - 95% |
Features - Zyxel - ANT2105-ZZ0201F
More Details
Product Code
04:334456
EAN Code
4718937609413
Manufacturer
Zyxel
