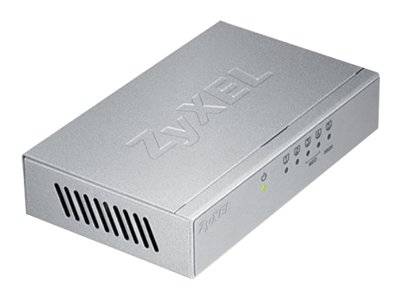

Zyxel GS-105B / V3 / switch / unmanaged / 5 x 10/100/1000 / desktop | GS-105BV3-EU0101F
GS-105BV3-EU0101F
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- 5/8 auto-sensing 10/100/1000 Mbps full-duplex, auto MDI/MDI-X ports
- Full wire-speed store-and-forward technology support
- True plug-and-play installation
- Up to 2000 Mbps bandwidth per port
- Compact stylish design
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Performance | Switching fabric bandwidth: 10 Gbps |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Quality of Service (QoS), 128KB packet buffer, Energy Efficient Ethernet, loop prevention |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x 1000Base-T RJ-45 high priority ¦ 2 x 1000Base-T RJ-45 medium priority ¦ 2 x 1000Base-T RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Power Consumption Operational | 2.5 Watt |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC Class B certified, BSMI |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12.1 cm |
| Depth | 7.5 cm |
| Height | 2.6 cm |
| Weight | 229 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 95% (non-condensing) |
Features - Zyxel - GS-105BV3-EU0101F
General
5-Port
More Details
Product Code
B776827
EAN Code
4718937586295
Manufacturer
Zyxel
