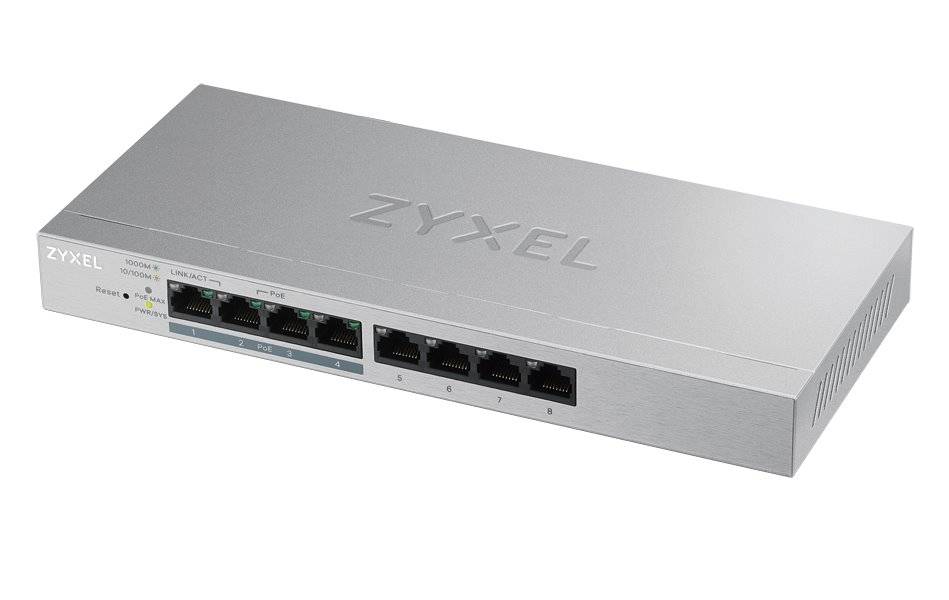

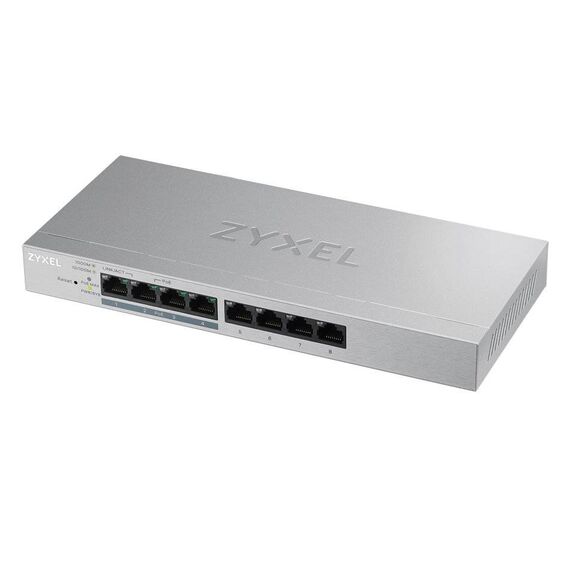

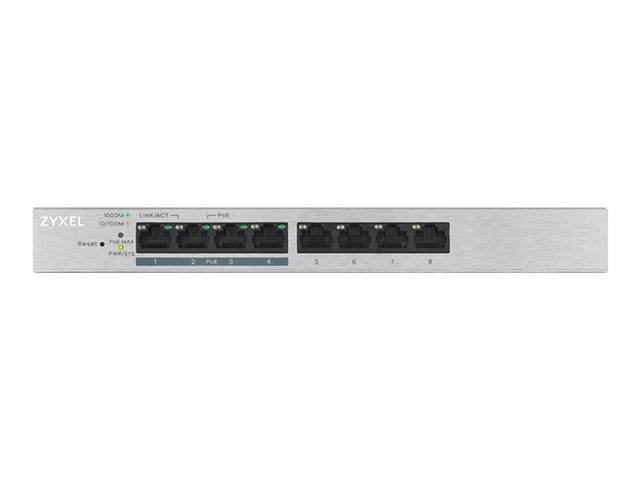

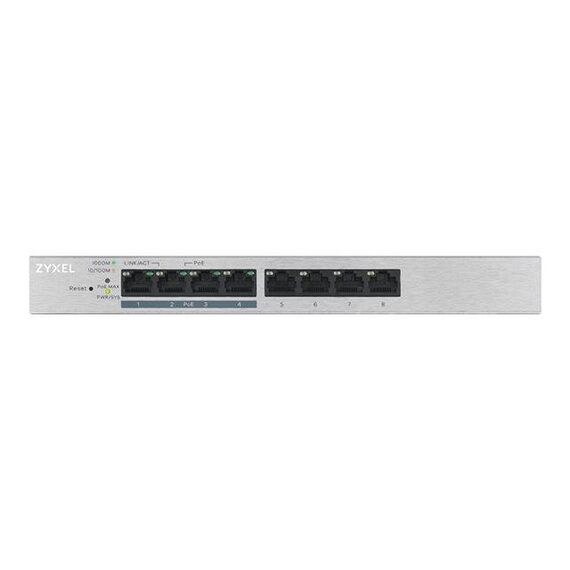

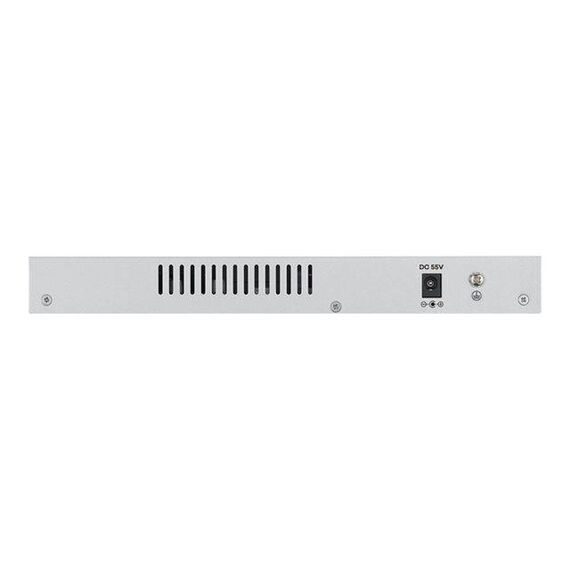

Zyxel GS1200-8HP v2 / Switch / Managed / 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) / desktop / PoE+ (60 W) | GS1200-8HPV2-EU0101F
Product Specification
| Device Type | Switch - 8 ports - Managed |
| Enclosure Type | Desktop |
| Subtype | Gigabit Ethernet |
| Ports | 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 60 W |
| Performance | Switching capacity: 16 Gbps |
| Capacity | LAG groups: 2 ¦ Multicast groups: 128 |
| MAC Address Table Size | 4K entries |
| Jumbo Frame Support | 9KB |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Remote Management Protocol | HTTP |
| Features | Flow control, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, Broadcast Storm Control, firmware upgradable, Quality of Service (QoS), DHCP client, loop prevention, 192KB packet buffer, Class of Service (CoS), administrator's password, Link Aggregation, Energy-Efficient Ethernet (EEE), Weighted Round Robin (WRR), loopback detection, VLAN Tagging, port-based QoS |
| Compliant Standards | IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az |
| Status Indicators | Port status, power, PoE |
| Interfaces | 4 x 1000Base-TX RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-TX RJ-45 |
| Power Device | External power adapter |
| Power Provided | 55 V - 1.3 A |
| Power Consumption Operational | 72 Watt |
| Included Accessories | Rubber feet |
| Compliant Standards | EMC, FCC, RoHS, BSMI Class B, LVD |
| Width | 24 cm |
| Depth | 10.5 cm |
| Height | 2.6 cm |
| Weight | 584 g |
| Shipping Width | 25.6 cm |
| Shipping Depth | 13.2 cm |
| Shipping Height | 7.8 cm |
| Shipping Weight | 1.153 kg |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 10 - 90% (non-condensing) |
Features - Zyxel - GS1200-8HPV2-EU0101F
General
8-Port
More Details
Product Code
04:271579
EAN Code
4718937600601
Manufacturer
Zyxel
