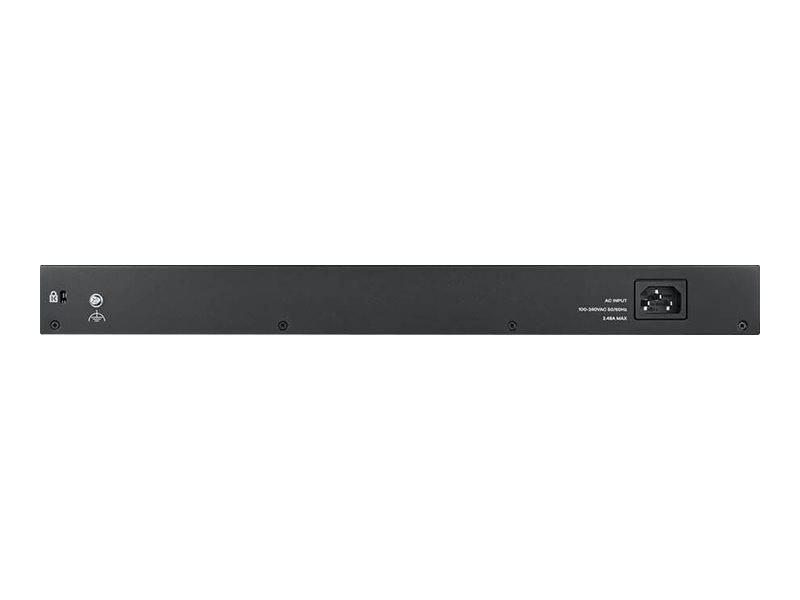

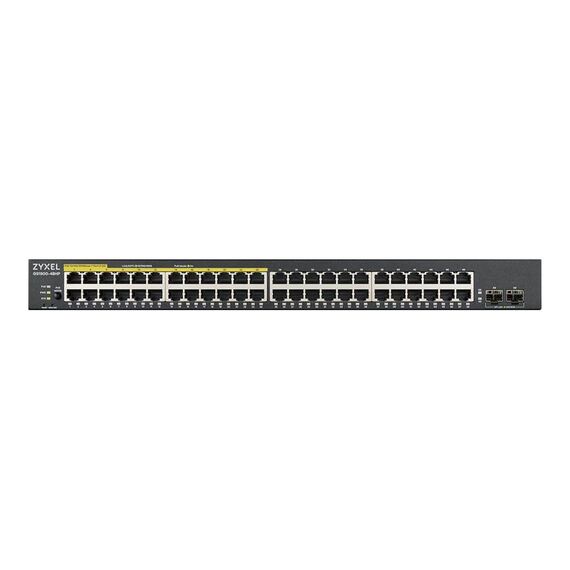

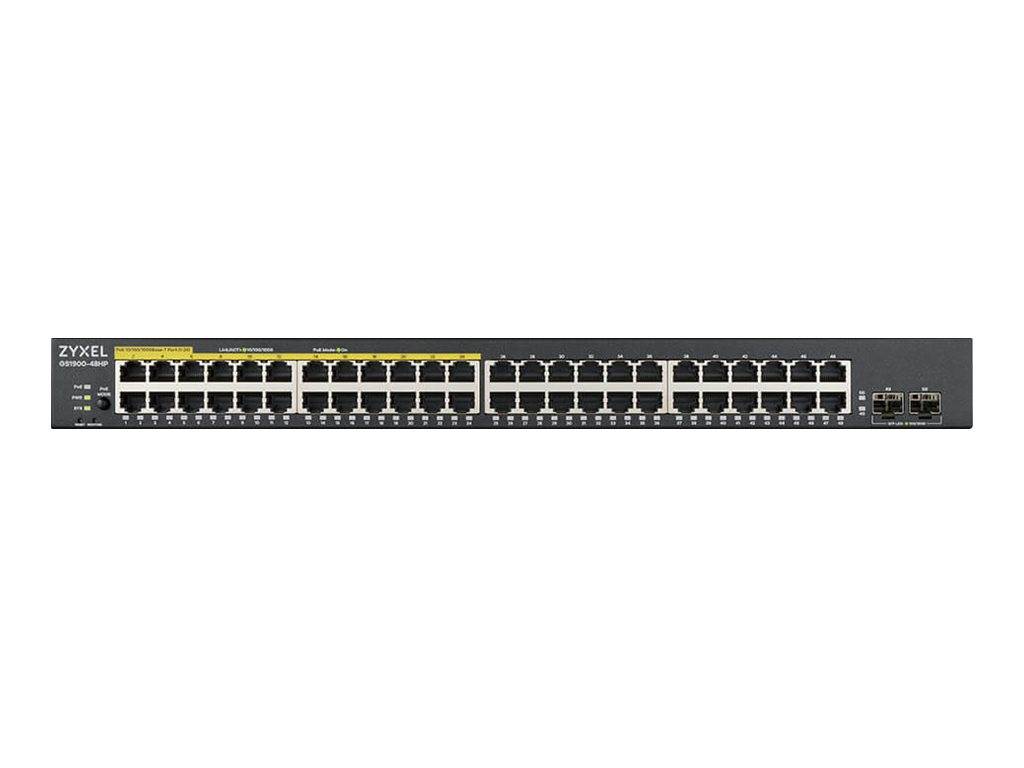

Zyxel GS1900 Series GS1900-48HPv2 / Switch / smart / 48 x 10/100/1000 (24 PoE+) + 2 x Gigabit SFP (uplink) / desktop, rack-mountable / PoE+ (170 W) | GS190048HPV2-EU0101F

GS190048HPV2-EU0101F
514.91
(612.74 inc. VAT)
Availability: 14 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Find similar
Delivery
Payment options
Product Code04:356647 EAN Code4718937609543 ManufacturerZyxel

Product Features

  • Avoid downtime and maximize throughput with Advanced Network Error prevention
    Loop protection and storm control keep your network running at top speed while dual image firmware and Dos detection ensure robust, high availability connectivity.
  • Quick and easy deployment with web management and set-up wizards
    Even complex configurations take no more than a few clicks and a matter of minutes, saving time and resources while accelerating deployment.
  • Designed for any location; server room, board room or desk
    Silent, fanless operation plus flexible desk, wall or rack mounting options make this the ideal solution for use throughout your organization.
  • High-powered, intelligent PoE to protect your investment
    With PoE+ the rising power demand of powered devices is met. Additionally each PoE port automatically reserves only the power it needs with programmable feed priority. This ensures the maximum number of devices can be powered, protecting your ROI.
  • Gigabit to the desktop
    When videos of high resolution and data flow constantly evolve, GbE bandwidth to desktops becomes essential to ensure sufficient bandwidth for all business communications, data delivery and daily operations.
  • Reduce your energy bills and carbon footprint
    Inactive link detection, cable length detection and EEE compliant traffic detection all minimize power usage by matching power consumption to true demand.
  • Future-proof your investment with IPv6 support
    Full IPv6 support with features including autoconfiguration, duplicate address prevention, dual-stack and neighbor discovery will ensure your investment is protected.
  • Find your perfect solution with flexible chassis options
    From 8 ports to 48 ports with gigabit SFP uplink options and Intelligent PoE available on 8, 24 and 48 port models, the GS1900 range will include the perfect switch for your application.
  • High level security to safeguard your network
    A host of security features including RADIUS and TACACS+ support, SSL, port security, static MAC forwarding and layer 2 MAC filtering, will ensure maximum protection for your network.
  • Stream real-time voice and video without a glitch
    Extensive QoS and CoS features such as 802.1Q VLAN tagging, Voice VLAN, input priority mapping, 802.1p Class of Service and IP TOS precedence will ensure realtime service for even the most demanding applications.

Special Features

  • Avoid downtime and maximize throughput with Advanced Network Error prevention
  • Quick and easy deployment with web management and set-up wizards
  • Designed for any location; server room, board room or desk
  • High-powered, intelligent PoE to protect your investment
  • Gigabit to the desktop
  • Reduce your energy bills and carbon footprint
  • Future-proof your investment with IPv6 support
  • Find your perfect solution with flexible chassis options
  • High level security to safeguard your network
  • Stream real-time voice and video without a glitch

Product Specification

Device Type Switch - 48 ports - smart
Enclosure Type Desktop, rack-mountable
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 (24 PoE+) + 2 x Gigabit SFP (uplink)
Power Over Ethernet (PoE) PoE+
PoE Budget 170 W
Performance Switching capacity: 100 Gbps ¦ Forwarding performance: 74 Mpps
MAC Address Table Size 8K entries
Jumbo Frame Support 9KB
Routing Protocol IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP
Remote Management Protocol SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, HTTP, NTP, ICMP, DHCP, IPv6, RSTP, TACACS+, RADIUS
Encryption Algorithm SSL
Authentication Method RADIUS, TACACS+
Features Flow control, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, IPv6 support, half duplex mode, full duplex mode, firmware upgradable, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, Quality of Service (QoS), LLDP support, Port Security, DHCP client, dual firmware images, Ring Rapid Spanning Tree Protocol (RRSTP), Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), Class of Service (CoS), security lock slot (cable lock sold separately), 525KB packet buffer, Type of Service (ToS), Storm Control, Back Pressure Support, Internet Control Message Protocol (ICMP), Management Information Base (MIB) II, rate limit, schedule PoE, Voice VLAN, LLDP-MED, Guest VLAN, Energy-Efficient Ethernet (EEE), VLAN Tagging, priority mapping, Link Aggregation Group (LAG), Smart Fan
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Built-in Devices Led panel
Expansion / Connectivity Expansion / Connectivity
Interfaces 24 x 1000Base-T RJ-45 ¦ 24 x 1000Base-T RJ-45 PoE+ ¦ 2 x Gigabit LAN SFP uplink
Power Power
Power Device Internal power supply
Voltage Required AC 100-240 V (50/60 Hz)
Miscellaneous Miscellaneous
Rack Mounting Kit Included
MTBF 612,215 hours
Compliant Standards FCC Class B certified, C-Tick Class B, RoHS, EN 60950-1, BSMI CNS 13438, LVD, CNS 14336-1
Dimensions & Weight Dimensions & Weight
Width 44.1 cm
Depth 27 cm
Height 4.4 cm
Weight 3.55 kg
Dimensions & Weight (Shipping) Dimensions & Weight (Shipping)
Shipping Width 62.2 cm
Shipping Depth 35.8 cm
Shipping Height 10.8 cm
Shipping Weight 5.04 kg
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters Environmental Parameters
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 10 - 95% (non-condensing)
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
Humidity Range Storage 10 - 95% (non-condensing)
