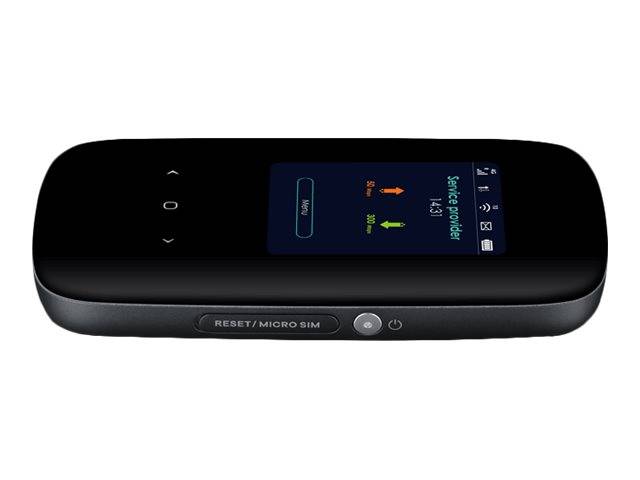

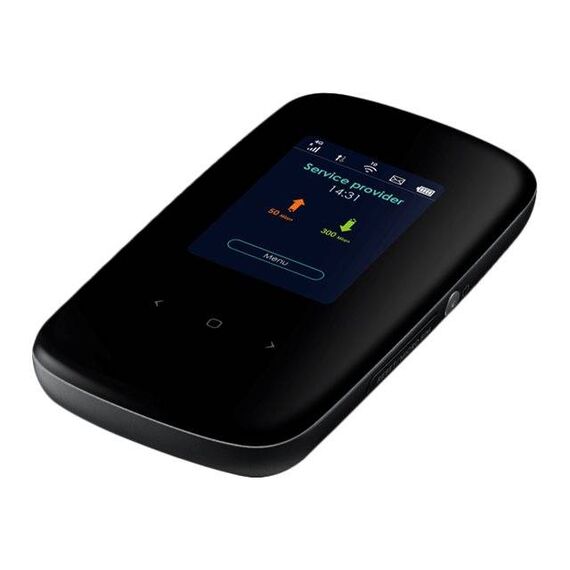

Zyxel LTE2566-M634 / Mobile hotspot / 4G LTE / 300 Mbps / 802.11ac | LTE2566-M634-EUZNV1F

Product Specification

Device Type	Mobile hotspot
Form Factor	External
Built-in Devices	2.4" display
Localisation	Europe
Connectivity Technology	Wireless
Max Transfer Rate	300 Mbps
Mobile Band	HSPA+/UMTS 900/2100 / LTE B1/B20/B28/B3/B38/B40/B41/B7/B8
Mobile Communication Protocol	UMTS, HSUPA, HSPA+, DC-HSPA+, FDD LTE, TDD LTE
Antenna	Internal
Connectivity Technology	Wireless
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Data Transfer Rate	300 Mbps
Features	Firewall protection, ALG support, MAC address filtering, URL filtering, IP address filtering, firmware upgradable, Auto Channel Select (ACS), Access Control List (ACL) support, DHCP server, hidden SSID, DNS proxy, port forwarding, reset button, power-saving mode, Wi-Fi Protected Setup (WPS v2), dual band, TR-069 Remote Management, DMZ support, DynDNS
Compliant Standards	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Interfaces	1 x micro-USB
SIM Card Supported	Micro-SIM x 1
Encryption Algorithm	WPA-PSK, WPA2-PSK
Compliant Standards	EMC, WEEE, HSF, UN38.3, Directive 94/62/EC, SAR, RoHS 2011/65/EC
Battery	Lithium polymer
Capacity	3000 mAh - up to 10 hrs
OS Required	Ubuntu 12.04 LTS, Ubuntu 14.04 LTS, Microsoft Windows XP / Vista / 7 / 8 / 10, Apple MacOS X 10.7 - 10.13
Width	11.82 cm
Depth	6.5 cm
Height	1.57 cm
Weight	130 g
Shipping Width	15 cm
Shipping Depth	8 cm
Shipping Height	5 cm
Shipping Weight	270 g
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	5 - 95% (non-condensing)
