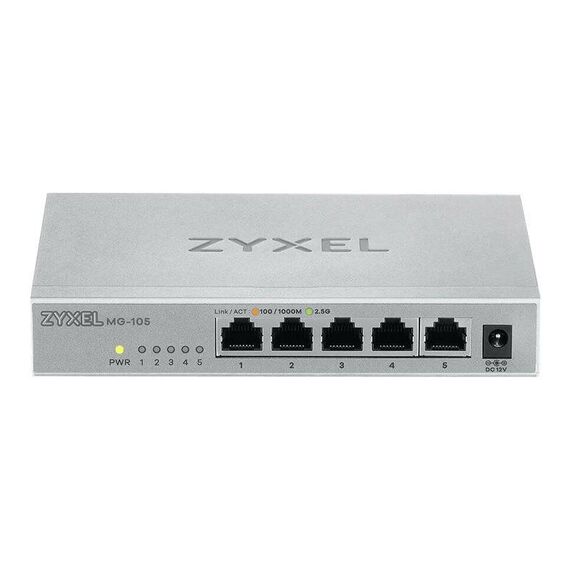

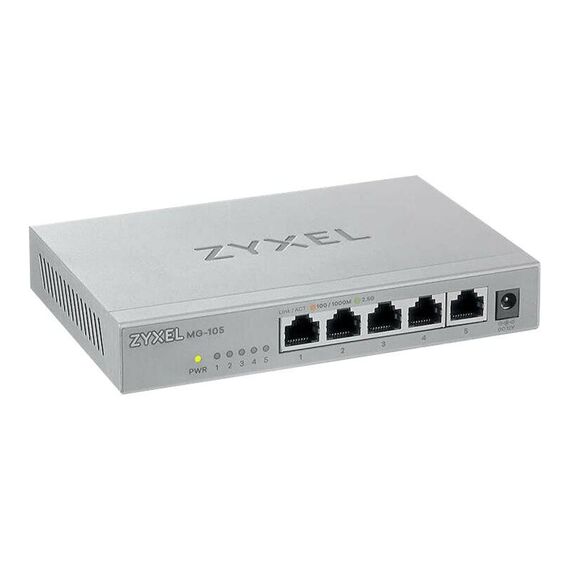

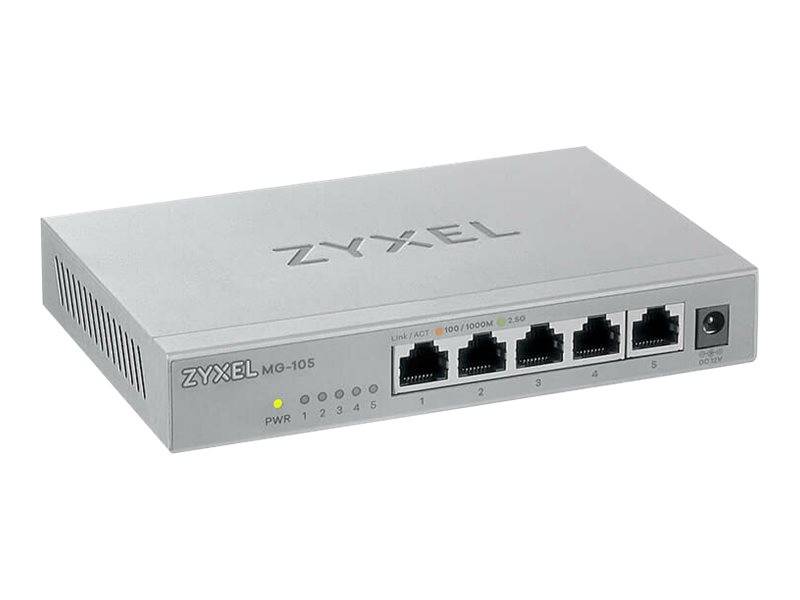

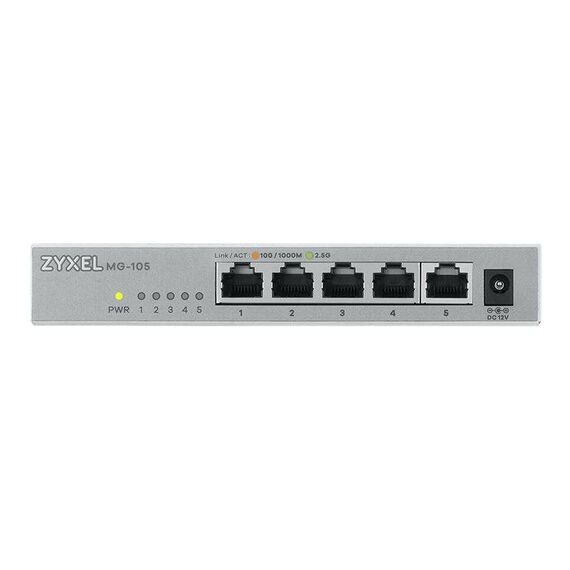

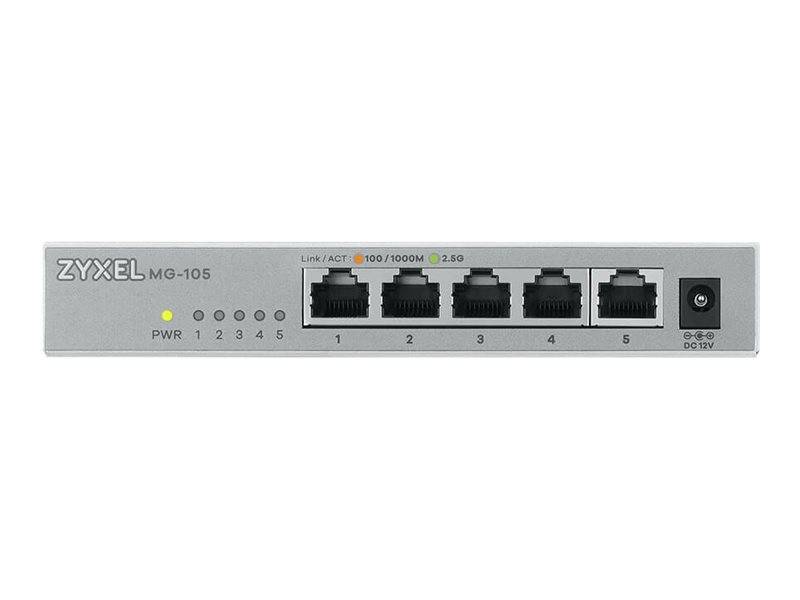

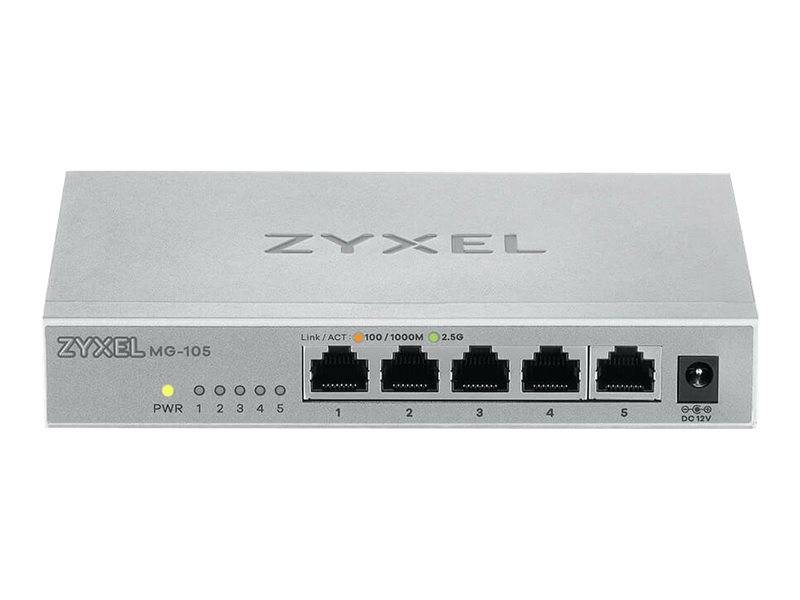

Zyxel MG-105 / Switch / unmanaged / 5 x 100/1000/2.5G Base-T / desktop | MG-105-ZZ0101F
Please sign in so that we can notify you about a reply
Product Features
- Plug-n-Play, enjoy high speed network
Easily connect MG-105 to the latest 2.5G-capable network devices such as 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, Wi-Fi 6 AP, 4K video, desktop, and more and more to instantly enjoy high performance networking and smoother home entertainment experience with its simplified plug-and-play technology. - Use your existing cables
The Multi-Gigabit RJ-45 ports not only provide more speed options for your network, but it can increase your home networking speed from current 1Gbps to 2.5Gbps without additional cabling fee! - Fanless design for true silent operation
MG-105 is built with fanless and sturdy hardware design to ensure all-time silent and stable operation. It's perfect for every home or business environment.
Special Features
- Plug-n-Play, enjoy high speed network
- Use your existing cables
- Fanless design for true silent operation
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop |
| Subtype | 2.5 Gigabit Ethernet |
| Ports | 5 x 100/1000/2.5G Base-T |
| Performance | Switching capacity: 25 Gbps ¦ Forwarding performance: 18.6 Mpps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 12KB |
| Features | Flow control, full duplex capability, auto-negotiation, auto-uplink (auto MDI/MDI-X), wall mountable, Quality of Service (QoS), fanless, 12MB packet buffer |
| Compliant Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3bz |
| Built-in Devices | Led panel |
| Status Indicators | Port transmission speed, power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x 100/1000/2.5G RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | Plug and Play, FCC, BSMI Class B, EAC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 16 cm |
| Depth | 11 cm |
| Height | 2.6 cm |
| Weight | 460 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 21.5 cm |
| Shipping Depth | 13.3 cm |
| Shipping Height | 7.9 cm |
| Shipping Weight | 919.6 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
Features - Zyxel - MG-105-ZZ0101F
General
5-Port
More Details
Product Code
04:379340
EAN Code
4718937620203
Manufacturer
Zyxel
