Zyxel NWA1123-ACV2 / Radio access point / 802.11a/b/g/n/ac / Dual Band / AC 100/230 V / in-ceiling | NWA1123-ACV2-EU0101F

Brand: Zyxel

CODE (SKU):

NWA1123-ACV2-EU0101F

€106.37 €118.19

€126.58 inc. VAT

Out of stock

Add to wish list Ask a question

Product CodeB776807 EAN Code4718937591862 ManufacturerZyxel

Sales 10%

Find similar

Delivery

Payment options

Description
Features

Zyxel NWA1123-ACV2 / Radio access point / 802.11a/b/g/n/ac / Dual Band / AC 100/230 V / in-ceiling | NWA1123-ACV2-EU0101F

Description

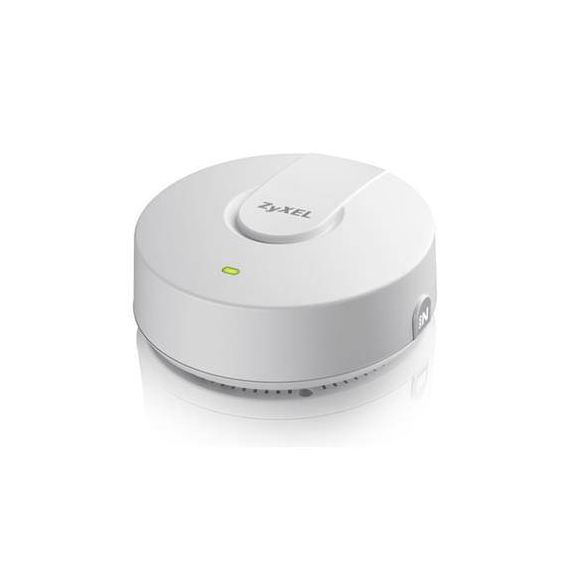

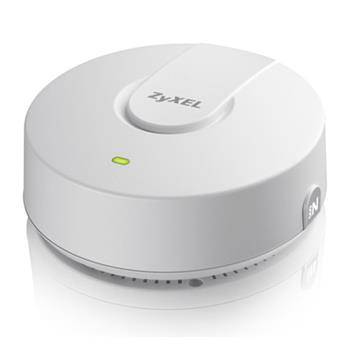

Struggling between performance and environment cohesion when deploy business wireless APs is in past. The smoke detector-style exterior of NWA1123-ACv2 is suitable for ceiling-mount that not only outperforms but also blends into the interior better as well prevents equipment theft.

Zyxel NWA1123-ACV2 / Radio access point / Dual Band / in-ceiling | NWA1123-ACV2-EU0101F

Special Features

Optimize for what you need
Blending multi-operation flexibility with practical business features

Product features

Optimize for what you need
To create a thoroughly enhanced Wi-Fi experience, NWA1123-ACv2 made a big move on optimized antennas and RF design via improving software and upgrade hardware. As well as NWA1123-ACv2 featuring DCS and loading balance to deliver smooth Wi-Fi in SMB venues.
Blending multi-operation flexibility with practical business features
NWA1123-ACv2 provides repeater/root-AP mode compatibility with Zyxel Unified Pro and Unified APs, that users can extend wireless connectivity to difficult cabling locations without the bother of troublesome cabling. Also, as an ideal solution, NWA1123-ACv2 offers an array of practical features like multiple SSID, solid Wi-Fi security.

Product Specification

Device Type	Radio access point
Width	13 cm
Depth	13 cm
Height	5.47 cm
Weight	300 g
Localisation	Europe
Form Factor	In-ceiling
Connectivity Technology	Wireless
Data Transfer Rate	866 Mbps
Line Coding Format	DBPSK, DQPSK, CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM
Data Link Protocol	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
Remote Management Protocol	SNMP, SSH, CLI
Frequency Band	2.4 GHz, 5 GHz
Features	VLAN support, MAC address filtering, IPv6 support, Multiple SSID support, 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, DHCP client, Cyclic Delay Diversity (CDD), Maximum Likelihood Demodulation (MLD)
Encryption Algorithm	TLS, PEAP, TTLS, WPA, WPA2, WPA-PSK, WPA2-PSK, WPA-Enterprise, WPA2-Enterprise, WEP
Authentication Method	RADIUS, Radio Service Set ID (SSID), Extensible Authentication Protocol (EAP), EAP-FAST
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac
Antenna	Internal
Interfaces	1 x 1000Base-T (PoE) - RJ-45
MTBF	1,727,244 hour(s)
Compliant Standards	EN 61000-3-2, EN55022, EN 61000-3-3, EN55024, EN 301.489.1, EN 301.489.17, FCC Part 15 B, FCC Part 15 C, IEC 60950-1, EN 60950-1, FCC Part 15 E, BSMI CNS 13438, EN 301.893, EN 60601-1-2, BSMI CNS 14336, EN 300 328, BSMI CNS 14336-1
Power Over Ethernet (PoE) Supported	PoE
Power Device	External power adapter
Voltage Required	AC 100/230 V (50/60 Hz)
Power Consumption Operational	9 Watt
Min Operating Temperature	0 Â°C
Max Operating Temperature	50 Â°C
Humidity Range Operating	10 - 90% (non-condensing)
