Zyxel USG Flex 100 / Firewall / 4 ports / GigE | USGFLEX100-EU0111F
Product Features
- Robust security without sacrificing performance
The Zyxel USG 100 Series is built with a powerful Integrated high-performance security architecture that provides real-time inspection to prevent networks from threats without sacrificing performance. Corporate networks are not only flawlessly secured but also get significant performance enhancements on productivity and efficiency since file loading, emailing and information searching applications are processed at higher speeds. - Comprehensive IPv6 support smoothly connects future-ready networks
The Zyxel USG Series is IPv6-ready today and is certified with "IPv6 Ready" gold logo. With IPv6 feature enabled, the USG Series ensures businesses with a smooth migration path from the IPv4-based networks to the full IPv6 infrastructure. It assigns IPv6 addresses to clients and passes the IPv6 traffics through the IPv4 environment. The USG Series supports dual-stack and IPv4 tunneling (6rd and 6to4 transition tunnel) implementations for Internet connectivity to access IPv6 applications. - EASY VPN reduces operation cost and time
Establishing a VPN tunnel is a good way to build secure connections among remote offices, branch offices and partners; however it is difficult for non-technical employees, such as sales people, to use because of complicated configuration. The Zyxel USG Series is equipped with the "EASY VPN" solution to push configuration files to the VPN clients automatically; this eliminates the configuration efforts while securing the access at the same time. In addition, the USG Series supports L2TP VPN technology on iPhones, Android phones and many other mobile devices as L2TP VPN enables employees in remote places to connect to the headquarters with easy and free access. - Content filter for safer Web surfing
The World Wide Web has become the main target for network threats, since the Internet itself is a very effective malware delivery mechanism. With threats hidden directly in contents such as cookies, add-ons and rootkits, it makes malware exceptionally difficult to detect. The Zyxel USG Series content filter solution provided by Blue Coat and Commtouch, the leading providers, reduces costs and extends protection by combining a comprehensive, integrated database featuring millions of URLs, IP addresses and domains. With the solution, the USG Series not only enables real-time protection that deters emerging Web threats including malware and phishing, but also blocks or monitors certain sites to maintain employee productivity. - Powerful Email security
The Zyxel USG Series delivers industry-leading protection, powered by Commtouch, against spam, phishing and virus-laden emails. The extremely high performance of Commtouch technology comes from the unique recurrent pattern detection (RPD) mechanism that possesses its superior capability through analyzing millions of new patterns each day (24 x 7 x 365) to block all the associated messages real-time. In addition, the Zyxel USG applies sender-based IP reputation to remove over 80% of unwanted mails and to take advantage of the zero-hour virus outbreak protection feature, which is capable of blocking or delaying suspicious messages hours before commercial anti-virus signatures are available. - More 3G card support
The Zyxel USG Series not only supports multiple WAN ports but also 3G networks through USB or PC cards. With 3G connections, the USG Series enables load sharing or failover to deliver highly reliable network connectivity; it also supports more 3G cards with generic driver to ensure excellent interoperability. Since the customers don't have to purchase specific 3G cards to save cost.
Special Features
- Robust security without sacrificing performance
- Comprehensive support to IPv6
- Robust hybrid VPN (IPSec/SSL/2TP)
- Zero-configuration remote access with EASY VPN
- Supports L2TP VPN on mobile device (iPhone and Android phone)
- ICSA firewall, IPSec certification
- Content filter stops malware and Web threats
- Powerful Email security
- Non-stop Internet access with multiple WAN and 3G backups
Product Specification
Device Type | Firewall |
Width | 21.6 cm |
Depth | 14.73 cm |
Height | 3.3 cm |
Weight | 850 g |
Networking | Networking |
Form Factor | External |
Ports Qty | 4 |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Network / Transport Protocol | L2TP, IPSec, PPPoE, FTP, HTTP, HTTPs |
Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, GRE, policy-based routing (PBR) |
Remote Management Protocol | SNMP 1, SNMP 3, SNMP 2c, HTTP, HTTPS, Syslog |
Performance | SPI firewall throughput: 900 Mbps ¦ VPN throughput: 270 Mbps ¦ IPS throughput: 540 Mbps ¦ VPN throughput (IMIX): 100 Mbps ¦ Unified Threat Management (UTM) throughput: 360 Mbps ¦ AV throughput: 360 Mbps ¦ Anti-malware throughput: 360 Mbps |
Capacity | Concurrent TCP sessions: 300000 ¦ Concurrent IPSec VPN tunnels: 40 ¦ Concurrent SSL VPN users: 30 ¦ VLANs supported: 8 ¦ Concurrent devices: 64 |
Status Indicators | Power, system, WAN, LAN |
Features | NAT support, VPN support, PAT support, SNAT support, Syslog support, Intrusion Prevention System (IPS), firmware upgradable, anti-malware protection, virtual server support, DHCP server, fanless, e-mail protection, DHCP relay, IP-MAC binding, DHCP client, e-mail notification, 802.1x authentication, cloud managed, Single Sign-On (SSO) support, Reputation Enabled Defense, Web Filtering, router mode, SSL inspection, Microsoft Azure support, traffic monitoring, Application Patrol, Bandwidth Limiter, bridge mode, 2-factor authentication, SecuReporter, Amazon VPC, session rate limiting, dynamic DNS, sandboxing, collaborative detection & response, Geo Enforcer, device insight, security profile synchronise |
Encryption Algorithm | SSL, WPA2-Enterprise, IKEv2 |
Authentication Method | RADIUS, X.509 certificates, LDAP, Extensible Authentication Protocol (EAP), XAUTH authentication |
Compliant Standards | IEEE 802.1Q, IEEE 802.1x |
Expansion / Connectivity | Expansion / Connectivity |

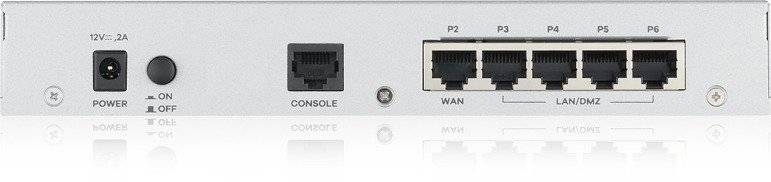

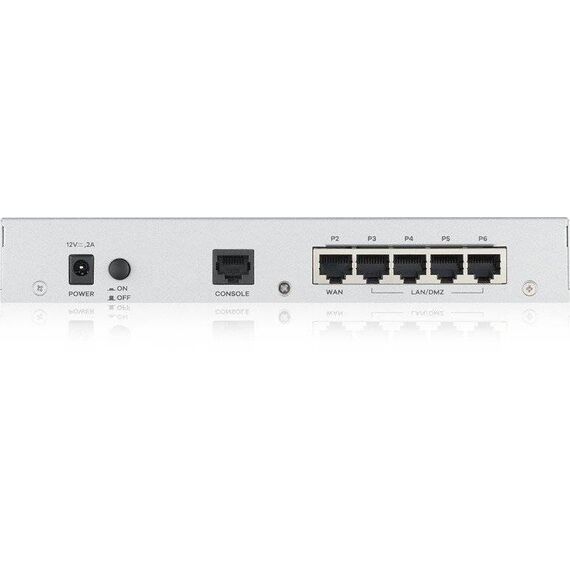

Interfaces | 4 x 1000Base-T - RJ-45 (LAN / DMZ) ¦ 1 x 1000Base-T - RJ-45 (WAN) ¦ 1 x USB 3.0 - Type A |
Miscellaneous | Miscellaneous |
Cables Included | 1 x console cable |
MTBF | 989,810.8 hour(s) |
Compliant Standards | BSMI, FCC Part 15 B, EN 60950-1, LVD, EMC Class B |
Power | Power |
Power Device | External power adapter |
Voltage Required | DC 12 V |
Power Consumption Operational | 12.5 Watt |
Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
Shipping Width | 28.4 cm |
Shipping Depth | 19 cm |
Shipping Height | 10 cm |
Shipping Weight | 1.4 kg |
Environmental Parameters | Environmental Parameters |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 90% (non-condensing) |
