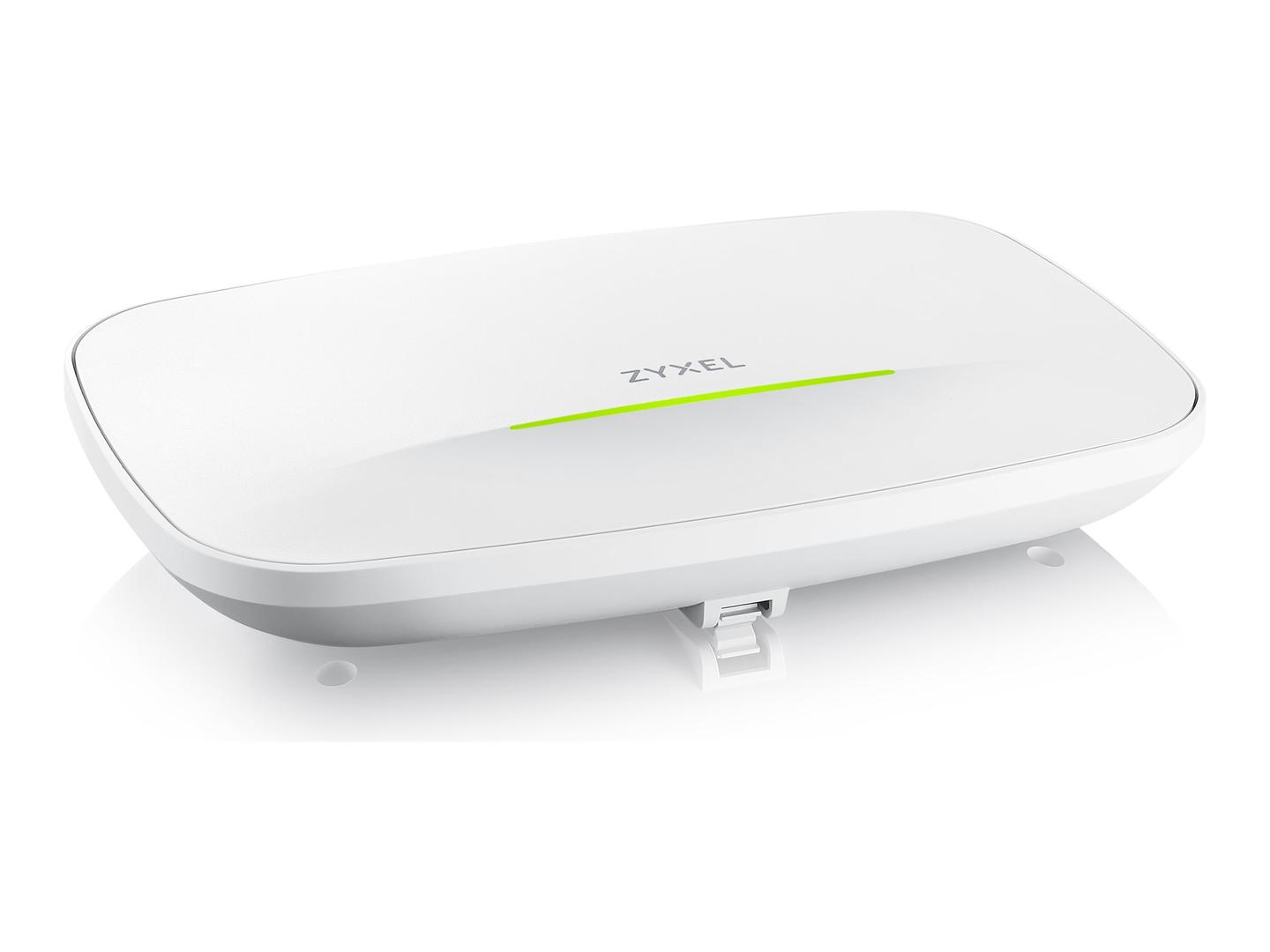

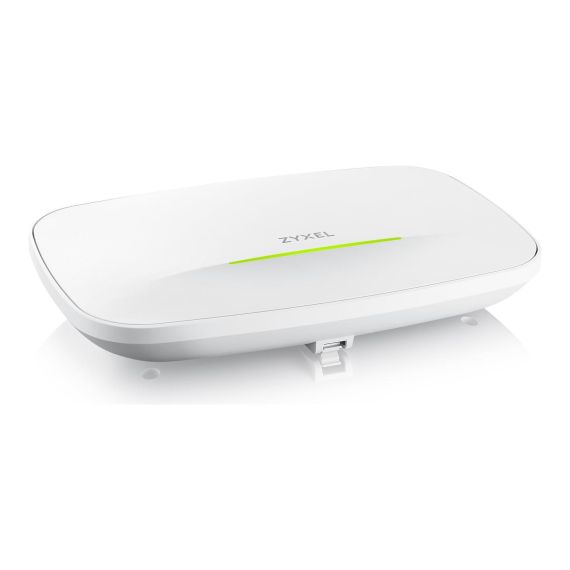

Zyxel WBE510D - Radio access point - BE6500, NebulaFlex Pro - Wi-Fi 7 - Wi-Fi 7 - 2.4 GHz, 5 GHz, 6 GHz - cloud-managed | WBE510D-EU0101F

Product Features
- Efficient performance
The Zyxel WBE510D provides excellent performance with maximum data rates of 688 Mbps on the 2.4 GHz band, 4324 Mbps on the 5 GHz band, and 5764 Mbps on the 6 GHz band, catering to high bandwidth applications. - Robust security
Equipped with advanced encryption protocols including WPA, WPA2, and WPA3, the access point ensures secure connectivity for all devices on the network, protecting sensitive information from unauthorized access. - Flexible management
With NebulaFlex Pro support, the device allows for cloud-based management, enabling users to easily monitor and configure network settings from anywhere, enhancing accessibility and control. - Advanced functionalities
The unit features load balancing, VLAN support, and dynamic channel selection, providing superior network management and performance optimization across multiple devices and users. - Multi-band capability
Supporting 2.4 GHz, 5 GHz, and 6 GHz bands, the WBE510D effectively manages wireless connectivity to accommodate various devices, maximizing network efficiency in diverse environments.
Special Fetures
- Delivers data rates of up to 5764 Mbps on 6 GHz band
- Supports advanced encryption standards including WPA3
- Features cloud management with NebulaFlex Pro support
- Offers load balancing and dynamic channel selection for better performance
- Compatible with multiple Wi-Fi standards including Wi-Fi 6E and Wi-Fi 7
Product Specification
Device Type | Radio access point |
Width | 25 cm |
Depth | 16 cm |
Height | 4.7 cm |
Weight | 810 g |
Localisation | Europe |
Networking | |
Form Factor | External |
Connectivity Technology | Wireless |
Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11be (Wi-Fi 7) |
Network / Transport Protocol | IPv6 |
Remote Management Protocol | SNMP, CLI |
Cloud-Managed | Yes |
Frequency Band | 2.4 GHz, 5 GHz, 6 GHz |
Performance | Maximum data rate (2.4 GHz): 688 Mbps <br /> Maximum data rate (5 GHz): 4324 Mbps <br /> Maximum data rate (6 GHz): 5764 Mbps |
Wi-Fi Rating | BE6500 |
Features | 2x2 MIMO 2.4Ghz, 2x2 MIMO 5GHz, 4x4 MIMO 6GHz, NebulaFlex Pro support, band steering, WDS/Mesh, PMK Caching, Pre-Authentication, Dynamic Channel Selection (DCS), load balancing, Advanced Cellular Coexistence (ACC), L2-isolation, MAC address filtering, rogue AP detection, VLAN support, Wi-Fi Multimedia (WMM) support, Unscheduled Automatic Power Save Delivery (U-APSD) |
Encryption Algorithm | WPA, WPA2, WEP, WPA3 |
Authentication Method | RADIUS |
Compliant Standards | Wi-Fi CERTIFIED 7, IEEE 802.11k, IEEE 802.11r, IEEE 802.11v, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
Aerial | |
Antenna | Internal |
Expansion / Connectivity | |
Interfaces | 1 x 1/2.5GBase-T (PoE) - RJ-45 <br /> 1 x USB (power only) - Type C |
Miscellaneous | |
Included Accessories | Mounting screws, mounting plate |
MTBF | 691,722 hour(s) |
Compliant Standards | IEEE 802.3at, FCC Part 15 C, FCC Part 15 E, FCC 47 CFR Part 2.1091, ETSI EN 300 328, EN 301 893, EN 303 687, EN 50385, EN 50665, EN IEC 62311, LP0002, FCC Part 15 B, EN 301 489-1, EN 301 489-17, EN 55032, EN55035, EN 61000-3-2, EN 61000-3-3, EN 60601-1-2, BSMI CNS 15936, EN 62368-1, IEC 62368-1, BSMI CNS 15598-1 |
Power | |
Power Over Ethernet (PoE) Supported | PoE |
Power Device | Power injector (not included) |
Dimensions & Weight (Shipping) | |
Shipping Width | 27.95 cm |
Shipping Depth | 18.05 cm |
Shipping Height | 6.6 cm |
Shipping Weight | 1.035 kg |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 50 °C |
Humidity Range Operating | 10 - 95% (non-condensing) |
Features - Zyxel - WBE510D-EU0101F
