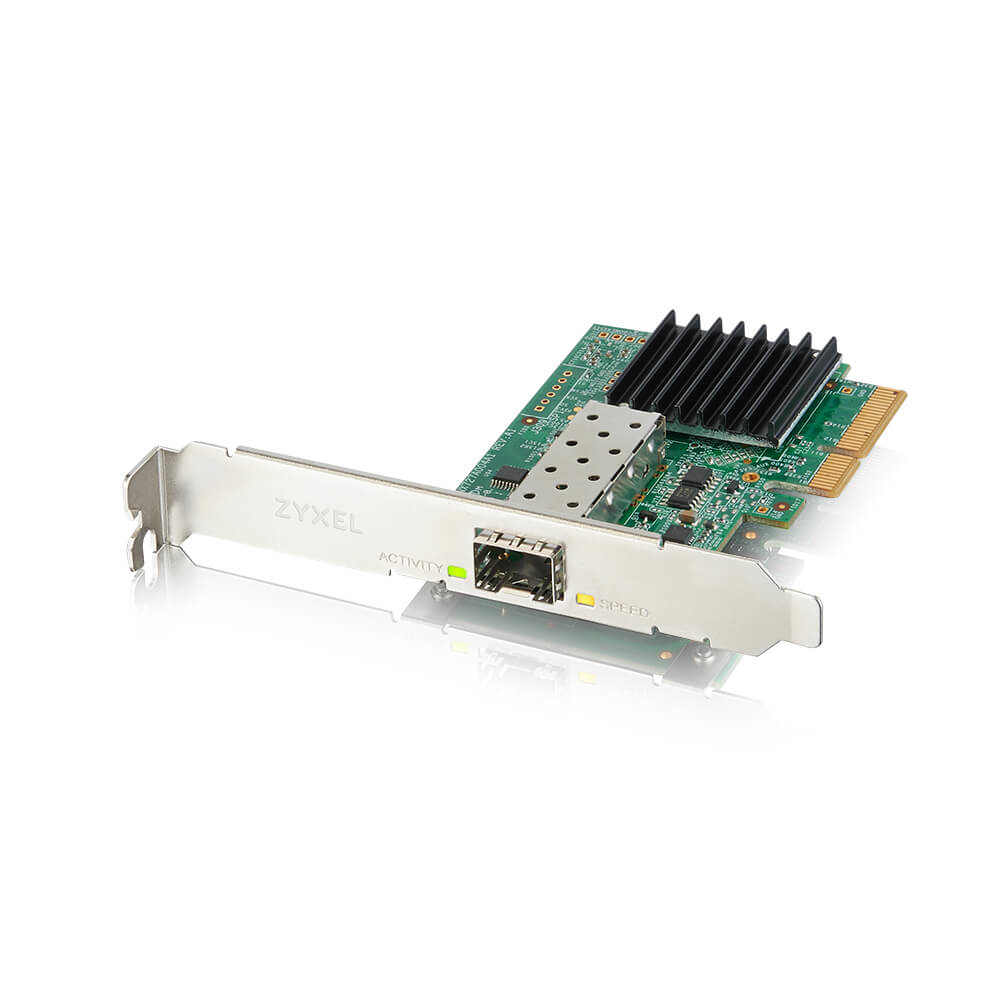

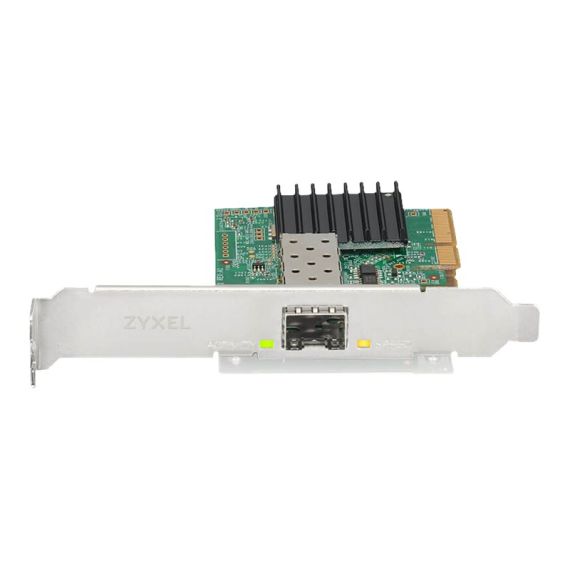

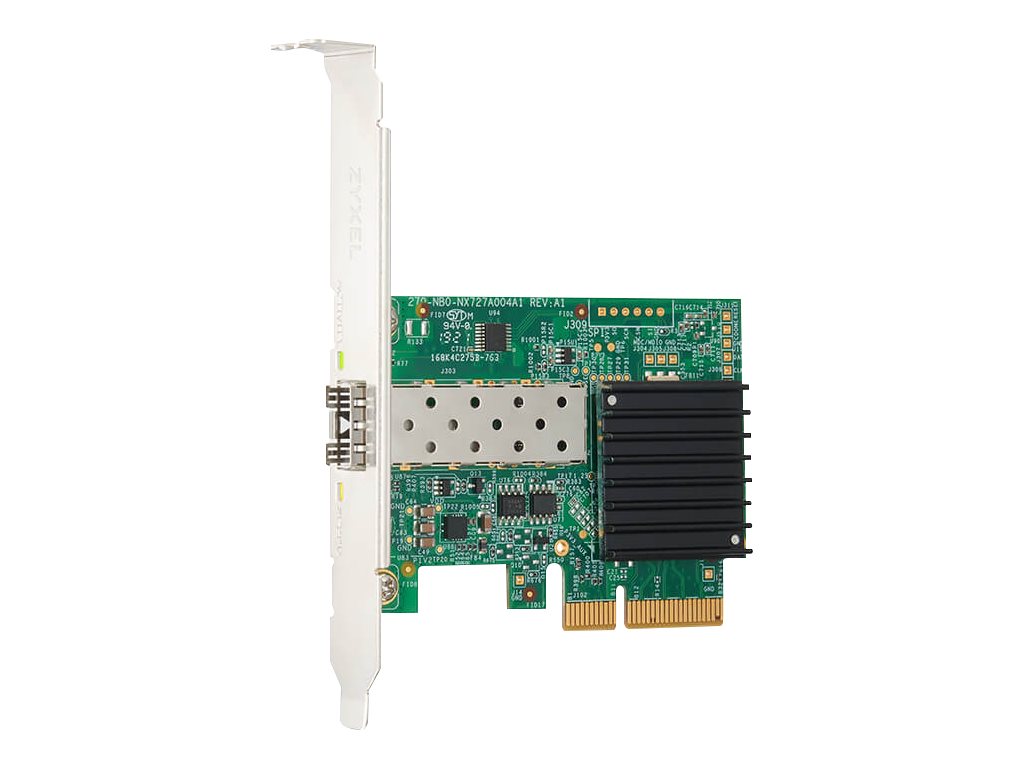

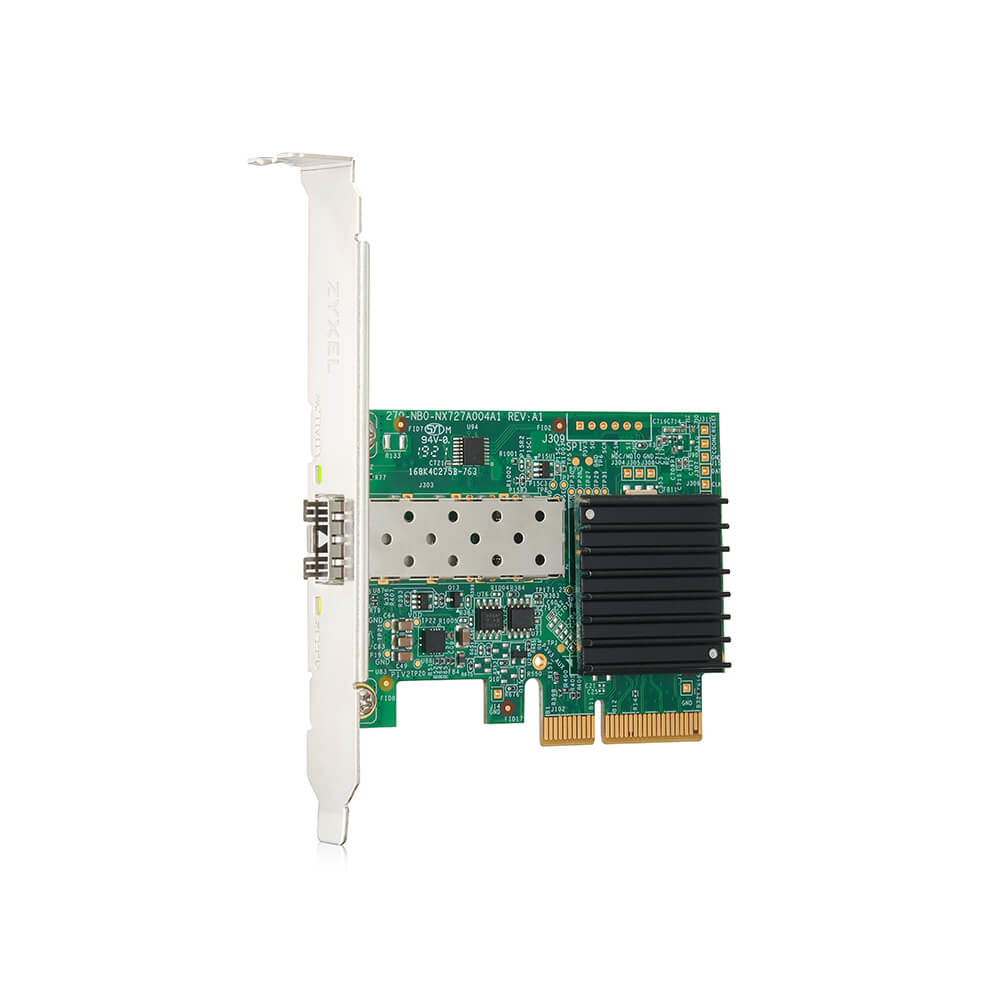

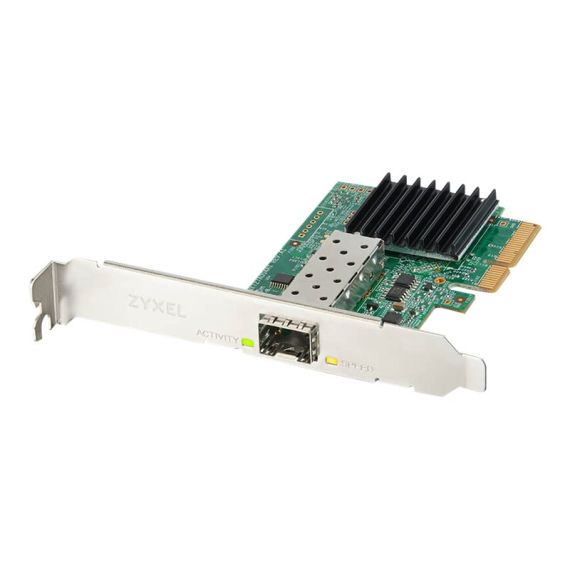

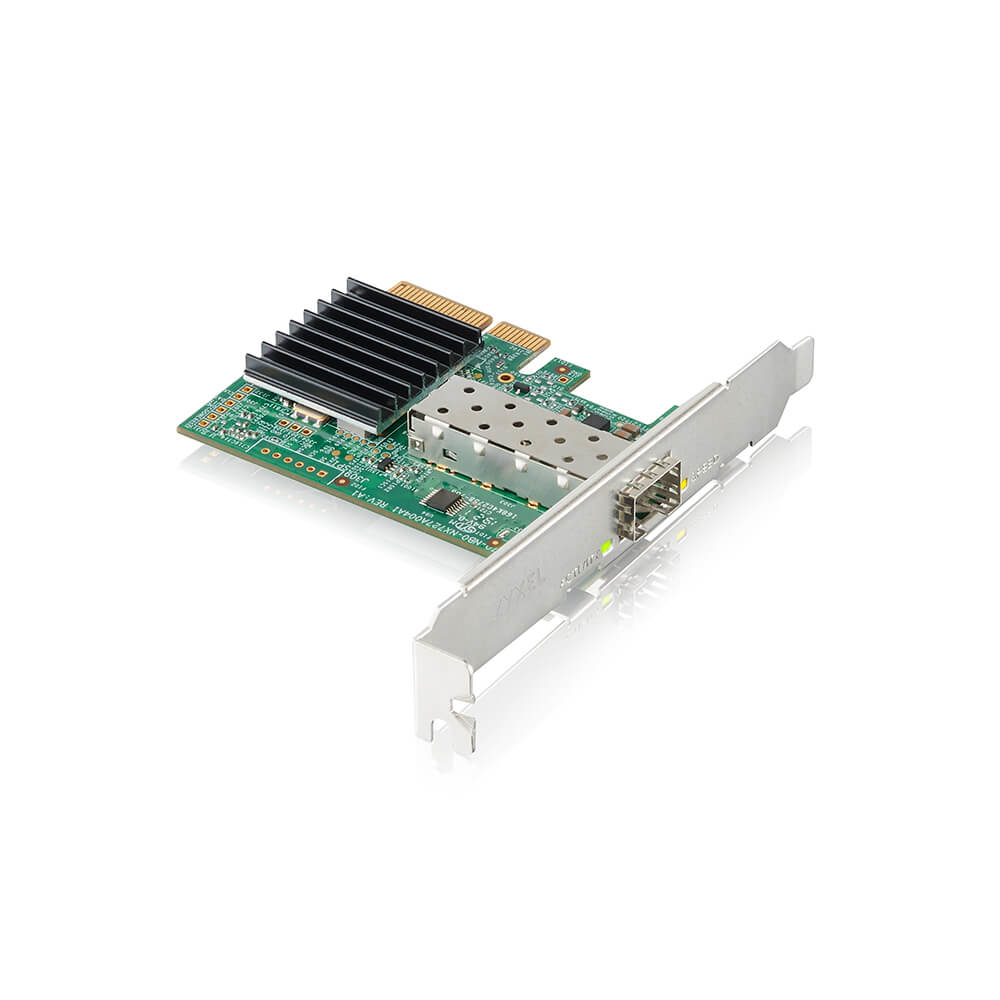

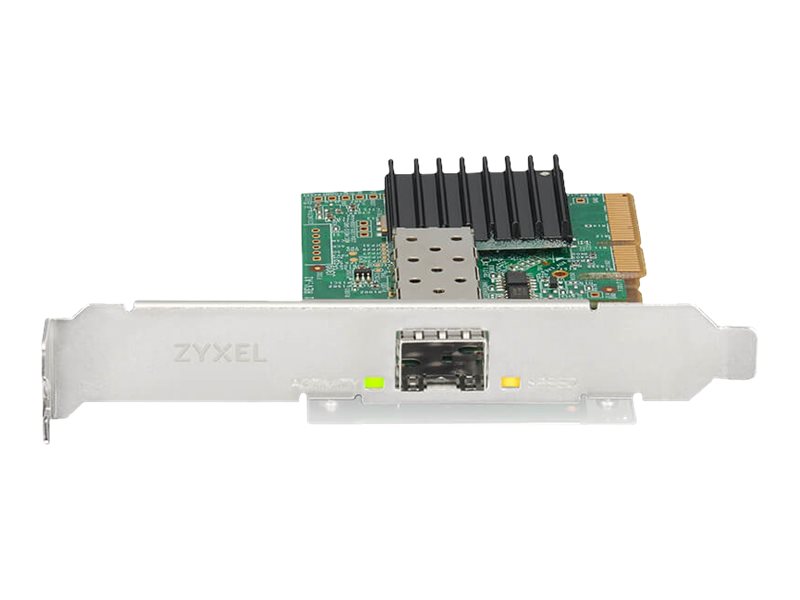

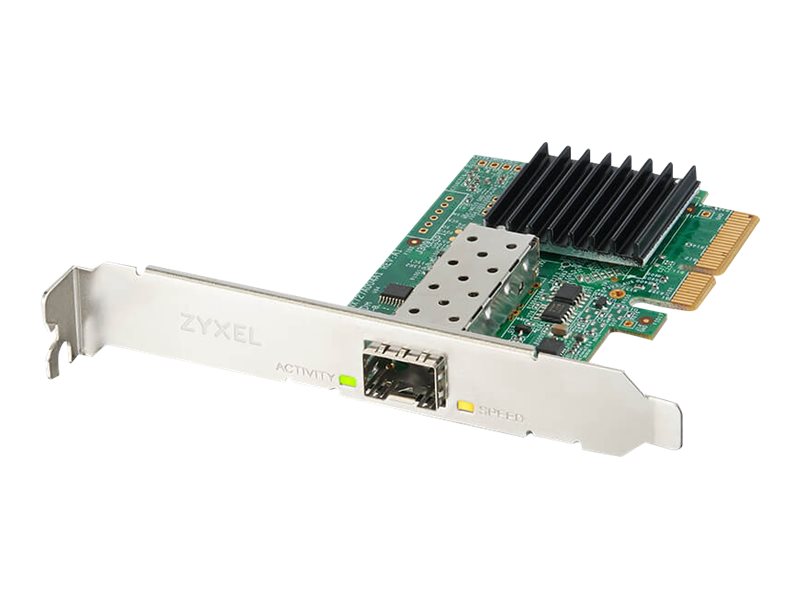

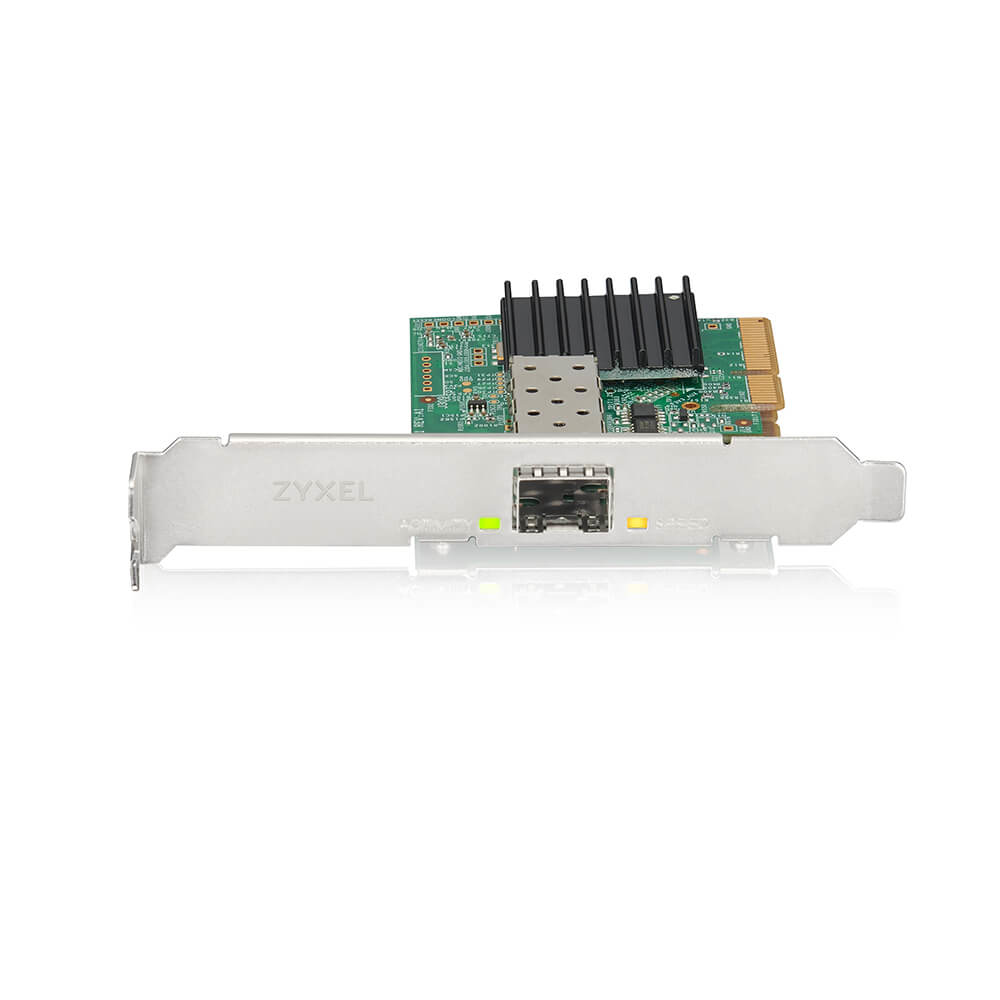

Zyxel XGN100F - Network adapter - PCIe 3.0 x4 low profile - 10Gb Ethernet SFP+ | XGN100F-ZZ0101F
Product Features
- Hyper-fast 10 Gbps networking
10x faster than a standard gigabit Ethernet which can easily handle the bandwidth of demanding tasks such as large file transfers, 8K streaming, and low-latency gaming at home/SOHO/SMB environments. - Faster and longer distance with fiber optics
XGN100F delivers fast and reliable 10Gbps network access at longer distances than traditional copper based networks. Designed specifically for prosumers who require high-speed transmission from the home or the office. - Cooling heatsink and PCI-E 3.0 for intensive tasks
The efficient heatsink keeps XGN100F cool during operation. The PCI-E Gen-3 interface optimizes the line rate performance with your computer system, along with easy installation for a high-performance network. - Quality of Service (QoS) prioritizing bandwidth
Built-in QoS technology automatically prioritizes bandwidth for the most important applications. Download large files while retaining a smooth web surfing, gaming, and streaming experience on all your connected devices.
Special Fetures
- Hyper-fast 10Gbps networking
- Faster and longer distance with SFP+
- QoS for better traffic control
- PCI-E 3.0 for faster transfer speed
- Easy 10G network upgrade
Product Specification
Device Type | Network adapter |
Form Factor | Plug-in card - low profile |
Interface (Bus) Type | PCI Express 3.0 x4 |
Networking | |
Ports | 10Gb Ethernet SFP+ |
Connectivity Technology | Wired |
Cabling Type | Ethernet 10GBase-X |
Data Link Protocol | 10 Gigabit Ethernet |
Data Transfer Rate | 10 Gbps |
Status Indicators | Link/activity, speed |
Features | QoS, Jumbo Frames support (up to 16000 bytes), VLAN Tagging |
Compliant Standards | IEEE 802.1Q, IEEE 802.3ae |
Expansion / Connectivity | |
Interfaces | 1 x 10GBase-X - SFP+ |
Miscellaneous | |
Included Accessories | Low-profile bracket |
Compliant Standards | EMC, EAC, FCC, BSMI Class B |
Software / System Requirements | |
OS Required | Linux Kernel 3.10, Linux Kernel 3.12, Linux Kernel 3.20, Linux Kernel 4.2, Linux Kernel 4.4, Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Microsoft Windows Server 2012 |
Dimensions & Weight | |
Width | 8.2 cm |
Depth | 6.2 cm |
Height | 1.8 cm |
Weight | 49 g |
Dimensions & Weight (Shipping) | |
Shipping Width | 17 cm |
Shipping Depth | 13.7 cm |
Shipping Height | 3 cm |
Shipping Weight | 149 g |
Environmental Parameters | |
Min Operating Temperature | 0 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 0 - 90% (non-condensing) |
