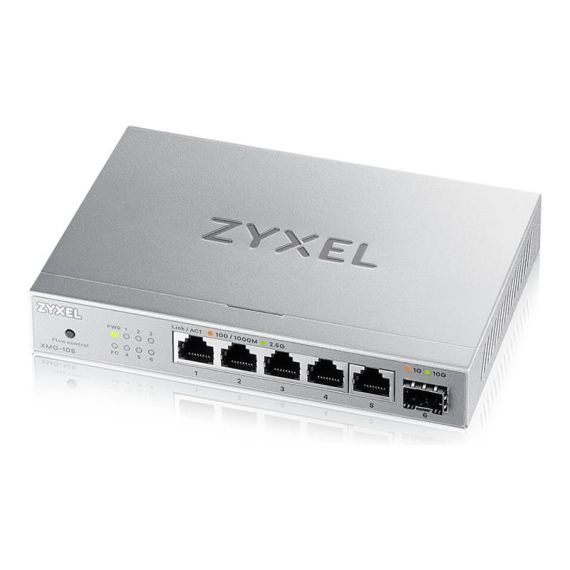

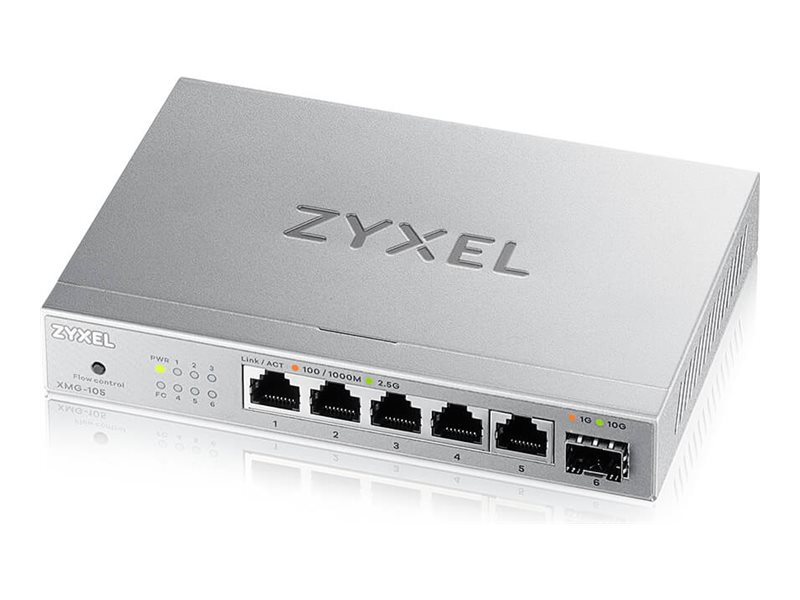

Zyxel XMG-100 Series XMG-105 - Switch - unmanaged - 5 x 100/1000/2.5G + 1 x Gigabit SFP / 10 Gigabit SFP+ - desktop, wall-mountable | XMG-105-ZZ0101F

Product Features
- Reliable performance under various conditions
With a wide temperature range from -20°C to 40°C and a humidity operating range of 10% to 95%, the Zyxel XMG-105 switch remains reliable across different environments, ensuring consistent connectivity. - Versatile installation options
The Zyxel XMG-105 can be easily installed on a desktop or mounted on a wall, providing flexibility in placement to fit different spaces and requirements. - Efficient data handling capabilities
Featuring a packet buffer size of 1 MB and a switching capacity of 45 Gbps, the Zyxel XMG-105 is designed to efficiently manage data traffic for a seamless networking experience. - Advanced connectivity features
The switch includes auto-uplink technology, allowing for straightforward connections, and loop detection which enhances network integrity by preventing potential issues. - Quiet operation with fanless design
The fanless design of the Zyxel XMG-105 ensures silent operation, making it an ideal choice for environments where noise reduction is a priority, such as office spaces.
Special Fetures
- 1 MB packet buffer size for improved performance
- Operates in extreme temperatures from -20°C to 40°C
- Fanless design for quiet operation
- Supports 2.5GBase-T and 10Gbit LAN interfaces
- Compliant with multiple standards for versatility
Product Specification
Device Type | Switch - 5 ports |
Enclosure Type | Desktop, wall-mountable |
Subtype | 2.5 Gigabit Ethernet |
Ports | 5 x 100/1000/2.5G + 1 x Gigabit SFP / 10 Gigabit SFP+ |
Performance | Switching capacity: 45 Gbps <br /> Forwarding rate: 33.5 Mpps |
Capacity | Packet buffer size: 1 MB |
Features | Fanless, auto-uplink (auto MDI/MDI-X), loop detection, LED status indicators |
Compliant Standards | IEEE 802.3bt, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1p, IEEE 802.3, IEEE 802.3az |
Status Indicators | Power, port status |
Expansion / Connectivity | |
Interfaces | 1 x 1/10Gbit LAN SFP+ <br /> 5 x 2.5GBase-T RJ-45 |
Power | |
Power Device | External power adapter |
Voltage Required | AC 100-240 V (50/60 Hz) |
Miscellaneous | |
MTBF | 1,255,904 hours |
Compliant Standards | Plug and Play, EAC, FCC, BSMI Class B, UKCA, CAN ICES-3(B)/NMB3(B), WEEE |
Dimensions & Weight | |
Width | 16 cm |
Depth | 11 cm |
Height | 2.6 cm |
Weight | 492 g |
Environmental Parameters | |
Min Operating Temperature | -20 °C |
Max Operating Temperature | 40 °C |
Humidity Range Operating | 10 - 95% (non-condensing) |
Min Storage Temperature | -40 °C |
Max Storage Temperature | 70 °C |
Humidity Range Storage | 5 - 95% (non-condensing) |
