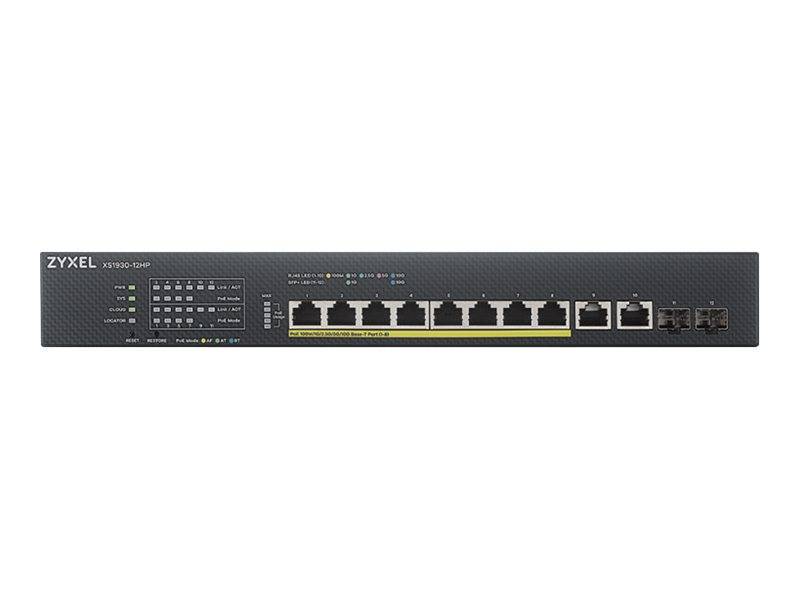

Zyxel XS1930-12HP / Switch / smart / 8 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 2 x 100/1000/2.5G/5G/10GBase-T + 2 x 10 Gigabit SFP+ / rack-mountable / PoE++ (375 W) | XS1930-12HP-ZZ0101F
Please sign in so that we can notify you about a reply
Product Features
- True backbone of Wi-Fi 6
Wi-Fi 6 needs higher speed LAN. The PoE model XS1930-12HP supports the PoE standard IEEE 802.3bt (PoE++), giving enough headroom for connections up to 8 Wi-Fi 6 (11ax) APs. - Experience the near silent operation
The built-in smart fan is designed to automatically adjust speed based on device temperature. You can barely hear the sound while the XS1930 series is operating. It is ideal for your office environment. - Smart managed switch inside and out
The XS1930 series aims to widen user experience with its unique "restore" button as well as fully loaded SMB features such as VLAN, enhanced QoS, and LAG along with IPv4/IPv6 layer 3 static route, can all be configured via its local user-friendly web interface efficiently.
Special Features
- True backbone of Wi-Fi 6
- Experience the near silent operation
- Smart managed switch inside and out
Product Specification
| Device Type | Switch - 12 ports - smart - stackable |
| Enclosure Type | Rack-mountable |
| Subtype | 10 Gigabit Ethernet |
| Ports | 8 x 100/1000/2.5G/5G/10GBase-T (PoE++) + 2 x 100/1000/2.5G/5G/10GBase-T + 2 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE++ |
| PoE Budget | 375 W |
| Performance | Switching capacity: 240 Gbps ¦ Forwarding performance: 178.5 Mpps |
| MAC Address Table Size | 16K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, policy-based routing (PBR) |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, CLI |
| Encryption Algorithm | SSL |
| Authentication Method | RADIUS, TACACS+ |
| Features | Flow control, IGMP snooping, Syslog support, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, Broadcast Storm Control, IPv6 support, IP address filtering, Multicast Storm Control, Unicast Storm Control, Weighted Fair Queuing (WFQ), ZyXEL iStacking Technology, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), MLD snooping, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, NTP server, IP-MAC binding, SNMP trap, DHCP client, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), dual firmware images, Strict Priority Queuing (SPQ), Neighbor Discovery Protocol (NDP), 2MB packet buffer, loop prevention, port isolation, Class of Service (CoS), tagged VLAN, IGMP proxy, ErrDisable Recovery, ZyXEL One Network (ZON), IGMP filtering, IGMP throttling, CPU protection, IP source guard, ARP inspection, policy based rate limiting |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3bt |
| RAM | 256 MB |
| Flash Memory | 32 MB |
| Status Indicators | Power, system, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 8 x 100/1000/2.5G/5G/10GBase-T (PoE++) RJ-45 60 W ¦ 2 x 100/1000/2.5G/5G/10GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ |
| Power | Power |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 493 Watt |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| MTBF | 582,873 hours |
| Compliant Standards | BSMI, RoHS, FCC Part 15 A, LVD, EMC Class A, BSMI ENC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 33 cm |
| Depth | 23 cm |
| Height | 4.4 cm |
| Weight | 2.8 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 48.4 cm |
| Shipping Depth | 33.7 cm |
| Shipping Height | 7.9 cm |
| Shipping Weight | 4 kg |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - lifetime |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
Features - Zyxel - XS1930-12HP-ZZ0101F
General
8-Port
More Details
Product Code
B777182
EAN Code
4718937605262
Manufacturer
Zyxel
